Ultrasonic Distance Measurement System

Description

Ultrasonic Distance Measurement System Using Arduino UNO

In the realm of electronics and embedded systems, the Ultrasonic Distance Measurement System stands as an intriguing and highly educational project. Designed with simplicity and practicality in mind, this system is an excellent choice for both school students and Electrical and Electronic Engineering (EEE) final year students. By utilizing an Arduino UNO as the main microcontroller, a 9V battery for power supply, an Ultrasonic sensor (HC-SR04), and an LCD with I2C interface, this project offers a comprehensive learning experience in sensor integration, microcontroller programming, and real-time data display.

Project Overview

The Ultrasonic Distance Measurement System is a device that accurately measures the distance of an object from the sensor using ultrasonic waves. This project is not only a great tool for learning the basics of electronics and programming but also finds practical applications in various fields such as robotics, automation, and security systems.

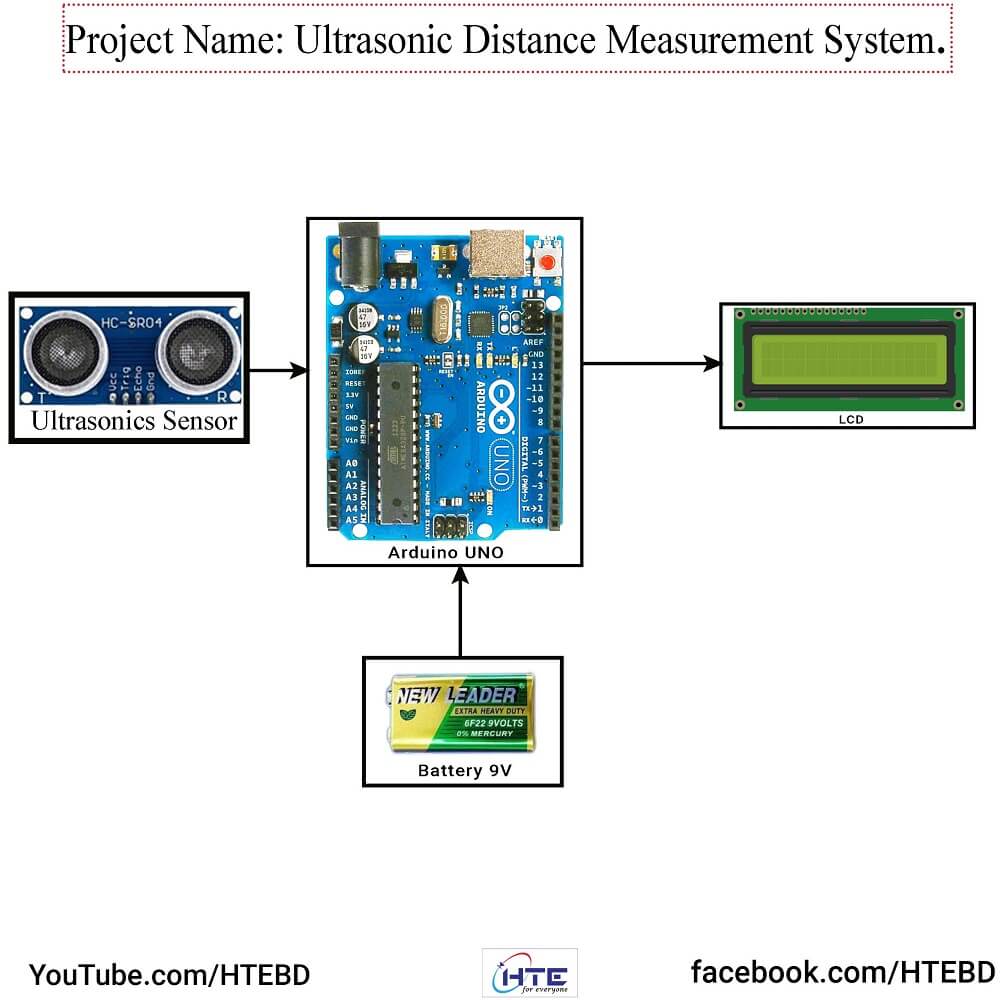

Components Used

1. Arduino UNO: The Arduino UNO serves as the brain of the system. This versatile microcontroller board is renowned for its ease of use, making it a popular choice for beginners and advanced users alike. The Arduino UNO processes the data received from the ultrasonic sensor and sends the calculated distance to the LCD display.
2. 9V Battery: The 9V battery provides the necessary power to the Arduino UNO and other components. This portable power source ensures that the system can be easily carried and operated without the need for a continuous power supply.
3. Ultrasonic Sensor (HC-SR04): The HC-SR04 is the key component responsible for measuring distance. It works by emitting an ultrasonic wave and then measuring the time it takes for the wave to bounce back after hitting an object. The Arduino UNO then uses this time difference to calculate the distance.
4. LCD with I2C Interface: The LCD display, coupled with an I2C interface, is used to show the measured distance in real-time. The I2C interface simplifies the wiring and coding process, making the project more straightforward and accessible for students.

How the System Works

The operation of the Ultrasonic Distance Measurement System can be broken down into the following steps:

1. Initialization: When the system is powered on, the Arduino UNO initializes the ultrasonic sensor and the LCD display. The I2C interface is used to communicate with the LCD, reducing the number of pins required and simplifying the setup.
2. Measurement Process: The ultrasonic sensor continuously emits ultrasonic waves at a frequency of 40 kHz. When these waves encounter an object, they bounce back to the sensor. The sensor then calculates the time taken for the waves to return and sends this data to the Arduino UNO.
3. Distance Calculation: The Arduino UNO processes the time data received from the sensor to calculate the distance between the sensor and the object. The formula used for this calculation is:Distance=Time×Speed of Sound2text{Distance} = frac{text{Time} times text{Speed of Sound}}{2}Distance=2Time×Speed of Sound​This distance is then displayed on the LCD in centimeters (cm).
4. Display Output: The calculated distance is updated on the LCD in real-time, allowing the user to see the distance as it changes. The use of the I2C interface ensures that the display is updated quickly and accurately.

Educational Value

The Ultrasonic Distance Measurement System is an ideal project for educational purposes. For school students, it introduces fundamental concepts of electronics, programming, and sensor technology in a hands-on and engaging way. It also helps them develop problem-solving skills and logical thinking as they assemble and program the system. For EEE final year students, this project offers deeper insights into microcontroller interfacing, real-time data processing, and the practical application of ultrasonic sensors. It serves as a solid foundation for more advanced projects and can be expanded with additional features such as data logging, wireless communication, or integration with other sensors.

Applications

The knowledge gained from building this system can be applied to a wide range of real-world scenarios. Some potential applications include:

• Robotics: Ultrasonic sensors are commonly used in robots for obstacle detection and avoidance.
• Automation: This system can be adapted for use in automated parking systems, where accurate distance measurement is crucial.
• Security: Ultrasonic distance sensors can be employed in security systems to detect intrusions or monitor restricted areas.

Conclusion

The Ultrasonic Distance Measurement System using Arduino UNO is a project that perfectly balances simplicity and educational value. Whether you are a school student eager to learn the basics of electronics or an EEE final year student looking for a solid project idea, this system offers an enriching experience. With its practical applications and ease of construction, it’s a project that not only educates but also inspires further exploration into the fascinating world of embedded systems.
