Description
Looking for a reliable DIP 6 Position Switch for your next electronics project? At HTE Bangladesh, we bring you high-quality electronic components that ensure seamless circuit configuration and programming. Apnader prototyping ar DIY project-gulor jonno ei 6-position DIP switch ti ekdom perfect.

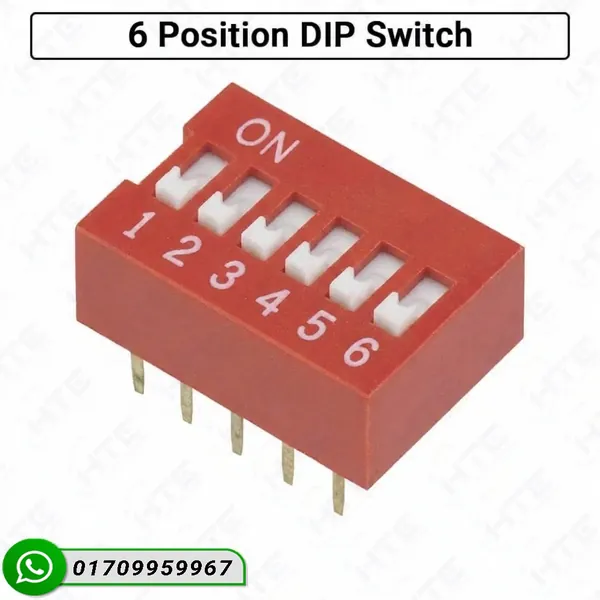

The DIP 6 Position Switch is a standard dual in-line package switch designed to be mounted on printed circuit boards (PCBs) along with other electronic components. It is commonly used to customize the behavior of an electronic device for specific applications. Compared to surface-mount options, this through-hole/standard slide DIP switch offers secure mechanical mounting and durability for breadboard or PCB usage.
Features & Benefits
- Compact 6-position layout for versatile multi-channel configuration.
- Low contact resistance and high reliability for signal switching.
- Standard pin pitch compatible with breadboards and standard PCBs.
- Durable construction designed for repeated actuation.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | DIP Switch (Slide Type) |
| Number of Positions | 6 Positions (6-P) |
| Contact Rating | 24VDC, 25mA (switching); 100mA (non-switching) |
| Contact Resistance | 50 mΩ max. |
| Insulation Resistance | 100 MΩ min. at 500VDC |
| Operating Force | 1000gf max. |
| Material | High-temperature thermoplastic housing with gold-plated contacts |
| Operating Temperature | -20°C to +70°C |
Additional Information
- Weight: 5g
- Dimensions: 1.5 cm x 1.0 cm x 0.8 cm
- Package Includes: 1 x DIP 6 Position Switch
Applications
- PCB prototyping and testing boards
- Arduino and microcontroller shield configuration
- Industrial control equipment setting addresses
- Security systems and appliance controllers
Why Buy from HTE Bangladesh?
At HTE Bangladesh, we ensure the best quality components at the best price in Bangladesh. Apni jodi shothik maner electronic parts khujen, tobe amader theke easily order korte paren. Fast delivery ar 100% genuine products-er jonno HTEBD-er sathe thakun!
Frequently Asked Questions (FAQ)
1. What is the main purpose of a DIP 6 Position Switch?
A DIP 6 Position Switch is used to enable users to customize the behavior of an electronic device or PCB by turning specific circuits on or off manually.
2. Can I use this DIP switch directly on a breadboard?
Yes, this DIP 6 Position Switch features standard pin spacing that fits securely onto standard solderless breadboards as well as perfboards and PCBs.
3. What is the current rating for this switch?
The contact rating is 25mA at 24VDC for switching operations, and up to 100mA for non-switching applications.
