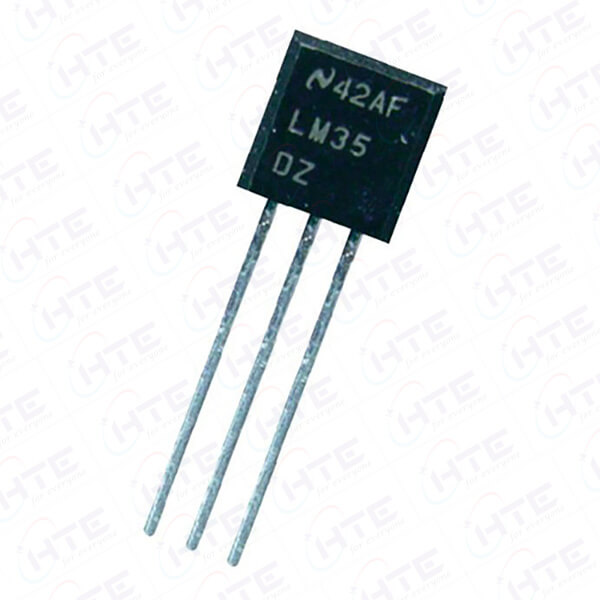

LM35 Temperature Sensor for Arduino

1. Introduction to LM35 Temperature Sensor for Arduino
2. Features of the LM35 Temperature Sensor
3. Applications of the LM35 Temperature Sensor
4. Benefits of Using LM35 with Arduino
5. How to Use LM35 Temperature Sensor with Arduino
6. Internal Links to Related Products
7. Conclusion

Introduction to LM35 Temperature Sensor for Arduino

The LM35 Temperature Sensor for Arduino is a highly popular and widely used temperature sensor in electronics and Arduino-based projects. It is known for its precision, ease of use, and reliability, making it the perfect choice for hobbyists and engineers alike. This sensor allows you to measure temperatures in degrees Celsius and can easily be integrated into your Arduino projects. Whether you’re building a weather station, a home automation system, or a temperature monitoring project, the LM35 is a solid choice.

Features of the LM35 Temperature Sensor

The LM35 Temperature Sensor for Arduino comes with a range of features that make it stand out:

• High Accuracy: The LM35 provides accurate temperature readings with a margin of error as low as ±0.5°C.
• Wide Temperature Range: It can measure temperatures ranging from -55°C to 150°C.
• Low Self-Heating: This sensor has a low self-heating property, which helps in delivering precise readings.
• Analog Output: The sensor outputs an analog signal proportional to the temperature in degrees Celsius, making it easy to read data with Arduino.
• Calibrated Output: The LM35 is pre-calibrated for ease of use, ensuring consistent and reliable measurements.

Applications of the LM35 Temperature Sensor

The LM35 Temperature Sensor for Arduino can be used in numerous projects and applications, including:

• Weather Monitoring Systems: Use the LM35 to monitor and display outdoor temperatures in real-time.
• Home Automation: Integrate the LM35 with Arduino for smart home projects to control heating or cooling systems.
• Industrial Temperature Monitoring: The sensor is reliable enough for temperature monitoring in industrial environments.
• Medical Devices: LM35 can be integrated into medical monitoring devices where accurate temperature measurements are critical.
• Automotive Applications: Used in cars to monitor and regulate engine temperature.

Benefits of Using LM35 with Arduino

The LM35 Temperature Sensor for Arduino offers several benefits when integrated into Arduino projects:

1. Ease of Integration: The sensor is highly compatible with Arduino and requires no additional calibration.
2. Low Power Consumption: It operates efficiently with minimal power, making it ideal for battery-powered projects.
3. Accurate and Reliable: The sensor’s accuracy and low self-heating properties ensure dependable results, even in long-term use.
4. Cost-Effective: The LM35 is affordable, offering a great value for anyone looking to measure temperature accurately without breaking the bank.

How to Use LM35 Temperature Sensor with Arduino

Integrating the LM35 Temperature Sensor for Arduino into your projects is simple. Follow these steps to get started:

1. Components Required:
   • LM35 Temperature Sensor
   • Arduino Board
   • Breadboard and jumper wires
   • USB cable for power
2. Wiring:
   • Connect the middle pin of the LM35 to an analog input pin on the Arduino.
   • Connect one of the outer pins to the ground (GND) and the other outer pin to the 5V power supply of the Arduino.
3. Arduino Code: Here’s a simple code snippet to read the temperature using the LM35:

const int tempPin = A0;

void setup()

{

Serial.begin(9600);

}

void loop()

{

int reading = analogRead(tempPin);

float voltage = reading * 5.0 / 1024.0;

float temperature = voltage * 100;

Serial.print(“Temperature: “);

Serial.print(temperature);

Serial.println(” °C”);

delay(1000); }

4. Upload the Code: After connecting the sensor, upload the above code to your Arduino. The serial monitor will display the temperature readings in real-time.

Internal Links to Related Products

• Soil Moisture Sensor for Arduino
• HC-SR04 Ultrasonic Sensor Mount
• I2C LCD Display 16×2 Equivalent

Conclusion

The LM35 Temperature Sensor for Arduino is an excellent tool for anyone looking to measure temperature in a wide range of projects. Its accuracy, ease of use, and affordable price make it a go-to choice for DIY enthusiasts and professionals. Whether you’re developing home automation systems or environmental monitoring solutions, this sensor provides the data you need with precision and reliability.
