IoT-Based Smart Light System
The “IoT-Based Smart Light System” is an innovative project designed to automate lighting control using modern IoT technology. This project demonstrates how to efficiently manage lighting systems in homes or offices through a mobile application, enabling remote operation and energy conservation. Ideal for EEE final-year students, the project provides insights into the integration of hardware and software for a real-world IoT application.
- Overview of IoT-Based Smart Light System
- Components Required
- System Architecture and Working
- Step-by-Step Implementation
- Advantages of the Smart Light System
- Applications of the System
- Conclusion
Overview of IoT-Based Smart Light System
The IoT-Based Smart Light System is a cutting-edge solution designed to provide automated control over lighting systems. By leveraging the ESP32 microcontroller and the Blynk mobile application, this system allows users to remotely switch lights on and off through a smartphone. This project promotes energy efficiency, convenience, and smart home automation, making it a popular choice for final-year electronics and electrical engineering projects.
Components Required
To build the IoT-Based Smart Light System, the following components are essential:
- ESP32 Microcontroller: The brain of the system, used for wireless communication and control.
- 1-Channel Relay Module: Acts as a switch to control the light.
- Light Bulb: Represents the load in the system.
- Power Supply: Supplies power to the ESP32 and relay module.
- Blynk Mobile Application: Provides a user-friendly interface for remote control.
- Jumper Wires and Breadboard: For connections and prototyping.
For a detailed guide on ESP32, refer to ESP32 Documentation.

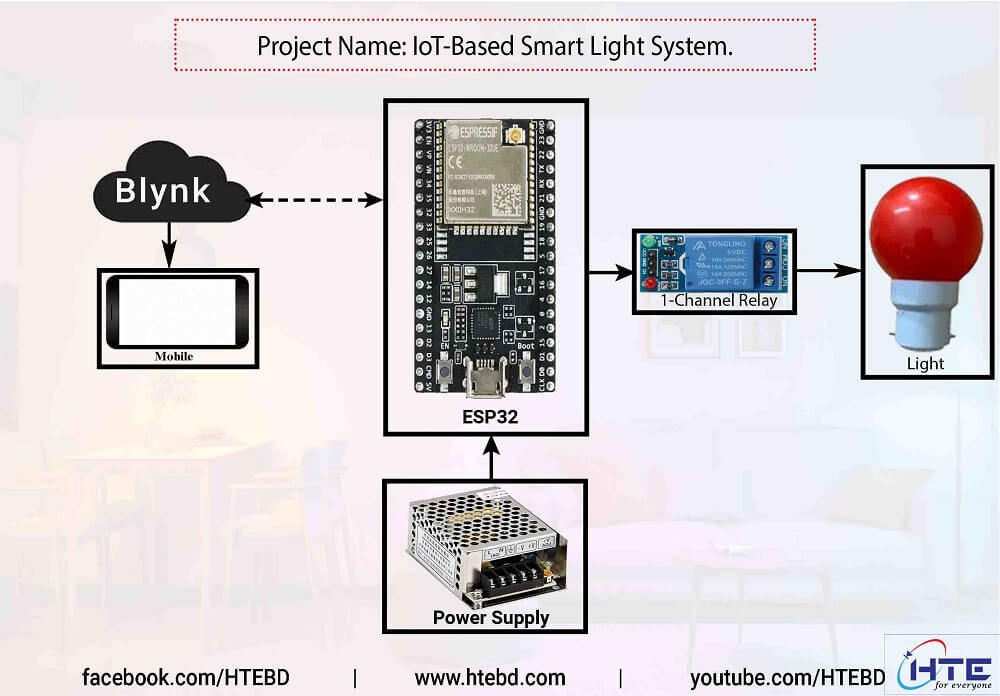

System Architecture and Working {#system-architecture}
The system architecture consists of three primary components:
- Hardware Setup: The ESP32 microcontroller is connected to a 1-channel relay module, which controls the light bulb. The power supply ensures continuous operation.
- Software Integration: The ESP32 communicates with the Blynk cloud server via Wi-Fi. Users can send commands through the Blynk mobile app to control the light.
- Cloud Connectivity: The Blynk platform enables real-time communication between the smartphone app and the ESP32.
Working Principle
- The user sends a command from the Blynk app.
- The command is transmitted to the ESP32 via Wi-Fi.
- The ESP32 triggers the relay module to control the light.
Step-by-Step Implementation {#implementation}
Step 1: Hardware Connections
- Connect the VCC and GND pins of the relay module to the 3.3V and GND pins of the ESP32.
- Attach the IN1 pin of the relay module to a digital GPIO pin on the ESP32 (e.g., GPIO 23).
- Connect the light bulb to the relay module’s output terminals.
- Power the ESP32 using a USB cable or external power supply.
Step 2: Setting Up the Blynk App
- Download the Blynk App from the Google Play Store or Apple App Store.
- Create a new project and select ESP32 as the device.
- Add a button widget to control the light.
- Configure the button to send commands to the ESP32.
Step 3: Programming the ESP32
- Install the Arduino IDE and add the ESP32 board library.
- Write a program to connect the ESP32 to Wi-Fi and communicate with the Blynk server.
- Upload the program to the ESP32.
#include <WiFi.h>
#include <BlynkSimpleEsp32.h>
char auth[] = "YourAuthToken";
char ssid[] = "YourWiFiSSID";
char pass[] = "YourWiFiPassword";
void setup() {
Blynk.begin(auth, ssid, pass);
pinMode(23, OUTPUT);
}
void loop() {
Blynk.run();
}
Step 4: Testing the System
- Power the system and ensure the ESP32 connects to Wi-Fi.
- Open the Blynk app and toggle the button widget.
- Observe the light bulb switching on and off.
Advantages of the Smart Light System {#advantages}
- Energy Efficiency: Reduces unnecessary power consumption by automating lighting control.
- Convenience: Provides remote access to the lighting system via a smartphone.
- Scalability: Can be extended to control multiple devices.
- Cost-Effective: Uses affordable components and requires minimal maintenance.
Applications of the System {#applications}
- Home Automation: Enhances the functionality of smart homes.
- Office Spaces: Optimizes energy usage in offices.
- Educational Projects: Serves as an excellent learning tool for IoT concepts.
- Energy Management: Helps in monitoring and reducing electricity bills.
Conclusion
The IoT-Based Smart Light System is an exemplary project that showcases the potential of IoT in automating everyday tasks. By combining hardware like ESP32 and relay modules with the user-friendly Blynk application, this system not only simplifies lighting control but also contributes to energy efficiency. This project is a perfect choice for EEE final-year students aiming to explore IoT and smart home automation.
