Description

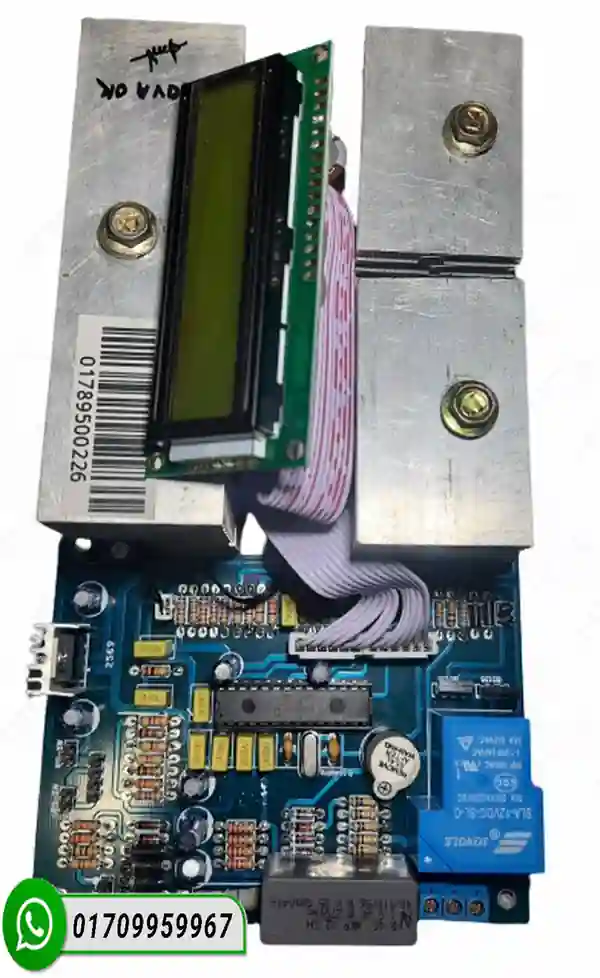

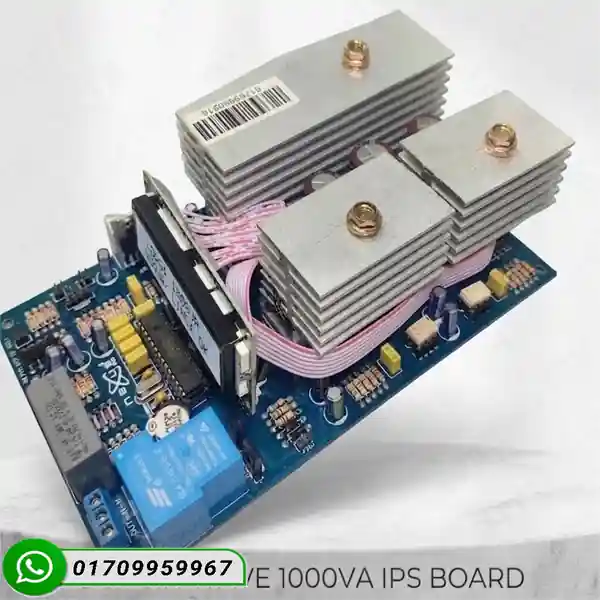

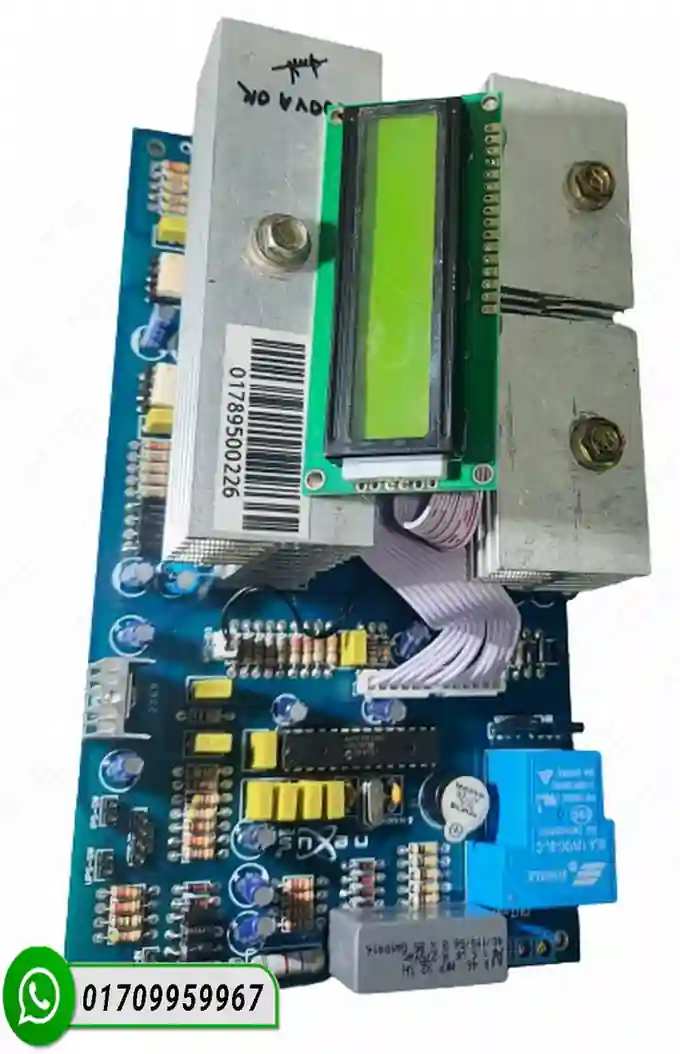

Looking for a reliable power supply solution? The DSP Sinewave 1000VA IPS Circuit Board is engineered to deliver exceptional performance for your home and office power backup needs. Apnar basar ba office-er jonno ekti durable ebong high-performance IPS motherboard khujle, ei product-ti hobe apnar shera choice. Designed with advanced DSP technology and a double-layer PCB structure, this 800W pure sine wave inverter board ensures stable, noise-free 220V power output, protecting your sensitive appliances like refrigerators, computers, and ceiling fans.
Key Features & Benefits
- Pure Sine Wave Output: Delivers clean 220V AC power that prevents humming noise and extends the lifespan of connected electrical appliances.
- Robust Power Handling: Features a genuine 1000VA / 800W capacity driven by 16 units of high-efficiency IRF3205 MOSFETs.
- Advanced Protection: Built-in low-cut (160V) and high-cut (290V) voltage windows safeguard your electronics from unpredictable grid fluctuations.
- Smart Cooling & Display: Includes dedicated headers for smart DC cooling fans and clear LCD display integration for real-time status monitoring.
- TLP Driver Logic: Ensures precise gate-driving performance and high-speed switching for maximum energy efficiency.
Technical Specifications
| Specification Parameter | Details |
|---|---|
| Product Type | DSP Sinewave Inverter Motherboard (Circuit Board) |
| Board Structure | Double-Layer PCB |
| Technology | DSP Microcontroller Pure Sine Wave |
| Power Rating | 1000 VA / 800 Watts |
| Output Voltage & Frequency | 220V AC ± 5%, 50 Hz |
| Input Protection Window | Low Cut @ 160V, High Cut @ 290V |
| Driver Type | TLP Driver Logic (TLP250/ TLP152) |
| MOSFET Configuration | 16 Pcs IRF3205 |
| Indicators & Alarms | LCD Display Interface & Audio Buzzer (Overload/Low Battery) |
| Cooling Support | Logic Header for Smart DC Cooling Fan |
Additional Information & Package
- Weight: Approximately 650g (packaged)
- Dimensions: Standard form factor designed to fit universal 1000VA IPS cabinets
- Package Includes: 1 x DSP Sinewave Double Layer 1000VA IPS Circuit Board (800W)
Applications
The DSP Sinewave 1000VA IPS Circuit Board is ideally suited for assembling or repairing custom home IPS systems, office backup units, and solar inverter setups requiring a stable 800W load capacity.
Why Choose HTE BD?
Compared to generic square wave circuit boards, the DSP Sinewave 1000VA IPS Circuit Board is better suited for modern sensitive electronics because its pure sine wave output mimics utility grid power safely. Ajkei order korun HTE BD theke ebong pan original product-er shathe best customer support!
Frequently Asked Questions (FAQ)
Q: What is the exact price of the DSP Sinewave 1000VA IPS Circuit Board in Bangladesh?
A: The price of the DSP Sinewave 1000VA IPS Circuit Board in Bangladesh varies based on stock and market conditions. You can check the current updated price directly on the HTE Bangladesh website (www.htebd.com).
Q: Can this circuit board run a refrigerator or computer?
A: Yes, because the DSP Sinewave 1000VA IPS Circuit Board provides an 800W pure sine wave output, it safely runs sensitive inductive and digital loads like refrigerators, Wi-Fi routers, and desktop computers without humming or damage.
Q: How many MOSFETs does this motherboard use?
A: The DSP Sinewave 1000VA IPS Circuit Board utilizes 16 pieces of IRLB4132 MOSFETs to ensure stable current distribution and high thermal efficiency under full load.
