Reliable 100W 24V LED Driver Power Supply Transformer for LED Lighting
✅ Table of Contents:
📌 Overview

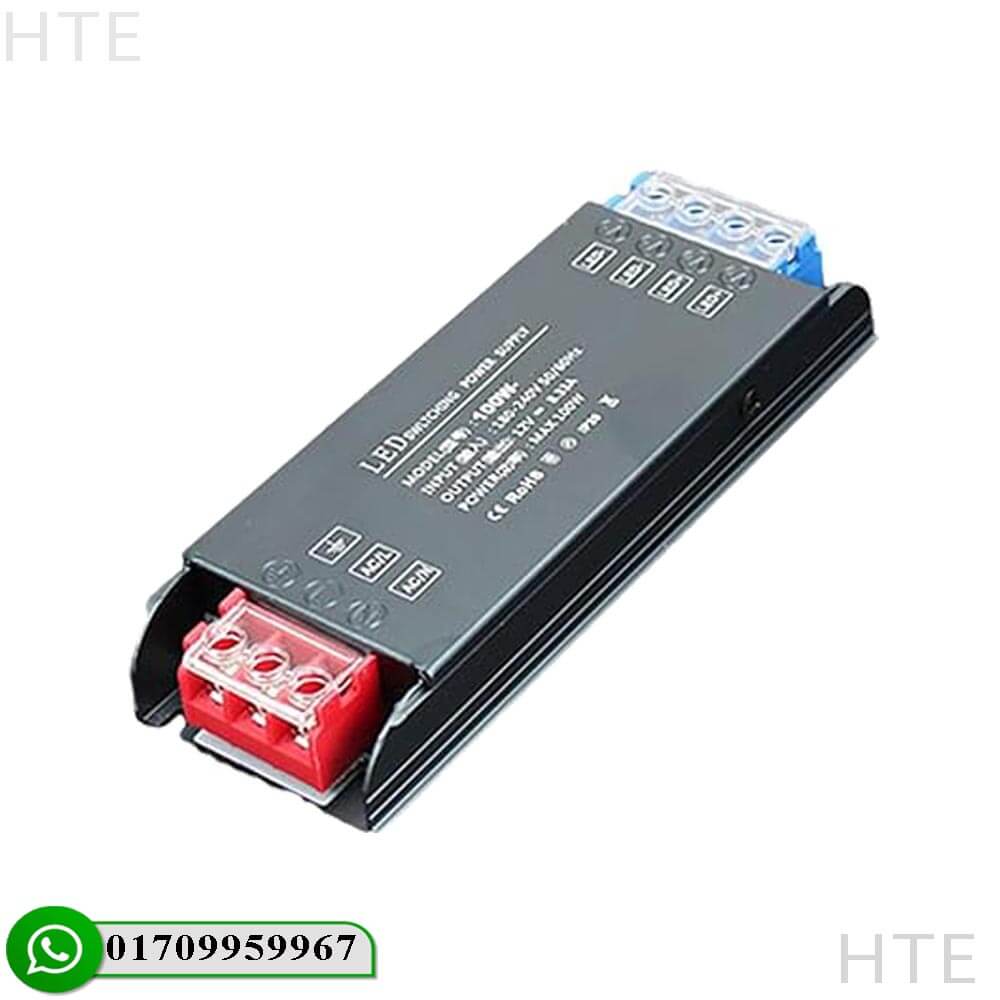

The 100W 24V LED Driver Power Supply Transformer is engineered to deliver consistent, silent, and energy-efficient power for a wide range of LED applications. This ultra-slim, compact transformer is a reliable solution for powering 24V LED strip lights, cabinet lights, signage, and other low-voltage lighting setups. Whether you’re installing lighting for commercial or home use, this power supply guarantees safe operation and longevity.
⚙️ Key Features
🔇 Silent Operation

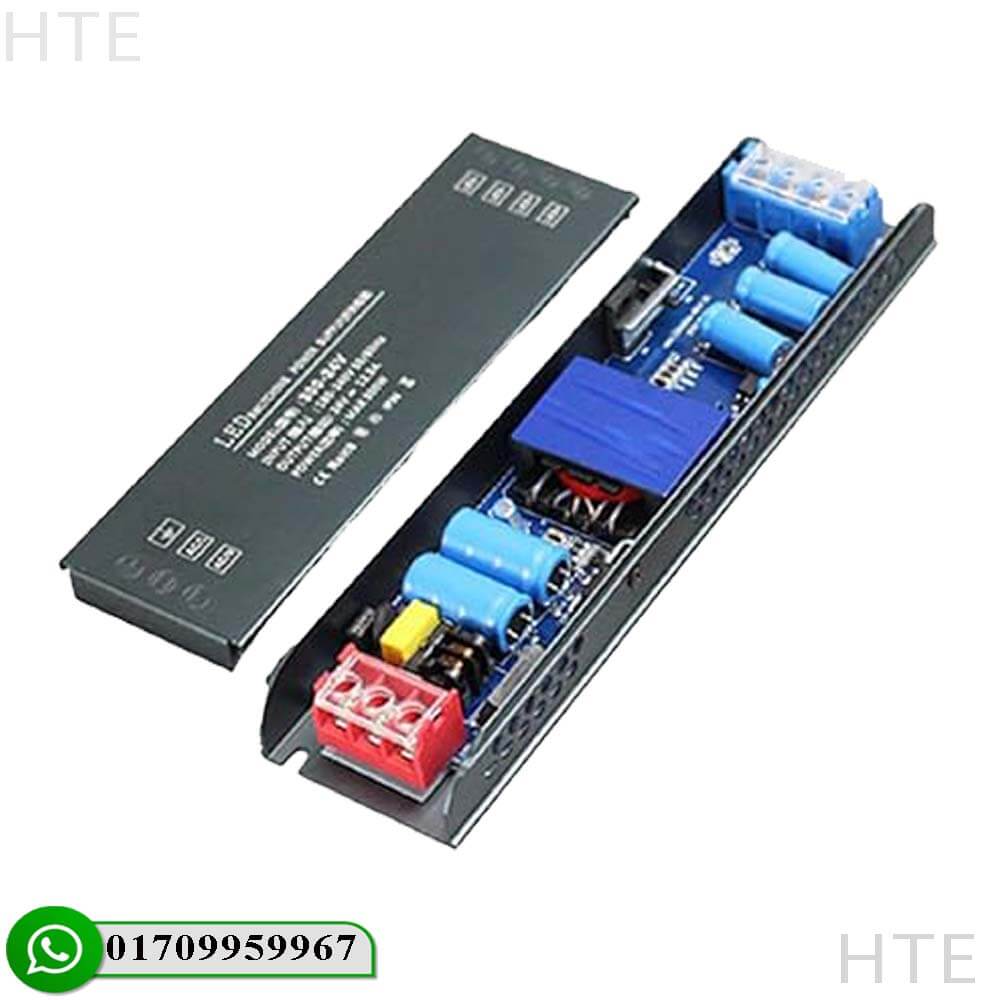

This LED transformer features a fanless design with an aluminum body and honeycomb ventilation, allowing silent operation with efficient heat dissipation.
🛡️ Multiple Safety Protections
Built-in safety mechanisms offer over-voltage, over-current, short-circuit, and overheat protection, making it one of the safest transformers on the market.
📏 Slim & Space-Saving
At only 23mm thickness, the driver is perfect for tight installation spaces, especially behind walls or under cabinets.
⚡ High Efficiency
Convert 220V AC input into a stable 24V DC output at 4.16A, ideal for sensitive LED systems.
📐 Product Specifications
-
Input Voltage: 180-240V AC, 50/60Hz
-
Output Voltage: 24V DC
-
Current Output: 4.16 Amps
-
Max Power: 100W
-

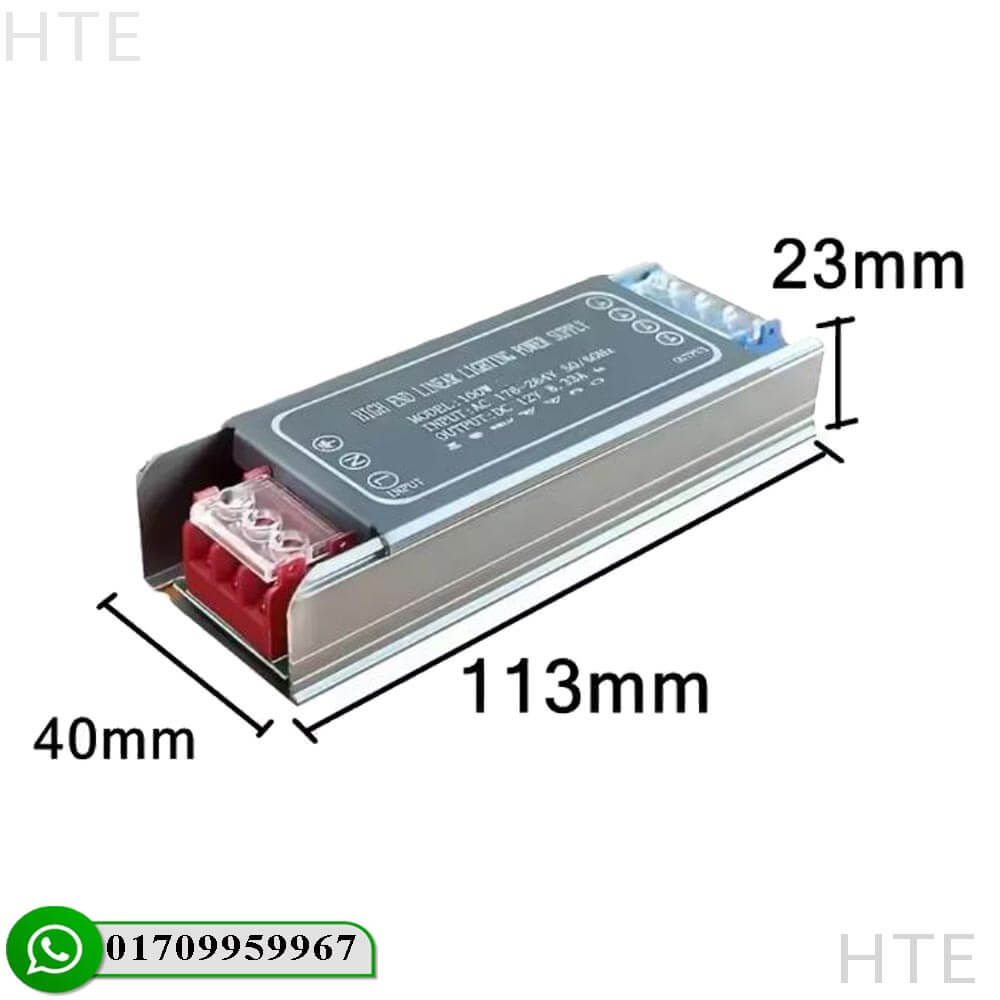

Dimensions: 113mm x 40mm x 23mm
-
Mounting Type: Wall Mount
-
Material: Aluminum
-
Certifications: CE, RoHS
💡 Why Choose This 100W 24V LED Driver?
This transformer is specifically designed to maximize the lifespan and performance of your LED lighting. Unlike bulky or noisy drivers, this compact model is optimized for both professional installations and DIY lighting projects. It’s silent, efficient, safe—and built to last.
📈 Optimized for Professional & Home Use
From under-cabinet lighting to large signage boards, the 100W 24V LED Driver Power Supply Transformer supports a wide variety of lighting setups.
🏠 Applications
-
LED strip lights
-
Cabinet lighting
-
Garden and outdoor lights
-
MR11/GU10 LED spotlights
-
24V LED signage modules
-
LED pixel tapes
-
Ceiling light panels
-
Wardrobe lighting systems
🛠️ Installation Guide
Installing the 100W 24V LED Driver Power Supply Transformer is simple:
-
Ensure the power is OFF before installation.
-
Mount the unit using the wall-mount brackets.
-
Connect the AC input wires (L and N).
-
Connect the 24V DC output wires to the LED load.
-
Turn on the power and test the lighting.
🤝 Customer Support and Warranty
We offer a 12-month replacement warranty for any manufacturing defects. Reach out through our Facebook Page or contact us directly on our website for quick assistance.
❓ FAQs
Q: Can this transformer power 5-meter LED strips?
A: Yes, as long as the total wattage is below 100W.
Q: Is this power supply waterproof?
A: No, it’s intended for indoor use only.
Q: Can I use this with dimmable LED strips?
A: It supports non-dimmable operation. For dimmable use, pair it with compatible dimmers.
