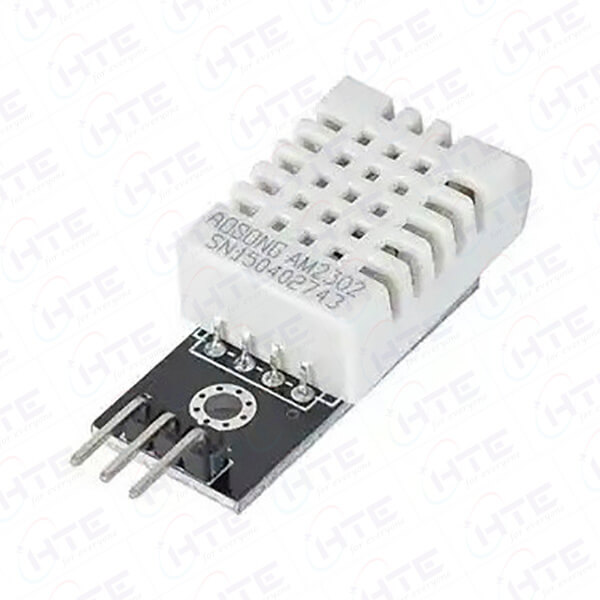

Introduction to the DHT22 AM2302 Digital Temperature Humidity Sensor
The DHT22 AM2302 Digital Temperature Humidity Sensor is a highly accurate and reliable sensor that provides digital outputs for both temperature and humidity. Whether you’re working on an Arduino project, home automation, or an IoT system, this sensor offers precise climate monitoring with minimal power consumption and easy integration. With its robust performance and exceptional stability, the DHT22 AM2302 is the go-to solution for environments that require consistent data.
Key Features and Specifications of the DHT22 AM2302 Digital Temperature Humidity Sensor
The DHT22 AM2302 Digital Temperature Humidity Sensor is packed with impressive features that make it stand out:
- Type: AM2302
- Humidity Range: 0-100% RH
- Temperature Range: -40°C to 80°C
- Humidity Accuracy: ±2% RH
- Temperature Accuracy: ±0.5°C
- Resolution: 0.1 (both temperature and humidity)
- Operating Voltage: 3 to 6 V DC
- Current Supply: 1 to 1.5 mA
- Sampling Period: 2 seconds
- Package: 4-pin
- Dimensions: 40 x 23 mm
- Weight: 4g
With a temperature range of -40°C to 80°C and humidity measurement between 0-100% RH, the DHT22 is versatile enough for various environments. Its low power consumption (only 1-1.5 mA) ensures energy efficiency, making it ideal for long-term projects.
Applications of the DHT22 AM2302 Sensor
The DHT22 AM2302 Digital Temperature Humidity Sensor is perfect for a wide range of applications:
- Home Automation: Use it in smart home setups to monitor and regulate indoor temperature and humidity levels.
- Weather Stations: Ideal for DIY weather stations, providing accurate and reliable climate data.
- IoT Projects: The sensor can be integrated into Internet of Things (IoT) devices for real-time climate monitoring and data analysis.
- Greenhouses and Agricultural Monitoring: Maintain optimal growing conditions by tracking humidity and temperature with precision.
- HVAC Systems: Ensure efficient heating, ventilation, and air conditioning performance by monitoring environmental conditions.
The DHT22 AM2302 sensor can also be used with a wide range of platforms, including Arduino, Raspberry Pi, and other microcontroller systems, making it versatile and easy to integrate.
How to Use the DHT22 AM2302 in Arduino Projects
Using the DHT22 AM2302 Digital Temperature Humidity Sensor with Arduino is straightforward, thanks to its simple interface and digital output. Here’s a step-by-step guide to get started:

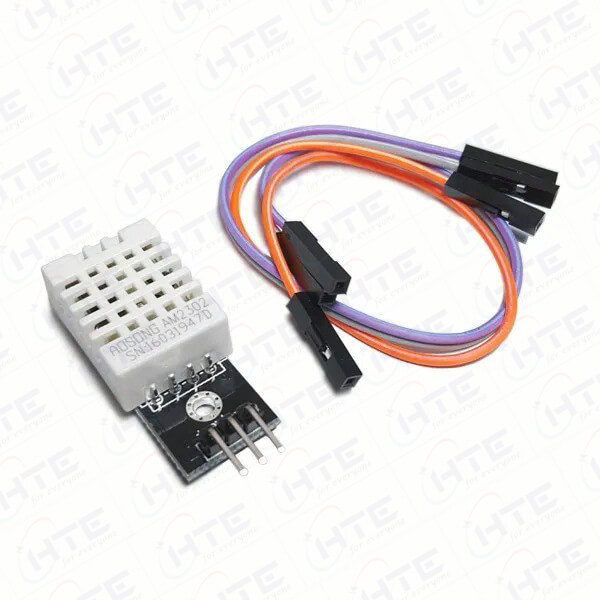

- Wiring the Sensor: Connect the 4-pin package to your Arduino board. Typically, the first pin is connected to VCC (3-5V), the second pin to data, and the fourth pin to ground.
- Installing the DHT Library: Arduino provides a library for the DHT sensors, making it easy to include in your code. You can find the library in the Arduino IDE’s library manager.
- Writing the Code: Once the library is installed, you can use the provided examples to start collecting temperature and humidity data. The DHT22 outputs data digitally, so there’s no need for additional components.
- Displaying Data: You can output data to a serial monitor or use an I2C LCD Display to visualize the measurements.
For detailed instructions on using the DHT22 AM2302 Digital Temperature Humidity Sensor with Arduino, refer to the official Arduino DHT Sensor Tutorial.
Why Choose the DHT22 AM2302 for Your Project?
1. High Accuracy and Resolution
The DHT22 AM2302 provides superior accuracy, with a humidity precision of ±2% RH and a temperature accuracy of ±0.5°C. This level of precision ensures that your measurements are reliable, making it ideal for environments where climate control is critical.
2. Energy Efficiency
With its ultra-low power consumption, the DHT22 AM2302 sensor is perfect for projects requiring long-term operation on minimal energy. The sensor consumes only 1-1.5 mA of current during measurement, making it suitable for battery-powered devices and systems.
3. Long-Term Stability
The DHT22 AM2302 offers excellent long-term stability, ensuring that it continues to perform reliably over time. Whether you’re using it in harsh outdoor conditions or in sensitive indoor environments, the sensor maintains its accuracy without requiring frequent calibration.
4. Easy Integration with Arduino and Other Platforms
The DHT22 AM2302 is compatible with popular microcontroller platforms like Arduino and Raspberry Pi. Its 4-pin package design and digital output make it easy to connect, and the widely available DHT library simplifies coding and data collection.
Conclusion
The DHT22 AM2302 Digital Temperature Humidity Sensor is the ideal choice for those seeking a reliable and accurate climate monitoring solution. With its wide range of applications, high precision, low power consumption, and ease of integration with platforms like Arduino, the DHT22 AM2302 stands out as one of the best options for temperature and humidity sensing.
For more information and to purchase the DHT22 AM2302 Digital Temperature Humidity Sensor, visit our product page or check out other related products like the I2C LCD Display and the Arduino Uno.
