Description
Looking for a reliable way to protect your 2-cell lithium battery packs? The 2S 3A BMS (Battery Management System) 7.4V 8.4V Lithium Battery Protection Board Module is your ideal solution. This compact and efficient module is specifically designed to safeguard your 18650 Li-ion or Li-Polymer battery packs from common issues like overcharge, over-discharge, overcurrent, and short circuits. Ensuring both battery longevity and user safety, this essential component is now readily available at the best 2S 3A BMS price in Bangladesh exclusively from HTEBD.
✨ Key Features & Benefits
- Comprehensive Battery Protection: Built-in safeguards against overcharge, over-discharge, overcurrent, and short circuiting ensure maximum battery life and user safety.
- Optimized for 2S Packs: Perfectly suited for two-series (7.4V nominal, 8.4V full charge) lithium-ion or lithium-polymer battery configurations.
- Compact & Efficient: Small form factor (approx. 38x8x2mm) allows for easy integration into various DIY projects and portable devices.
- High Current Handling: Capable of handling a continuous discharge current of up to 3A, with a peak instantaneous current of 5-6A.
- Extends Battery Lifespan: By preventing critical battery conditions, the module helps to maintain the health and performance of your battery cells over time.
- Easy to Integrate: Simple connection points (B+, B-, B1, P+, P-) make wiring straightforward for hobbyists and professionals alike.
🔥 Technical Specifications of BMS Module
| Module Type | 2S BMS Lithium Battery Protection Board |
|---|---|
| Input Voltage (Charge) | DC 8.4V – 9V (Max) |
| Nominal Voltage | 7.4V |
| Full Charge Voltage | 8.4V |
| Overcharge Detection Voltage | 4.25V – 4.35V ± 0.05V (per cell) |
| Overcharge Release Voltage | 4.05V – 4.15V ± 0.05V (per cell) |
| Over-discharge Detection Voltage | 2.3V – 3.0V ± 0.05V (per cell) |
| Over-discharge Release Voltage | 2.9V – 3.2V ± 0.05V (per cell) |
| Max Continuous Working Current | 3A |
| Instantaneous Peak Current | 5A – 6A |
| Operating Temperature | -40℃ to +50℃ |
| Internal Resistance | Less than 45mΩ |
| Short Circuit Protection | Yes (Self-recovery) |

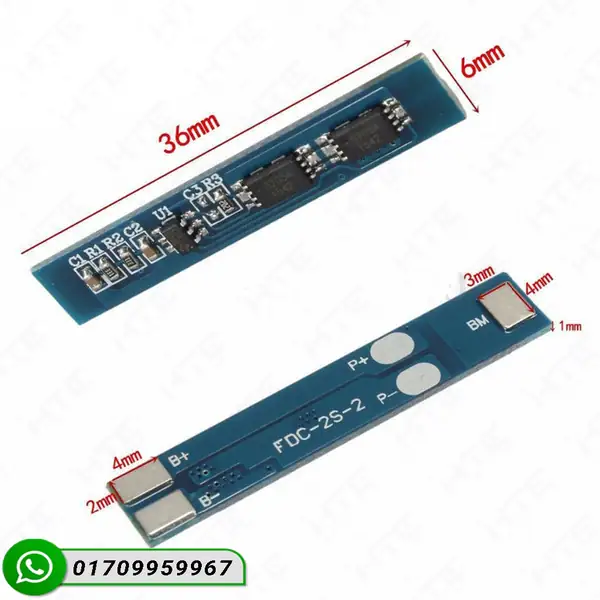

| Dimensions (Approx.) | 38mm x 8mm x 2mm |
| Material | PCB |
📦 Additional Information
- Weight: Approximately 2 grams
- Dimensions: 38mm x 8mm x 2mm (L x W x H)
- Package Includes: 1x 2S 3A BMS 7.4V 8.4V Lithium Battery Protection Board Module
🎯 Applications of This Module
The versatility of this protection module makes it ideal for a wide range of applications, including:
- DIY 18650 Li-ion battery packs
- Portable power banks (ছোট পাওয়ার ব্যাংক)
- Small electronic gadgets and projects
- RC toys and drone battery packs (ছোট ড্রোন ও খেলনা)
- LED lighting solutions requiring battery power
- Any application needing reliable 7.4V/8.4V battery protection.
✅ Get Your 2S 3A BMS Today!
Ensure the safety and longevity of your lithium battery projects. Don’t compromise on protection – buy the high-quality 2S 3A BMS module at the best 2S 3A BMS price in Bangladesh from HTEBD. Order now and empower your electronics with reliable battery management!
❓ Frequently Asked Questions (FAQs)
- What does 2S 3A BMS mean?
“2S” indicates it’s designed for two lithium cells connected in series, resulting in a nominal voltage of 7.4V and a full charge of 8.4V. “3A” refers to its maximum continuous discharge current capacity. BMS stands for Battery Management System, which protects the battery. - How do I connect the 2S 3A BMS to my batteries?

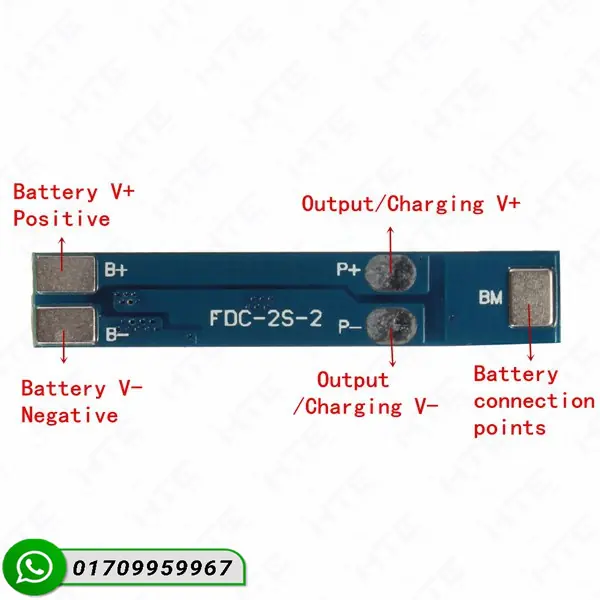

You need to connect B- to the negative terminal of the first cell, B1 between cell 1 positive and cell 2 negative, and B+ to the positive terminal of the second cell. P- and P+ are for the load/charger connections. Always refer to a wiring diagram (we recommend checking the video section!). - Can I use this module for 3.7V LiPo batteries?
Yes, this module is compatible with both 3.7V nominal Li-ion (like 18650 cells) and LiPo batteries, as long as they are arranged in a 2S configuration (two cells in series). The crucial part is the 2S setup for 7.4V/8.4V. - What is the price of 2S 3A BMS in Bangladesh?
You can find the most competitive 2S 3A BMS price in Bangladesh right here on HTEBD. We strive to offer the best value for quality electronic components.
