Description

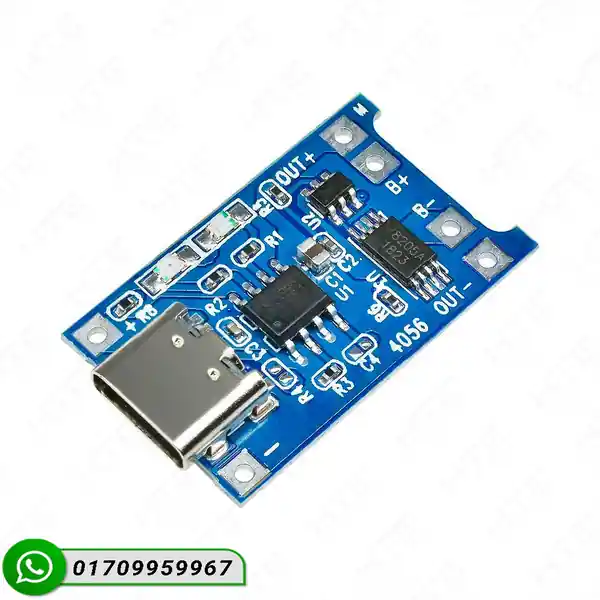

Looking for a reliable and safe battery charger circuit? The TP4056 Type C Charging Module is the absolute best choice for makers, students, and engineers. If you are working on DIY electronics or robotics projects, একটি ভালো মানের ব্যাটারি চার্জিং মডিউল থাকা খুবই জরুরি, especially for lithium batteries. This module offers an efficient way to safely charge standard 3.7V Lithium-ion or Li-Po batteries like the popular 18650 cells. Get the best TP4056 Type C charging module price in Bangladesh directly at HTE Bangladesh.
🔥 Features & Benefits
- Dual Functionality: Charges your battery and protects it simultaneously without needing extra boards.
- Built-in Protection: Features the DW01A protection IC which ensures your battery is never damaged from overcharging, over-discharging, or short circuits.
- Type-C Interface: The modern USB Type-C port makes it highly compatible with modern smartphone chargers and cables.
- Clear LED Indicators: Red light indicates charging is actively in progress, while a Blue/Green light means the battery is fully charged.
- Adjustable Current: Comes with a default 1A charging current, which can be easily adjusted by changing the onboard PROG resistor.
⚙️ Specification Table
| Input Voltage | 4.5V – 5.5V DC |
| Full Charge Voltage | 4.2V (± 1.5%) |
| Max Charging Current | 1A (Adjustable) |
| Input Interface | USB Type-C |
| Over-discharge Cut-off | 2.5V |
| Over-current Protection | 3A |
| Operating Temperature | -10°C to +85°C |
📦 Additional Info
- Dimensions: 25mm x 19mm x 10mm
- Weight: Approx. 2g to 3g
- Material: High-quality FR4 PCB
- Package Includes: 1x TP4056 Type C Charging Module with Battery Protection
🎯 Applications
- Building DIY Power Banks and repairing portable electronics.
- Safely charging 18650, 14500, and other single-cell 3.7V Lithium batteries.
- Powering IoT devices, Arduino, and Raspberry Pi portable projects.
✅ Get Yours Today!
Upgrade your DIY hardware with standard safety features. Buy the TP4056 Type C Charging Module online from HTE Bangladesh (www.htebd.com) and enjoy fast, reliable delivery anywhere in BD!
❓ Frequently Asked Questions (FAQ)
1. Can I charge multiple batteries at once?
Yes, you can charge multiple 3.7V batteries connected in parallel, but the overall charging time will increase since the maximum output current is 1A.
2. Does this module have battery protection?
Absolutely! This specific Type-C module includes a DW01A protection IC. ব্যাটারি ওভারচার্জ বা ড্যামেজ হওয়া থেকে এটি শতভাগ নিরাপদ রাখবে।
3. How do I connect the load and battery?
Solder the battery to the B+ and B- pads, and connect your project (load) to the OUT+ and OUT- pads.
