Description
Description:

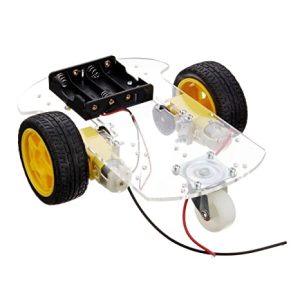

New 2WD Smart Robot Car Battery Box Chassis Kit DIY Speed Encoder For Arduino.
2wd smart robot car chassis diy kit speed encoder w/ battery box 2 motor 1: 48 description: intelligent car chassis tracing car robot car chassis with code disk ideal for DIY this car is the tachometer encoder with a 4 AA battery box and power switch.(batteries not included.)can be used for distance measurement,velocity. Can use with other devices to realize function of tracing, obstacle avoidance, distance testing, speed testing,wireless remote control.
Product Overview
Build your very first automated robotic system with this versatile 2 wheel Smart Robot Car Chassis. This lightweight, high-strength transparent acrylic platform is the industry standard for learning embedded engineering. It comes pre-drilled with flexible mounting holes, making it completely compatible with popular microcontrollers like Arduino Uno, Raspberry Pi, ESP32, and NodeMCU.
Whether you are designing a high-speed line following robot, a remote-controlled Bluetooth car, or a smart obstacle-avoiding vehicle, this all-in-one mechanical kit provides a rock-solid, balanced foundation.
Key Features
-
Modular Layout: Pre-cut structural slots let you cleanly mount sonar sensors (HC-SR04), motor drivers (L298N), speed encoders, tracking sensors, and microcontrollers.
-
Dual-Shaft BO Motors: Includes high-torque, yellow plastic-geared BO motors that operate smoothly across low voltage thresholds.
-
Balanced 3-Point Design: Driven by two independent rubberized wheels and balanced by a low-friction front omnidirectional caster wheel for swift zero-radius turning.
-
Complete Hardware Included: Ships with a built-in battery compartment, speed encoder discs, mechanical fasteners, and necessary nuts/bolts.
Technical Specifications
| Parameter / Component | Specification |
| Chassis Material | Premium Laser-Cut Acrylic (Transparent Plastic) |
| Drive Configuration | 2-Wheel Drive (2WD) with 1 Caster Wheel |
| Motor Type | Dual Shaft DC Gear Motor (BO Motor) |
| Operating Voltage Range | 3V to 6V DC (Optimal performance at 5V) |
| Reduction Gear Ratio | Standard 1:48 Variated Drive |
| Wheel Diameter | Approximately 65 mm |
Applications in Bangladesh
-
University Lab Kits: A standard mechanical assembly for EEE and CSE robotics labs at institutions like BUET, IUT, RUET, and AIUB.
-
National Robotics Competitions: The baseline chassis used by school and college students in Bangladesh for building line-following (LFR) and maze-solving competition entries.
-
STEM Educational Learning: An excellent hands-on weekend kit for young makers learning the mechanics of speed, torque, and basic motor drive wiring.
