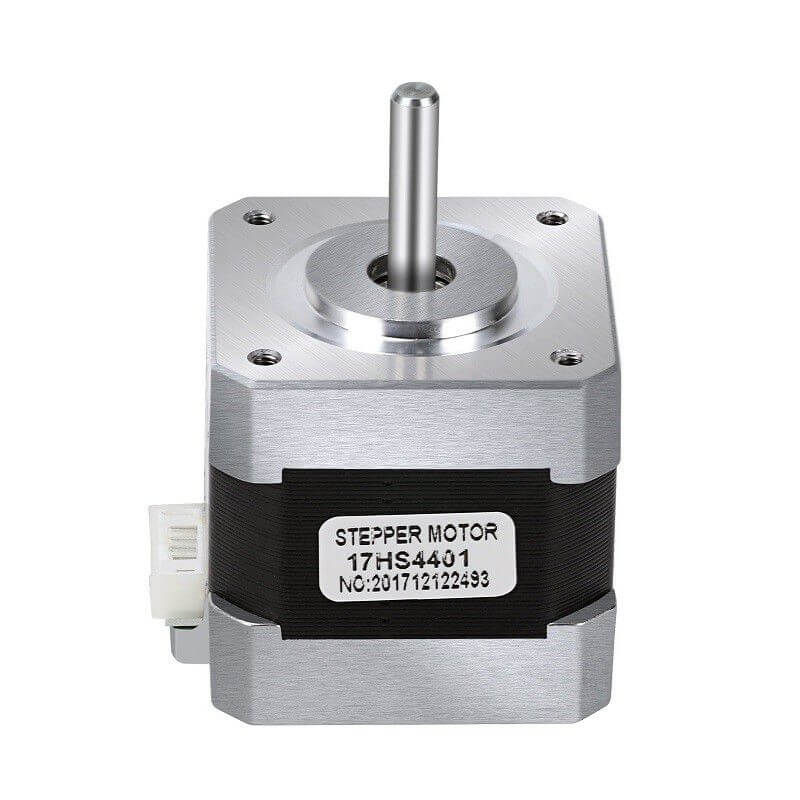

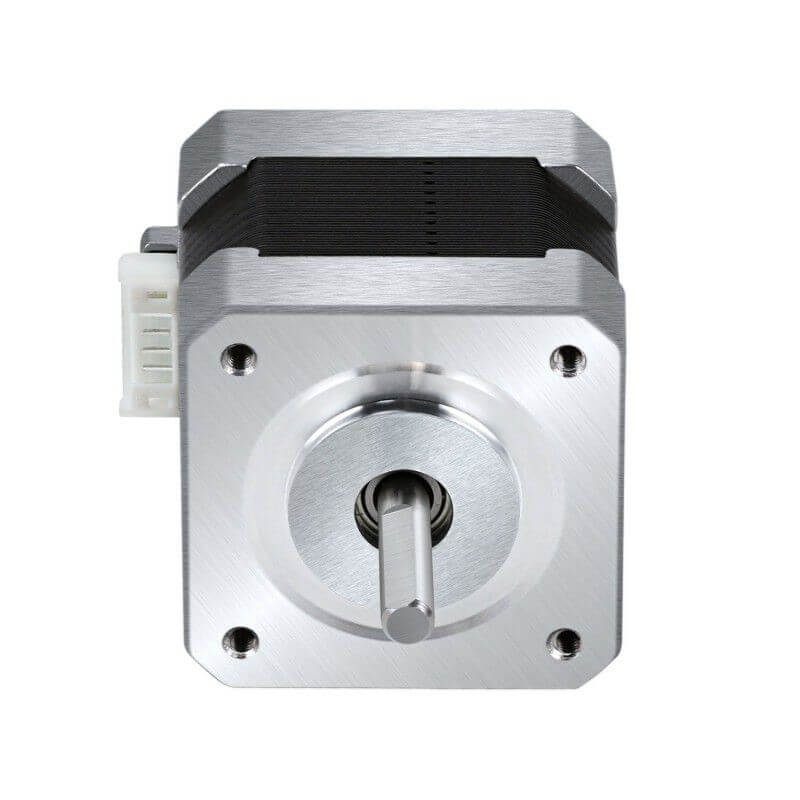

High-Performance NEMA 17 Stepper Motor Bipolar 1.7A 1.8° for Precision Motion Control
- Introduction
- Key Features of NEMA 17 Stepper Motor Bipolar 1.7A 1.8°
- Technical Specifications
- Applications of NEMA 17 Stepper Motor
- Why Choose NEMA 17 Stepper Motor for Your Projects?
- Installation and Setup
- FAQs
- Related Products
Introduction
The NEMA 17 Stepper Motor Bipolar 1.7A 1.8° is a versatile and powerful motor designed to deliver precision motion control for various applications. Whether you’re building a 3D printer, CNC machine, or robotic system, this stepper motor offers the reliability and accuracy you need to achieve top-notch performance.
With its compact design and robust construction, the NEMA 17 stepper motor is a favorite among engineers, hobbyists, and professionals alike.
Key Features of NEMA 17 Stepper Motor Bipolar 1.7A 1.8°
- Compact Size: The standard NEMA 17 frame size makes it suitable for projects with limited space.
- High Torque: Delivers exceptional holding torque for precise control.
- 1.8° Step Angle: Provides high-resolution movement with 200 steps per revolution.
- Bipolar Configuration: Ensures efficient performance and compatibility with most stepper motor drivers.
- Durable Build: Engineered for long-lasting performance even under demanding conditions.
- Low Noise: Operates smoothly and quietly, ideal for environments requiring minimal noise.
Technical Specifications
Parameter | Details |
---|---|
Model | 17HS4401 |
Step Angle | 1.8° |
Current/Phase | 1.7A |
Holding Torque | 45 Ncm |
Resistance/Phase | 1.5 Ω |
Inductance/Phase | 2.8 mH |
Shaft Diameter | 5 mm |

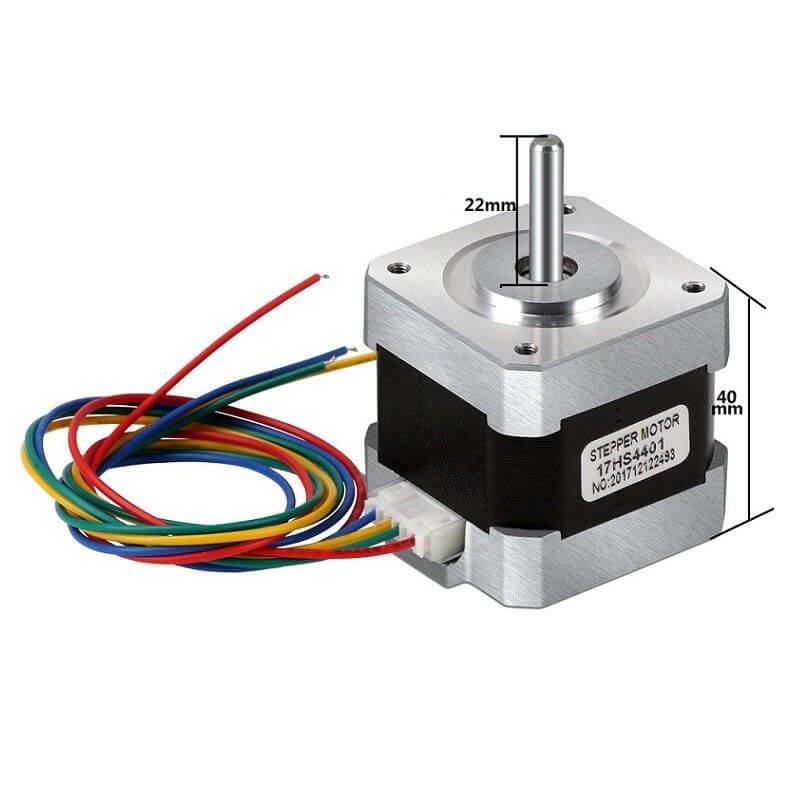

Dimensions (L x W x H) | 42 x 42 x 39 mm |
Weight | 280g |
Applications of NEMA 17 Stepper Motor
The NEMA 17 Stepper Motor Bipolar 1.7A 1.8° is widely used in various industries and DIY projects. Below are some popular applications:
1. 3D Printers
This motor is the preferred choice for 3D printer enthusiasts due to its precision and reliability. It ensures accurate layer deposition for high-quality prints.
2. CNC Machines
Ideal for controlling the axes of CNC routers and mills, the NEMA 17 stepper motor provides the torque and accuracy required for intricate machining tasks.
3. Robotics
In robotics, this motor enables precise movement, making it suitable for robotic arms, mobile robots, and more.
4. Automation Systems
Commonly used in conveyor belts and pick-and-place machines for its consistent performance.
Why Choose NEMA 17 Stepper Motor for Your Projects?
- Precision: The 1.8° step angle ensures accurate positioning, crucial for advanced projects.
- Compatibility: Works seamlessly with popular stepper motor drivers such as A4988 and DRV8825.
- Energy Efficiency: The bipolar configuration optimizes energy use without compromising performance.
- Affordability: Offers a cost-effective solution for high-performance motion control.
Installation and Setup
Setting up your NEMA 17 Stepper Motor Bipolar 1.7A 1.8° is straightforward. Follow these steps:
- Mount the Motor: Secure it to your project using the mounting holes.

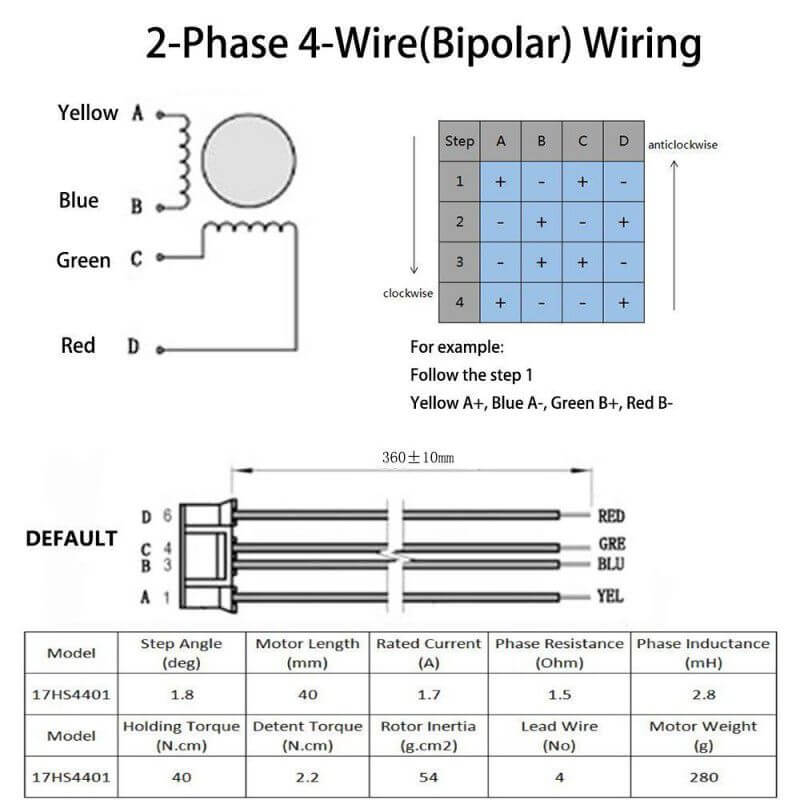

- Connect Wires: Use the four-wire bipolar connection to attach it to your stepper motor driver.
- Configure Driver Settings: Adjust current and micro-stepping settings for optimal performance.
- Test Movement: Run a few test cycles to ensure smooth operation.
For detailed wiring and configuration guides, check out this comprehensive tutorial.
FAQs
1. What is the difference between a unipolar and bipolar stepper motor?
Bipolar stepper motors, like the NEMA 17 Stepper Motor Bipolar 1.7A 1.8°, use both windings for increased torque and efficiency, whereas unipolar motors use only part of each winding.
2. Can I use this motor with an Arduino?
Yes, the motor works perfectly with Arduino when paired with drivers like A4988 or DRV8825.
3. Is a heatsink required?
A heatsink is recommended for extended use to prevent overheating.
Related Products
Optimize Your Projects with NEMA 17 Stepper Motor Bipolar 1.7A 1.8°
Take your projects to the next level with the reliable and precise NEMA 17 Stepper Motor Bipolar 1.7A 1.8°. Its robust design and exceptional performance make it the perfect choice for engineers, hobbyists, and professionals alike.
