Description

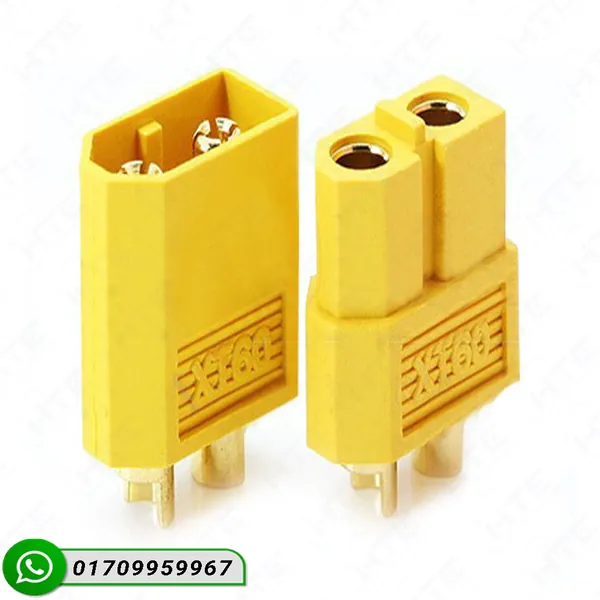

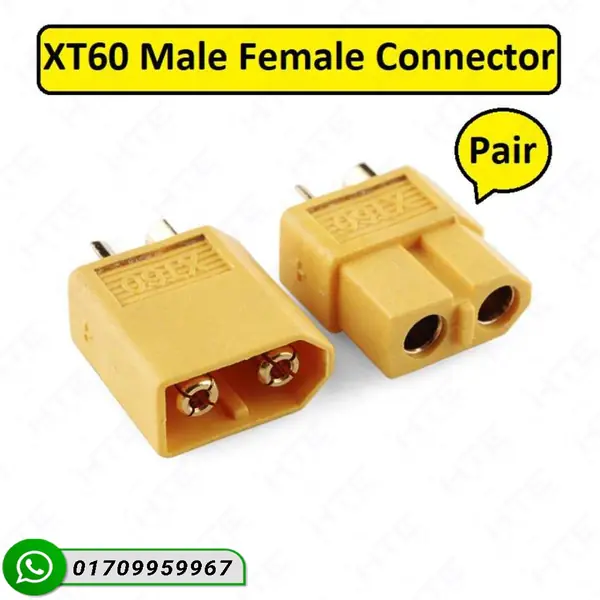

Looking for the best xt60 connector price in bd? HTE Bangladesh brings you the original high-current XT60 Male & Female Connector Pair, engineered specifically for high-drain DC power applications. The XT60 Male Female Connector Pair operates at a continuous 30A current rating and handles surges up to 60A, making it ideal for LiPo batteries, FPV drones, and heavy-duty RC models. Compared to standard T-plugs or smaller JST connectors, the XT60 connector is far better suited for high-wattage power transmission because its 3.5mm gold-plated brass bullet pins drastically reduce electrical resistance and prevent overheating under heavy loads.
Features & Benefits
- High Current Capacity: Safely handles up to 30A continuous current and 60A peak surges without thermal degradation.
- Low Contact Resistance: Features 3.5mm gold-plated brass pins that ensure minimal voltage drop across high-drain power circuits.
- Reverse Polarity Protection: The asymmetric keyed housing design prevents accidental reverse connections, protecting your valuable ESCs and electronics.
- Heat Resistant Material: Built with UL94 V-0 flame-retardant PA66 nylon, allowing safe soldering up to 120°C without melting the casing.
Specifications
| Technical Metric | Factory Value |
|---|---|
| Model | XT60 (Male & Female Pair) |
| Contact Diameter | 3.5mm |
| Contact Material | Gold-Plated Brass Bullet Pins |
| Housing Material | PA66 Nylon (Flame Retardant UL94 V-0) |
| Continuous Current Rating | 30A |
| Peak Instantaneous Surge | 60A |
| Contact Resistance | ~0.55 mΩ |
| Operating Temperature Range | -20°C to 120°C |
| Recommended Wire Target | 12AWG to 14AWG Silicone Wire |
Additional Information
Package Includes: 1 x XT60 Male Connector, 1 x XT60 Female Connector. Perfect for DIY electronics builders, drone hobbyists, and robotics enthusiasts across Bangladesh looking for reliable power transmission components.
Applications
- FPV Racing Drones and Multirotors
- RC Airplanes, Cars, and Boats
- LiPo Battery Packs and Battery Chargers
- Custom Robotics and High-Current DC Power Distribution
Call to Action (CTA)
Apnar drone ba robotics project-er jonno shothik power connector khujchen? Order koren ajkei! Get the genuine XT60 Male Female Connector Pair at the best xt60 connector price in bd exclusively from HTE Bangladesh. Fast delivery available nationwide!
Frequently Asked Questions (FAQ)
Q: What is the maximum current rating of the XT60 connector?
The XT60 connector is rated for a continuous current of 30A and can handle instantaneous surge peaks of up to 60A safely.
Q: What size wire should be used with the XT60 connector?
The XT60 connector works best with flexible 12AWG to 14AWG silicone power wire for optimal soldering and current flow.
Q: Are these genuine connectors heat resistant?
Yes, the XT60 connector housing is molded from flame-retardant PA66 nylon, which withstands high temperatures during the soldering process without melting.
