Description

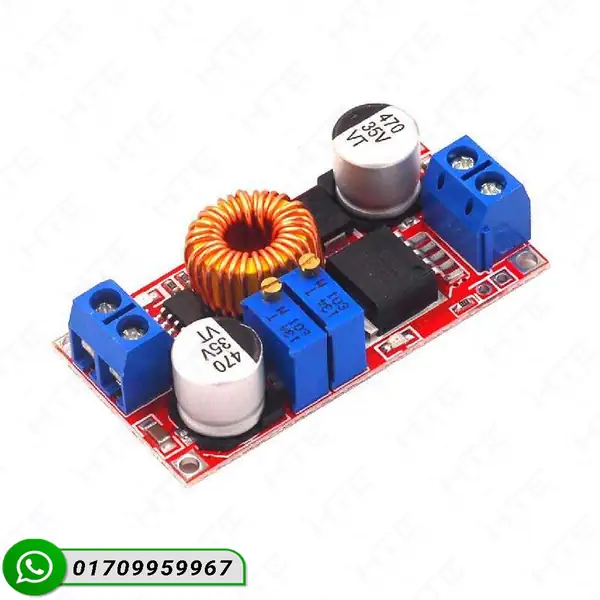

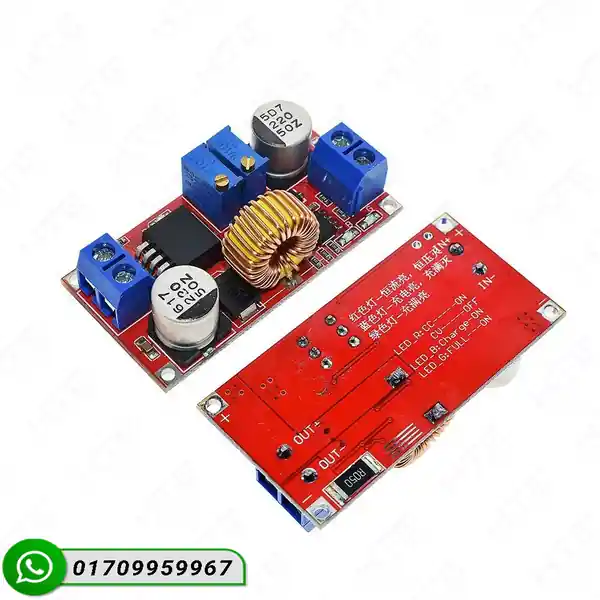

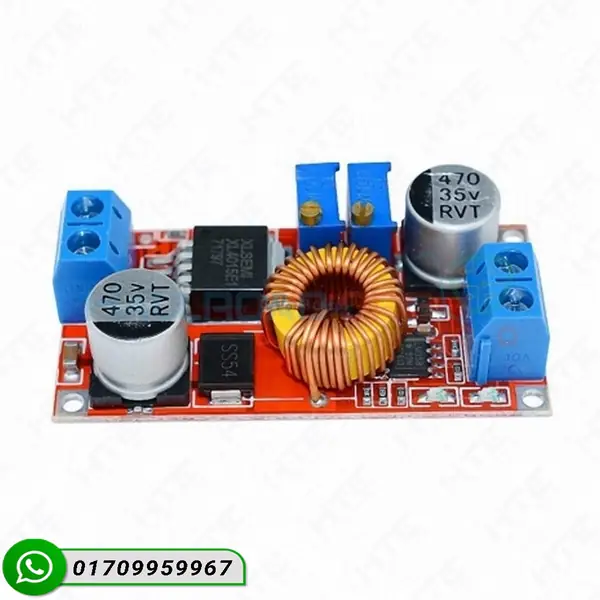

Looking for a reliable and efficient way to step down voltage for your electronics projects? The XL4015 buck converter is your go-to solution! This powerful 5A DC-DC step-down power supply module, available at HTE Bangladesh, offers adjustable constant voltage (CV) and constant current (CC) capabilities, making it incredibly versatile. Whether you’re building a DIY power supply, charging lithium batteries, or powering sensitive electronics, this module delivers stable performance. Discover the XL4015 buck converter price in Bangladesh and elevate your project today!
✨ Features & Benefits:
- Wide Input & Output Range: Accepts 5V-32V input and provides an adjustable 0.8V-30V output, perfect for diverse applications.
- High Current Capability: With a maximum output current of 5A (peak), it can handle demanding loads with ease.
- Constant Voltage (CV) Control: Precisely adjust the output voltage to suit your specific device requirements.
- Constant Current (CC) Control: Ideal for charging batteries (like lithium batteries) or driving LEDs, preventing overcurrent damage.
- High Efficiency: Enjoy up to 95% conversion efficiency, minimizing power loss and heat generation.
- Integrated Protection: Built-in over-temperature protection and short circuit protection ensure safety and reliability.
- Easy to Use: Simple potentiometer adjustments for both voltage and current, with indicator LEDs for CC/CV status.
- Compact & Robust Design: Small form factor makes it easy to integrate into tight spaces, while quality components ensure durability.
🔥 Technical Specifications:
| Input Voltage | 5V – 32V DC |
|---|---|
| Output Voltage | 0.8V – 30V DC (Adjustable) |
| Output Current | Adjustable, Max 5A (for long-term operation, recommended <3.5A) |
| Conversion Efficiency | Up to 95% |
| Switching Frequency | 300KHz |
| Operating Temperature | -40°C to +85°C |
| Output Ripple | 50mV (max) |
| Load Regulation | ±0.5% |
| Voltage Regulation | ±2.5% |
| Material | FR4 PCB, Electronic Components |
📦 Additional Info:
- Module Dimensions (approx): 53 x 26 x 14 mm (L x W x H)
- Weight (approx): 20g
- Package Includes: 1 x XL4015 5A DC-DC Buck Converter Step-Down Power Supply Module
🎯 Applications:
The versatility of the XL4015 CC CV module makes it indispensable for a wide range of projects, including:
- DIY Adjustable Power Supplies: Create your own lab power supply with precise voltage and current control.
- Lithium Battery Charging: Safely charge various lithium-ion or lead-acid batteries with constant current and voltage.
- LED Driver: Power high-power LEDs with stable current, extending their lifespan.
- Car Power Supplies: Convert vehicle battery voltage to suitable levels for various accessories.
- Solar Panel Voltage Regulation: Efficiently convert varying solar panel output to a stable voltage for charging or devices.
- Electronic Projects: General voltage step-down for microcontrollers, sensors, and other components.
✅ Why Buy from HTE Bangladesh?
At HTE Bangladesh, we pride ourselves on offering high-quality electronic components at competitive prices. Our XL4015 buck converter modules are carefully sourced to ensure reliability and performance. Enjoy fast delivery across Bangladesh, excellent customer support, and the best XL4015 module price in BD. Don’t compromise on quality – power your projects with confidence!
Order your XL4015 5A DC-DC Buck Converter today and experience superior power conversion!
❓ Frequently Asked Questions (FAQs):
- Q: What is the primary use of the XL4015 buck converter?
- A: The XL4015 buck converter is primarily used to step down a higher DC voltage to a lower, adjustable DC voltage. Its constant current (CC) and constant voltage (CV) features make it ideal for applications like DIY adjustable power supplies, charging various battery types (especially lithium-ion), and driving high-power LEDs.
- Q: How do I adjust the output voltage and current on this module?
- A: The module typically comes with two potentiometers. One potentiometer (usually marked ‘V-ADJ’ or similar) adjusts the output voltage, and the other (usually ‘I-ADJ’ or ‘CC-ADJ’) adjusts the constant current limit. Turn them clockwise to increase and counter-clockwise to decrease. You’ll need a multimeter to accurately set the desired values.
- Q: Can I use this XL4015 module to charge my laptop battery?
- A: While the XL4015 module can provide adjustable voltage and current, charging a laptop battery directly is generally not recommended unless you are an experienced electronics hobbyist. Laptop batteries often have complex charging protocols and balancing circuits that a simple buck converter may not adequately manage. It’s safer to use a dedicated laptop charger or a more advanced battery management system (BMS) for such applications.
- Q: What is the maximum safe operating current for continuous use?
- A: Although the module is rated for a peak of 5A, for long-term and continuous operation without additional cooling (like a heatsink), it’s recommended to keep the output current below 3.5A. If you need to consistently draw higher currents, ensure proper heat dissipation to prevent overheating and damage to the module.
- Q: Where can I find the XL4015 buck converter price in Bangladesh?
- A: You can find the current XL4015 buck converter price in Bangladesh directly on this product page at HTE Bangladesh (www.htebd.com). We strive to offer competitive pricing and ensure product availability for your convenience.
