Description
Are you looking for a reliable and accurate color detection solution for your next electronics project? The TCS3200 RGB color sensor module is exactly what you need! This versatile sensor is engineered to provide high-resolution color recognition, making it an indispensable component for hobbyists, students, and professional engineers across Bangladesh. Whether you’re working on an Arduino, Raspberry Pi, or ESP32 project, the TCS3200 module seamlessly integrates, offering robust performance. Find the best TCS3200 color sensor price in Bangladesh right here at HTEBD.com, আপনার প্রজেক্টের জন্য সেরা সমাধান!
Key Features & Benefits
- High-Precision RGB Color Recognition: Accurately detects and distinguishes between a vast spectrum of colors, providing precise RGB values for your applications.
- Programmable Light-to-Frequency Converter: The core TCS3200 chip converts light intensity into a square wave output with frequency directly proportional to the incident light intensity, allowing for flexible color sensing.
- Integrated White LED Illumination: Comes with built-in white LEDs to illuminate the target object, ensuring consistent and accurate readings even in varying ambient light conditions.
- Wide Compatibility (Arduino, Raspberry Pi & ESP32): Designed for effortless interfacing with popular microcontrollers like Arduino Uno, NodeMCU (ESP32), and Raspberry Pi, simplifying your development process.

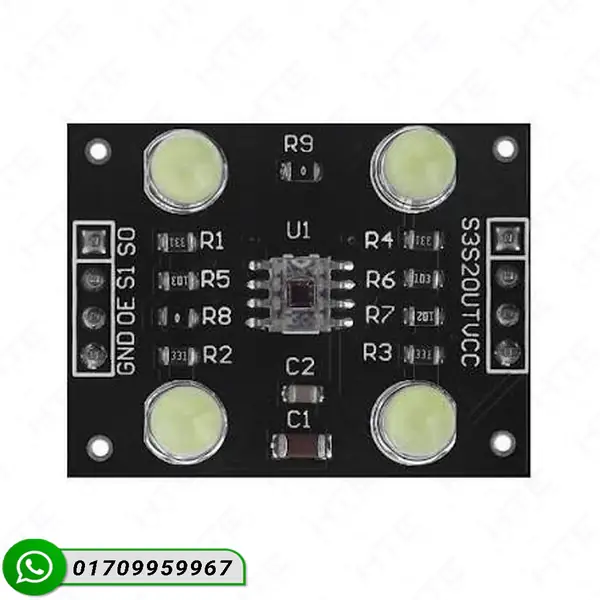

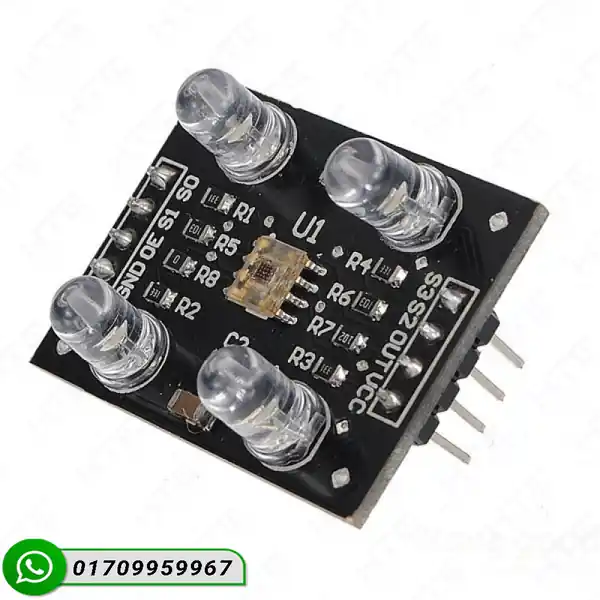

- Compact & Robust GY-31 Module Design: Its small form factor (often referred to as GY-31 TCS3200) makes it easy to incorporate into space-constrained projects without compromising performance.
- Digital Output for Easy Integration: Provides a digital square wave output, which can be directly read by microcontrollers without complex analog-to-digital conversion.
- Flexible Operating Voltage: Operates efficiently within a 2.7V to 5.5V range, making it suitable for a wide array of embedded systems.
🔥 Technical Specifications
| Feature | Details |
|---|---|
| Sensor Chip | TAOS TCS3200 |
| Operating Voltage | 2.7V – 5.5V DC |
| Output Frequency Range | 10 kHz to 600 kHz (programmable) |
| Output Type | Digital Square Wave |
| Color Filters | Red, Green, Blue, Clear (selectable) |
| On-chip Illumination | White LEDs (4) |
| Interface | 8-pin SOIC (DIP package for module) |
| Dimensions (Approx.) | 28mm x 24mm (GY-31 Module) |
| Operating Temperature | -20°C to 70°C |
📦 Additional Information
- Weight: Approximately 8g
- Dimensions: 2.8 cm x 2.4 cm x 1.5 cm
- Package Includes: 1 x TCS3200 Color Sensor Module
🎯 Applications of the TCS3200 Color Sensor
The versatility of the TCS3200 RGB sensor makes it suitable for a wide range of applications:
- Robotics: Essential for line-following robots, object sorting, and identifying colored markers.
- Color Matching Systems: Used in industrial and artistic contexts for precise color reproduction.
- Medical Diagnostics: Helps in analyzing color changes in various tests.
- Industrial Automation: For quality control, product differentiation, and process monitoring based on color.
- Educational & DIY Projects: Perfect for creating smart color sorters, mood lamps, or interactive displays with Arduino, Raspberry Pi & ESP32.
✅ Ready to bring your ideas to life?
Upgrade your projects with the precision of the TCS3200 color sensor module. Whether you’re a student, hobbyist, or professional, this sensor offers exceptional value and performance. Don’t miss out on getting the best TCS3200 color sensor price in Bangladesh. Buy online today from HTEBD.com and start building your next innovation!
❓ Frequently Asked Questions (FAQ)
- Q1: What is a TCS3200 color sensor?
- A: The TCS3200 is a programmable color light-to-frequency converter that combines configurable silicon photodiodes and a current-to-frequency converter on a single monolithic CMOS integrated circuit. It detects the intensity of red, green, blue, and clear light and outputs a square wave whose frequency is proportional to the light intensity. It’s often packaged on a module known as the GY-31 TCS3200.
- Q2: How do I connect the TCS3200 to Arduino?

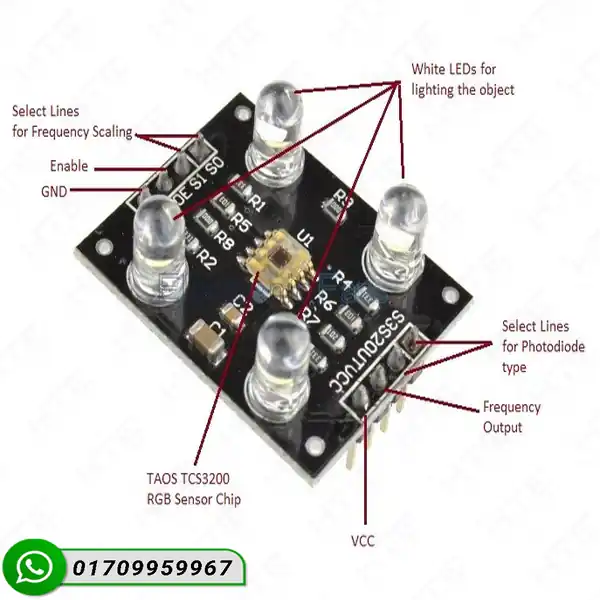

- A: Connecting the TCS3200 color sensor to Arduino is straightforward. You’ll typically connect the VCC and GND pins to 5V and GND on Arduino, respectively. The S0, S1, S2, S3 pins are used for output frequency scaling and photodiode selection (Red, Green, Blue, Clear), and these connect to digital pins on Arduino. The OUT pin, which provides the frequency output, also connects to a digital pin, often one capable of external interrupts for accurate frequency measurement.
- Q3: What are the main applications of the TCS3200 module?
- A: The TCS3200 RGB sensor module is highly versatile. Its main applications include color recognition and sorting in robotics, industrial automation for quality control, medical diagnostics, textile matching, and various educational and DIY projects like smart color sorters, light meters, and art installations. Its compatibility with Arduino, Raspberry Pi, and ESP32 makes it popular for these uses.
- Q4: What is the TCS3200 color sensor price in Bangladesh?
- A: The price of the TCS3200 color sensor module in Bangladesh varies depending on the vendor and availability. At HTEBD.com, we strive to offer competitive pricing for this high-quality module. Please check our product page for the current TCS3200 color sensor price and any ongoing offers.
