Description

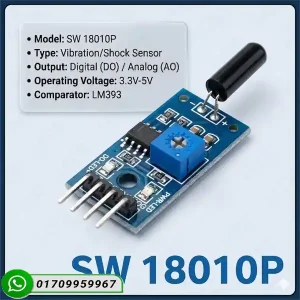

The SW-18010P Vibration Sensor Module is a highly sensitive shock and motion detection module designed for modern microcontroller projects. If you are looking for an affordable and reliable vibration sensor module price in BD, this component is the ideal choice for hobbyists and professionals alike. এটি মূলত একটি spring-type vibration switch যা যেকোনো ধরনের ঝাঁকুনি বা কম্পন সহজেই শনাক্ত করতে পারে।
Equipped with the robust LM393 voltage comparator chip, this module guarantees stable signal processing. Unlike basic 3-pin alternatives, this 4-pin variant provides both a Digital Output (DO) for direct high/low threshold triggers and an Analog Output (AO) for reading real-time vibration intensity. The onboard potentiometer allows you to easily adjust the sensitivity according to your environment, making it perfect for custom security and smart home systems.
Key Features & Benefits
- High-Sensitivity Element: Features the SW-18010P high-sensitivity spring-type vibration switch.
- Adjustable Threshold: Built-in multi-turn potentiometer for fine-tuning vibration trigger limits.
- Clean Signal Quality: The LM393 comparator provides strong anti-interference capability and output currents over 15mA.
- Dual Output Pins: DO outputs a low signal upon detection; AO provides real-time signal feedback.
- Easy Installation: Pre-drilled bolt hole (M3 size) makes mounting fast and hassle-free in any enclosure.
- LED Indicators: On-board power and signal status LEDs for fast debugging.
Product Specifications
| Specification Parameter | Details |
|---|---|
| Sensor Switch Element | SW-18010P (High Sensitivity) |
| Operating Voltage | 3.3V to 5V DC |
| Comparator IC | LM393 Stable Voltage Comparator |
| Output Formats | Digital (DO: 0 and 1), Analog (AO: Real-time voltage) |
| Output Drive Capability | > 15mA |
| Dimensions | 32mm x 14mm |
On-Board Pin Configuration
The module features 4 male header pins for quick prototyping with breadboards or jumper wires:
- VCC: Power supply input (3.3V – 5V).
- GND: Ground connection.
- DO (Digital Output): Outputs a LOW signal when vibration is detected, and a HIGH signal under stable conditions.
- AO (Analog Output): Outputs a real-time analog voltage signal representing the intensity of the vibration.
Additional Info
- Weight: Approximately 3 grams.
- Dimensions: 3.2cm x 1.4cm x 0.7cm.
- Package Includes: 1 x SW-18010P Vibration Sensor Module (4-pin version).
Common Applications
- Anti-theft security alarm systems for cars, bikes, and properties (গাড়ির সিকিউরিটি অ্যালার্ম).
- Smart home earthquake alarms or structural structural vibration triggers.
- Sports equipment performance testing and shock monitoring.
- Interactive smart toys and automatic power-saving wake-up sensors.
Order Now from HTE Bangladesh
আপনার রোবোটিক্স বা আইওটি প্রজেক্টে ভাইব্রেশন ডিটেকশন যোগ করতে আজই বেছে নিন এই মডিউলটি। Get original products with fast shipping! Add the SW-18010P Vibration Sensor Module to your cart today and upgrade your project security.
Frequently Asked Questions (FAQs)
1. What is the difference between DO and AO on the SW-18010P Module?
The DO (Digital Output) provides a simple high/low trigger (0 or 1) depending on whether the vibration crosses your set threshold. The AO (Analog Output) delivers a continuous voltage reading indicating the exact intensity of the shock or vibration.
2. How do I adjust the sensitivity of this vibration sensor?
You can adjust it using the onboard blue potentiometer. Turning it clockwise increases the threshold (makes it less sensitive), while turning it counter-clockwise makes it highly sensitive to minor vibrations.
3. What is the working voltage of the SW-18010P Vibration Sensor?
The module functions optimally within a voltage range of 3.3V to 5V DC, making it perfectly compatible with Arduino Uno, Raspberry Pi, ESP8266, and ESP32.
