Smart Bidirectional Visitor Counter with Load Control System

Discover the Smart Bidirectional Visitor Counter with Load Control System – perfect for energy-efficient occupancy tracking and automated load control.

Description

Smart Bidirectional Visitor Counter with Load Control System for EEE Final Year Project

Introduction to the Smart Bidirectional Visitor Counter with Load Control System

The Smart Bidirectional Visitor Counter with Load Control System is an innovative solution perfect for electrical and electronic engineering (EEE) final year students. This project is designed to track the number of people entering and exiting a space while controlling electrical loads, such as lights and fans, based on real-time occupancy. With its practical applications and ease of integration, this project showcases your technical knowledge and provides a sustainable solution to energy management.

Key Features of the Smart Bidirectional Visitor Counter with Load Control System

  1. Bidirectional Visitor Counting: The system uses infrared (IR) sensors to count people entering and exiting a room. This dual-sensor approach ensures accurate real-time monitoring.
  2. Load Control Mechanism: The system automatically manages connected loads, such as lights and fans, based on the number of occupants. This feature improves energy efficiency by ensuring that loads operate only when necessary.
  3. LCD Display with I2C Module: Displays the real-time count of visitors, enhancing the user interface for easy monitoring.
  4. Microcontroller Integration: Built using an ESP32 or Arduino microcontroller, the project supports robust processing and wireless connectivity.
  5. Remote Monitoring via Blynk App: Offers the convenience of mobile-based control and monitoring through Blynk, a popular IoT platform.
  6. Power Supply via SMPS: Ensures the system receives reliable and efficient power.

Benefits of Implementing the Smart Bidirectional Visitor Counter with Load Control System

The Smart Bidirectional Visitor Counter with Load Control System has numerous benefits that make it a standout project for any EEE final year student:

  • Energy Efficiency: The automatic load control reduces energy wastage, promoting sustainability.
  • Cost-Effective: Lowers energy bills by ensuring that electrical loads operate only when needed.
  • Practical Application: Useful for homes, offices, auditoriums, and any facility that requires visitor monitoring and load control.
  • Hands-On Learning: Provides practical experience in integrating sensors, microcontrollers, and IoT platforms.

Components Needed for the Project

To build your Smart Bidirectional Visitor Counter with Load Control System, you’ll need the following components:

  • Microcontroller (ESP32/Arduino UNO)
  • IR Sensors (2 units)
  • 2-Channel Relay Module
  • LCD Display with I2C Module
  • Switch Mode Power Supply (SMPS)
  • Fan and Light (Load devices)
  • Connecting Wires
  • Breadboard or PCB for connections

Ensure you have a solid understanding of each component’s function to maximize the effectiveness of your project.

Step-by-Step Guide to Building the System

1. Assembling the Circuit

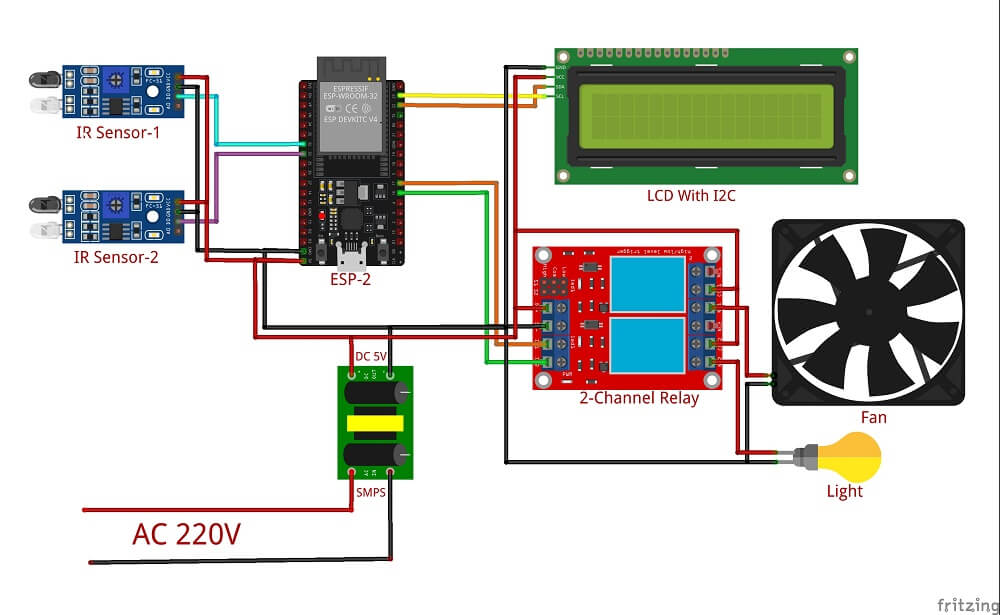

Connect the IR sensors to the microcontroller for input detection. The relay module should be connected to the microcontroller to control the loads (fan and light). The LCD with I2C should display the visitor count, while the SMPS supplies a steady 5V DC.

2. Programming the Microcontroller

Use Arduino IDE to upload the code to the ESP32/Arduino board. The code will handle input signals from the IR sensors, control the relay outputs, and update the LCD display. Integrate the Blynk library for remote monitoring and control.

3. Integrating Blynk for Remote Access

Set up the Blynk app to control and monitor your system from a smartphone. Connect the microcontroller to Wi-Fi and link it to the Blynk dashboard for real-time status updates and control.

4. Testing the System

After assembling and programming, test the system in a controlled environment. Ensure that the visitor count updates accurately and that the loads respond based on the occupancy.

Applications of the Smart Bidirectional Visitor Counter with Load Control System

  • Auditoriums and Conference Halls: Manage lighting and ventilation based on real-time occupancy.
  • Offices and Commercial Buildings: Enhance energy efficiency by controlling loads based on usage.
  • Smart Homes: Automate home lighting and cooling systems for optimal comfort and energy saving.

How This Project Enhances Your Final Year Portfolio

Completing a Smart Bidirectional Visitor Counter with Load Control System project highlights your expertise in embedded systems, IoT integration, and energy management. This project can set you apart in job interviews or academic evaluations, showcasing your practical skills and innovative thinking.
