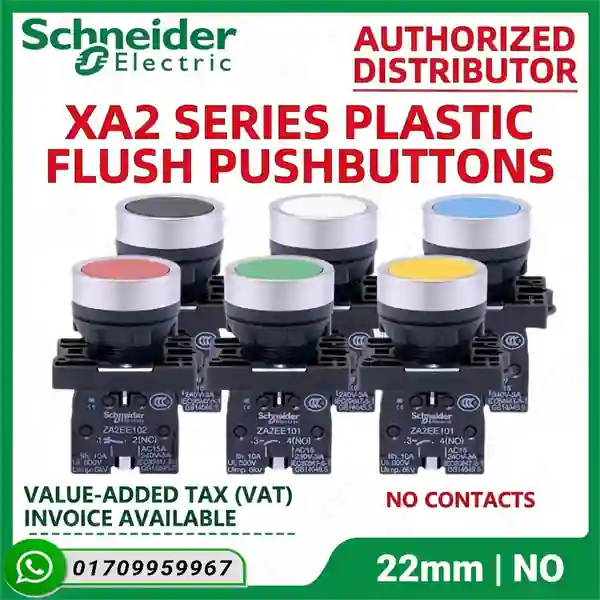

Schneider Easy Harmony XA2 Push Button Switch Assembly with ZA2EE101 Contact Block (1NO, 22mm)
Product Overview:
The Schneider Electric Easy Harmony XA2 series delivers an ergonomic, modular, and cost-effective solution for industrial automation control panels. This complete push-button assembly includes the premium ZA2EE101 single contact block, operating with a Normally Open (1NO) electrical configuration. Engineered for a standard 22mm cutout, it offers high durability, quick mounting, and excellent performance within challenging manufacturing environments.
Whether you are building an electrical control board, managing motor starter configurations, or executing an automation overhaul, this industrial switch guarantees reliable performance at a competitive price point in Bangladesh.
Technical Specifications Table
This comprehensive layout offers immediate access to the electrical and physical profile of the hardware:
| Parameter | Specification Detail |
|---|---|
| Brand | Schneider Electric |
| Series | Easy Harmony XA2 |
| Contact Block Model | ZA2EE101 |
| Contact Configuration | 1 NO (Normally Open) |
| Mounting Diameter | 22 mm |
| Terminal Marking | .3 & .4 (NO) |
| Conventional Thermal Current ($I_{th}$) | 10A |
| Rated Insulation Voltage ($U_i$) | 600V |
| Rated Impulse Withstand Voltage ($U_{imp}$) | 6kV |
| Utilization Category | AC15 (240V – 3A) |
| Standard Certifications | IEC60947-5-1, GB14048.5, CE, CCC, EAC |
Product Dimensions
Precision engineering parameters ensure stress-free integration inside panel spaces. Double-check your physical casing space with the exact manufacturer measurements below:
- Cap/Head Diameter: ∅29 mm
- Visible Cap Height: 12 mm
- Mounting Base/Collar Height: 43 mm
- Base Contact Block Height: 24 mm
Key Features & Benefits
- Industrial Reliability: Heavy-duty plastic construction provides stable electrical performance under vibrating or high-ambient heat environments.
- Modular Assembly: The ZA2EE101 base block clips seamlessly onto standard 22mm industrial push-button and selector switch units.
- Global Safety Compliance: Fully certified by international safety boards, including CE, CCC, and IEC standards, ensuring absolute plant safety.
- Clear Interface Logic: Outfitted with transparently stamped screw terminal tags (.3 and .4) to simplify initial panel wiring and system diagnostics.
Applications
- Electrical control panels and distribution boards
- Factory automation machinery systems
- Industrial conveyor lines and production workflows
- Motor control centers and pump logic setups
