Radio Detection and Ranging (RADAR) System

Description

Radio Detection and Ranging (RADAR) System Using Arduino UNO: School & EEE Final Year Project.

Introduction to the Radio Detection and Ranging (RADAR) System

The Radio Detection and Ranging (RADAR) System is a popular technology widely used in military, aviation, and automotive sectors for object detection, distance measurement, and speed calculation. In this project, we will build a RADAR system using Arduino UNO, an ultrasonic sensor, and a servo motor. This project is perfect for school students and final-year electrical and electronics engineering (EEE) students.

This RADAR system simulates how actual RADAR systems work by detecting objects, measuring distances, and displaying the results on a monitor. It’s an educational project that introduces students to the principles of RADAR technology, Arduino programming, and practical electronics.

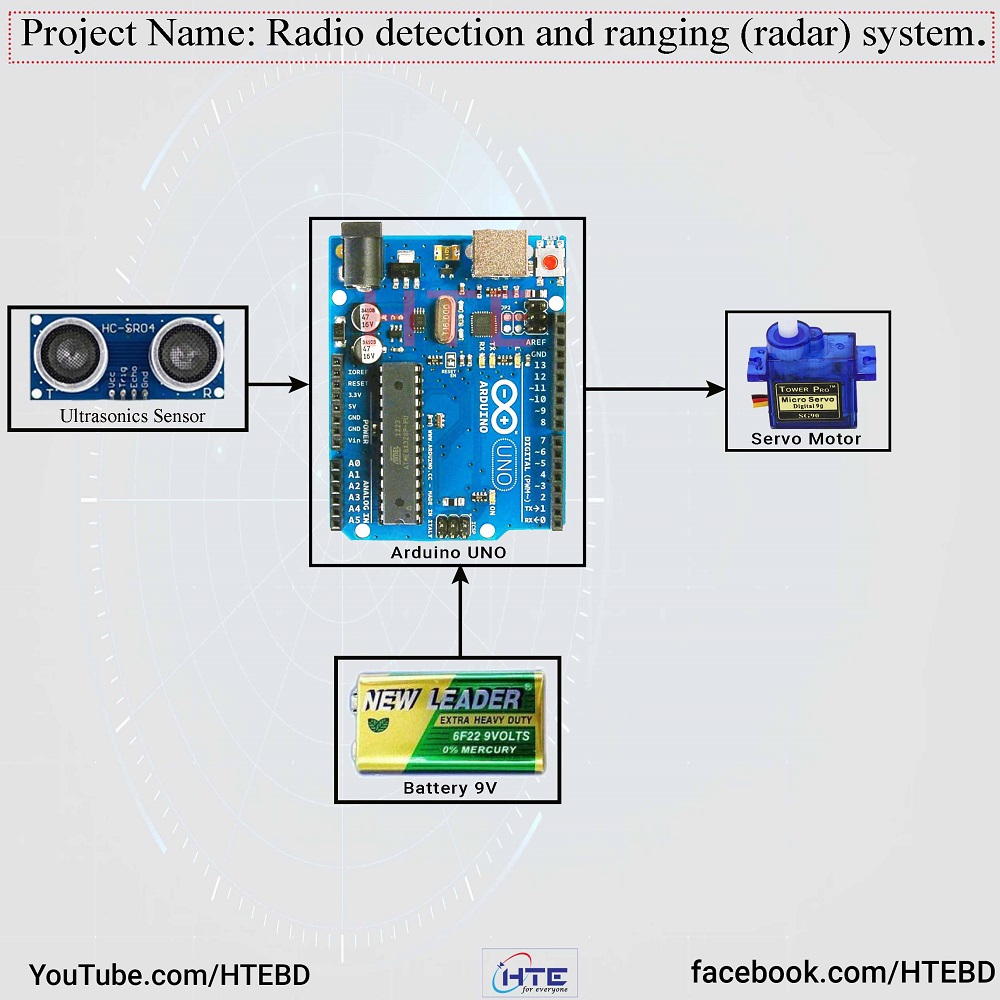

Project Components

To build the Radio Detection and Ranging (RADAR) System, the following components are needed:

• Arduino UNO: The main microcontroller for processing and controlling the system.
• Ultrasonic Sensor (HC-SR04): Used for detecting objects and measuring distances.
• Servo Motor: Rotates the ultrasonic sensor to cover a 180-degree range.
• 9V Battery: Provides power to the system.
• Monitor: Displays the detection results, including the distance of objects.
• Connecting Wires and Breadboard: For assembling the circuit.

These components work together to create a miniature version of a RADAR system, capable of detecting objects in its vicinity and displaying their distances on a monitor.

How the RADAR System Works

The RADAR system works by emitting ultrasonic waves from the sensor. When these waves hit an object, they reflect back to the sensor. The Arduino UNO calculates the time taken for the waves to return, determines the distance, and then displays the information on the monitor. The servo motor continuously rotates the ultrasonic sensor, allowing the RADAR to scan its surroundings.

Step-by-Step Project Guide

1. Circuit Setup:
   • Connect the ultrasonic sensor to the Arduino UNO.
   • Connect the servo motor to the Arduino, ensuring it can rotate the sensor across a 180-degree range.
   • Power the system using a 9V battery.
   • Connect the monitor to display the detection data.
2. Arduino Programming:
   • Use the Arduino IDE to write and upload the code. The code will control the rotation of the servo motor and the detection process of the ultrasonic sensor.
   • The code calculates the distance based on the time taken by the ultrasonic waves to return and displays the results on the monitor.
3. Testing and Calibration:
   • Once the system is set up, test it by placing objects at different distances. Ensure the ultrasonic sensor accurately detects the objects and displays the correct distance.
   • Fine-tune the code and setup as needed.

Applications and Benefits

This Radio Detection and Ranging (RADAR) System has various applications, including:

• Education: Teaches students about RADAR principles, sensor technology, and microcontroller programming.
• Robotics: Can be used in autonomous robots for obstacle detection and avoidance.
• Security Systems: Provides a foundation for creating more advanced RADAR-based security systems.

The project not only enhances technical knowledge but also boosts problem-solving and programming skills, making it ideal for school and final-year EEE students.

Conclusion

Building a Radio Detection and Ranging (RADAR) System using Arduino UNO is a rewarding experience for students interested in electronics and programming. The project introduces essential concepts like sensor integration, microcontroller programming, and real-time data visualization. Whether for educational purposes or hobbyist exploration, this project is a great start.
