Nema 42 Stepper Motor 42BYGH39 0.4Nm 1.5A 1.8° Single Shaft

Description

Nema 42 Stepper Motor 42BYGH39 | Precision Control with 0.4Nm Torque and 1.5A Current for CNC and 3D Printers

Table of Contents

1. Introduction to Nema 42 Stepper Motor 42BYGH39

2. Key Specifications of Nema 42 Stepper Motor

3. Applications of the Nema 42 Stepper Motor

4. Why Choose Nema 42 Stepper Motor for Your Projects?

5. How the Nema 42 Stepper Motor Enhances Performance

6. Installation and Wiring for Nema 42 Stepper Motor

7. Conclusion

---

1. Introduction to Nema 42 Stepper Motor 42BYGH39

The Nema 42 Stepper Motor 42BYGH39 0.4Nm 1.5A 1.8° Single Shaft is a high-performance electric motor widely used in various precision control applications. Known for its reliability and high torque output, this stepper motor is designed to provide exceptional performance in CNC machinery, 3D printers, robotics, and other automation projects. Whether you are a hobbyist or working on industrial applications, the Nema 42 Stepper Motor is an ideal choice for precise motion control.

---

2. Key Specifications of Nema 42 Stepper Motor

To understand why the Nema 42 Stepper Motor 42BYGH39 is so highly regarded in the field of motion control, let’s break down its core features:

• Motor Model: 42BYGH39

• Torque: 0.4Nm (Newton meters)

• Current per Phase: 1.5A

• Step Angle: 1.8° (providing a high degree of precision)

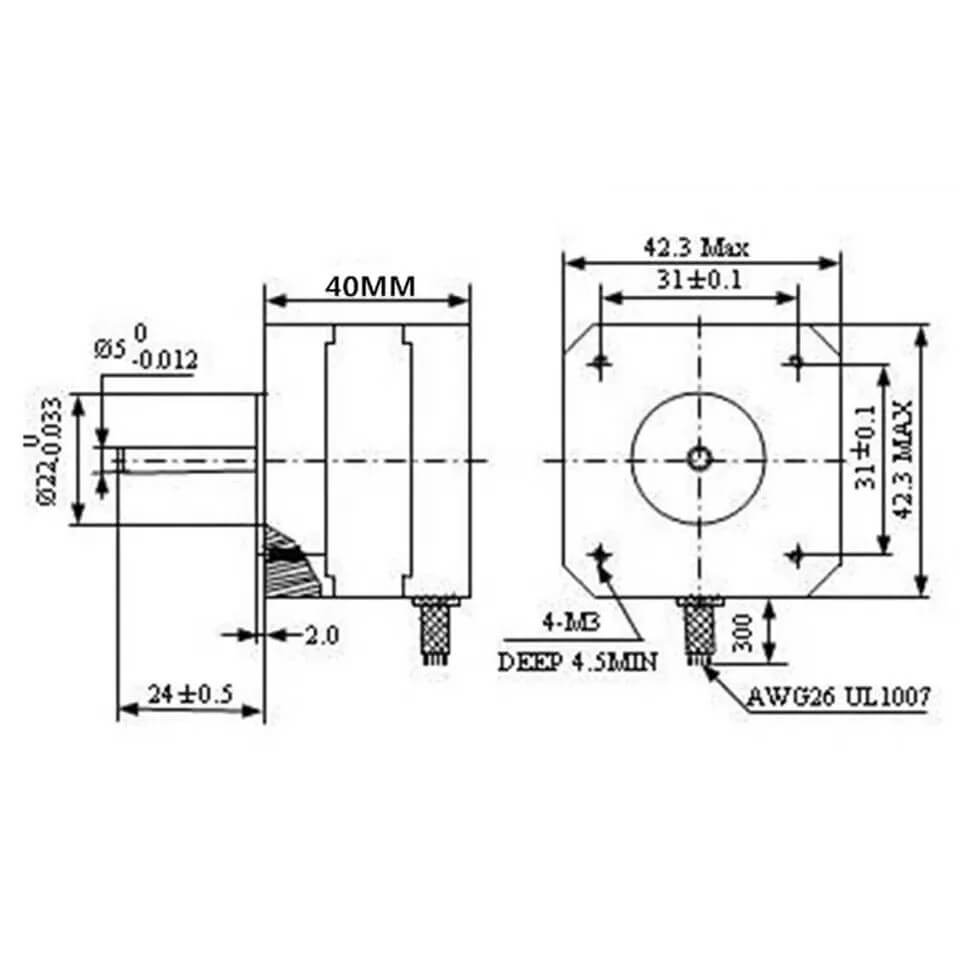

• Shaft Type: Single shaft with a diameter of 5mm

• Body Length: 40mm

• Output Shaft Length: 22mm

• Certification: CE approved, ensuring high safety and compliance standards

This stepper motor is designed with a high-quality winding that ensures smooth and precise movements. The 1.8° step angle ensures that you get excellent control and accuracy for positioning, making it suitable for projects that require fine adjustments.

---

3. Applications of the Nema 42 Stepper Motor

The Nema 42 Stepper Motor 42BYGH39 is perfect for a wide range of applications, particularly those requiring high precision and reliability. Here are some of the most common uses:

• CNC Machines: Ideal for controlling the position of axes in CNC routers, mills, and lathes, offering a high level of accuracy.

• 3D Printers: Provides the necessary torque and precision for controlling the print head and bed movement in 3D printing machines.

• Robotics: Widely used in robotic arms and other automation systems, ensuring smooth, reliable motion.

• Automated Systems: Suitable for assembly lines and conveyor systems where precise movement is crucial.

The Nema 42 stepper motor is designed to meet the demanding needs of these applications, ensuring consistent performance in long-term operations.

---

4. Why Choose Nema 42 Stepper Motor for Your Projects?

There are several reasons to choose the Nema 42 Stepper Motor 42BYGH39 for your precision control needs. Here’s why it stands out:

• High Torque and Reliability: With an output torque of 0.4Nm and a current of 1.5A, this stepper motor is built for handling demanding tasks. Whether you’re working with CNC equipment, 3D printers, or automated machines, this motor provides the required power for optimal performance.

• High Precision: The 1.8° step angle delivers precise step movements, ensuring that your projects maintain high levels of accuracy.

• Durable and CE Certified: This motor is CE certified, indicating that it meets rigorous European standards for safety and quality.

• Versatile Use: Whether you’re building a small-scale hobby project or a large industrial machine, the Nema 42 Stepper Motor is flexible enough to adapt to various applications.

• Energy Efficiency: Stepper motors like this one are known for their energy efficiency, making them a great choice for both commercial and personal projects.

---

5. How the Nema 42 Stepper Motor Enhances Performance

The Nema 42 Stepper Motor 42BYGH39 is engineered to deliver optimal performance in various mechanical systems. Here’s how it can enhance your project:

• Enhanced Positioning Accuracy: With a step angle of 1.8°, you can achieve precise positioning for your systems. This makes the motor ideal for applications where small adjustments are critical, such as in CNC machining or 3D printing.

• Smooth Operation: The motor operates smoothly at different speeds, minimizing vibrations and ensuring consistent motion in robotics and automation projects.

• High Durability: Designed to last, the motor’s rugged construction ensures it can withstand long hours of operation, offering minimal downtime.

• Cost-Effective Solution: Despite its high-end features, the Nema 42 Stepper Motor remains a cost-effective solution for both hobbyists and professionals. It provides excellent value for money, making it a popular choice across industries.

---

6. Installation and Wiring for Nema 42 Stepper Motor

Installing and wiring the Nema 42 Stepper Motor 42BYGH39 is straightforward, as the motor comes with a simple wiring setup. The wiring diagram is as follows:

• Black Wire: A+

• Green Wire: A-

• Red Wire: B+

• Blue Wire: B-

To ensure proper installation, follow these steps:

1. Connect the wires to the motor driver, matching the colors according to the wiring diagram.

2. Mount the motor securely to the desired position in your system.

3. Power up the motor and ensure the controller is configured to the motor’s specifications (current, voltage, and step angle).

4. Test the motor’s movement and adjust settings for fine-tuning.

If you are integrating the Nema 42 Stepper Motor into a CNC machine or 3D printer, you may need to calibrate it for optimal performance using the system’s software.

---

7. Conclusion

The Nema 42 Stepper Motor 42BYGH39 0.4Nm 1.5A 1.8° Single Shaft is an excellent choice for projects requiring high torque, precision, and reliability. Whether you’re working with CNC machines, robotics, 3D printing, or other automation applications, this stepper motor offers smooth operation and long-lasting performance. Its easy installation process and versatile applications make it a go-to solution for both professionals and hobbyists alike.
