Description
The Motor Driver BTS 7960 43A is an advanced, high-performance motor driver designed for driving high-current DC motors with ease. This H-bridge driver module utilizes the Infineon power drive chip, offering superior efficiency, reliability, and protection features, making it perfect for various motor control applications. Whether you’re working on robotics, electric vehicles, or industrial applications, this motor driver is built to withstand demanding tasks.
Key Features of BTS 7960 43A Motor Driver:
-
High Current Capability: Supports up to 43A, ideal for high-power applications.
-
Advanced Protection Features: Includes overcurrent, overheating, under voltage, overvoltage, and short-circuit protection, ensuring the longevity and safe operation of both the motor and the driver.
-
Efficient Drive and Braking Effect: Double BTS7960 H-bridge driver with a strong driving and braking effect for precise control.
-
Microcontroller Isolation: Utilizes 74HC244 chip to effectively isolate the motor driver from the microcontroller, ensuring smooth operation.
-
PWM Control: Offers flexible control through PWM or level mode, with a duty cycle range of 0-100% for customizable performance.
Specifications:
-
Input Voltage: 6V to 27V DC
-
Model: IBT-2
-
Maximum Current: 43A
-
Control Mode: PWM or Level Control
-
Input Level: Compatible with 3.3V to 5V microcontrollers
-
Protection Features: Overcurrent, Overtemperature, Short Circuit, and Overvoltage Protection
-
Duty Cycle: 0-100% for adjustable speed control
-
Size: Compact and easy to integrate into projects
Applications:
-
Robotics: Perfect for high-power robotic motors requiring precise speed control and efficient operation.
-
Electric Vehicles: Great for controlling motors in e-vehicles like e-bikes, electric scooters, etc.
-
Industrial Machinery: Supports automation systems, robotics, and machines needing high-current motor control.
-
DIY Projects: Ideal for hobbyists and engineers working on motor-driven systems, such as RC cars, drones, and more.
Why Choose BTS 7960 43A Motor Driver from HTE Bangladesh?
-
High Quality & Durable: This BTS 7960 motor driver is built with high-quality components that ensure durability and long-term reliability for demanding applications.
-
Efficient Power Handling: The Infineon power drive chip ensures that your motors run efficiently, reducing power loss and heat generation, even under heavy load.
-
Comprehensive Protection: With built-in protection mechanisms, this motor driver ensures the safety of your system, preventing damage from excessive current, voltage, or overheating.
-
Perfect for High-Current Applications: Capable of handling up to 43A, this motor driver is ideal for heavy-duty motor applications.
What’s Included in the Package?
-

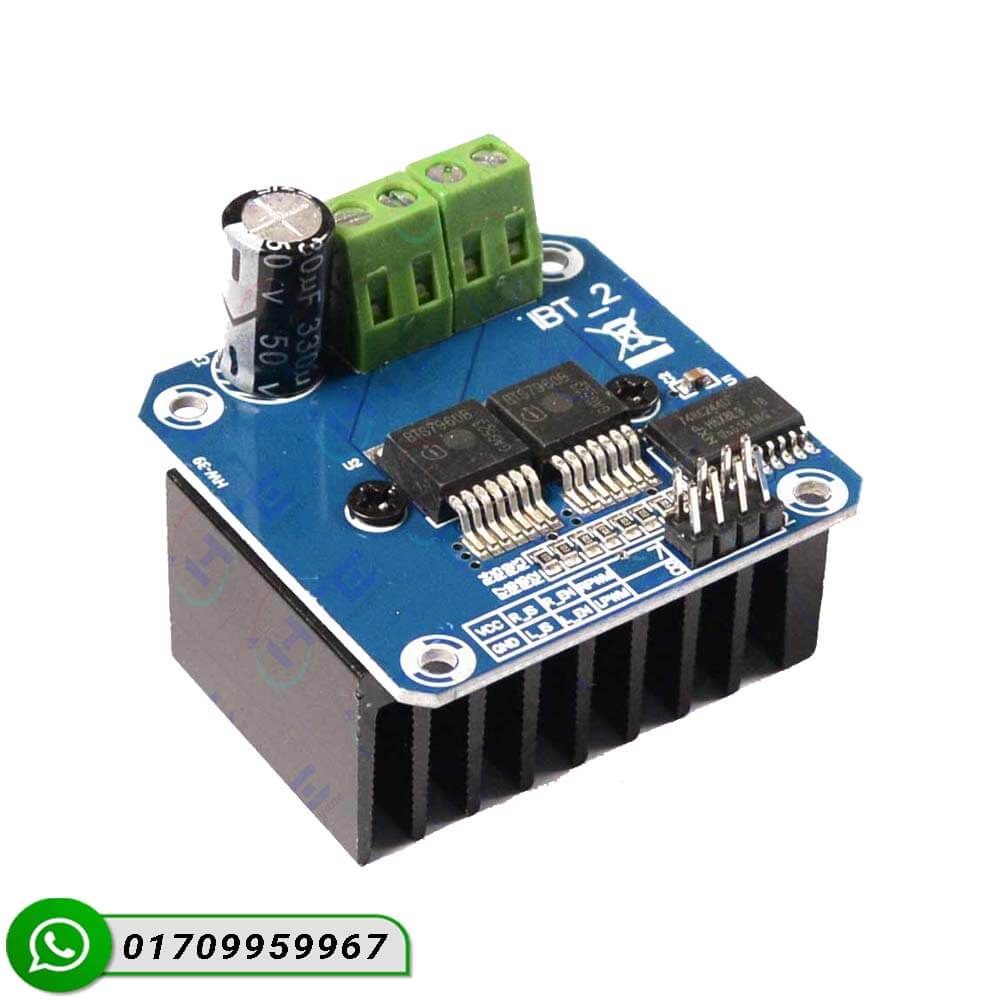

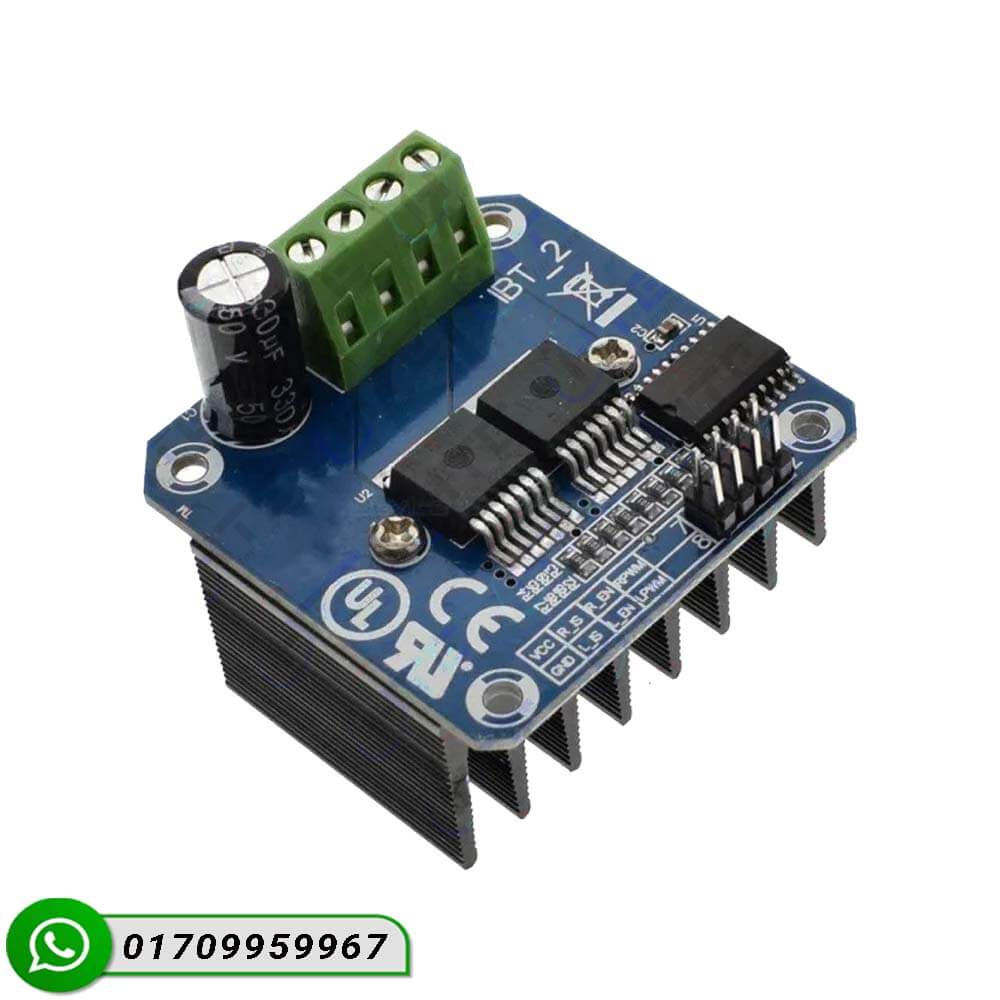

1x BTS 7960 Motor Driver Module (IBT-2)
FAQs
Q: Can this motor driver be used with Arduino?
A: Yes, the BTS 7960 motor driver is compatible with microcontrollers like Arduino, Raspberry Pi, and others that use 3.3V to 5V logic levels.
Q: What is the maximum current that this driver can handle?
A: The BTS 7960 motor driver can handle a maximum current of 43A, making it suitable for high-power motors.
Q: How do I control the motor speed?
A: You can control the motor speed using PWM (Pulse Width Modulation) or level control, allowing you to adjust the speed from 0-100% duty cycle.
Order Your Motor Driver BTS 7960 43A Today!
At HTE Bangladesh, we offer top-quality electronics and motor control modules for your DIY projects, robotics, and industrial applications. Whether you’re a hobbyist or a professional, our Motor Driver BTS 7960 43A ensures excellent performance, efficiency, and protection.
Visit htebd.com to place your order now and enjoy fast delivery and excellent customer service.
