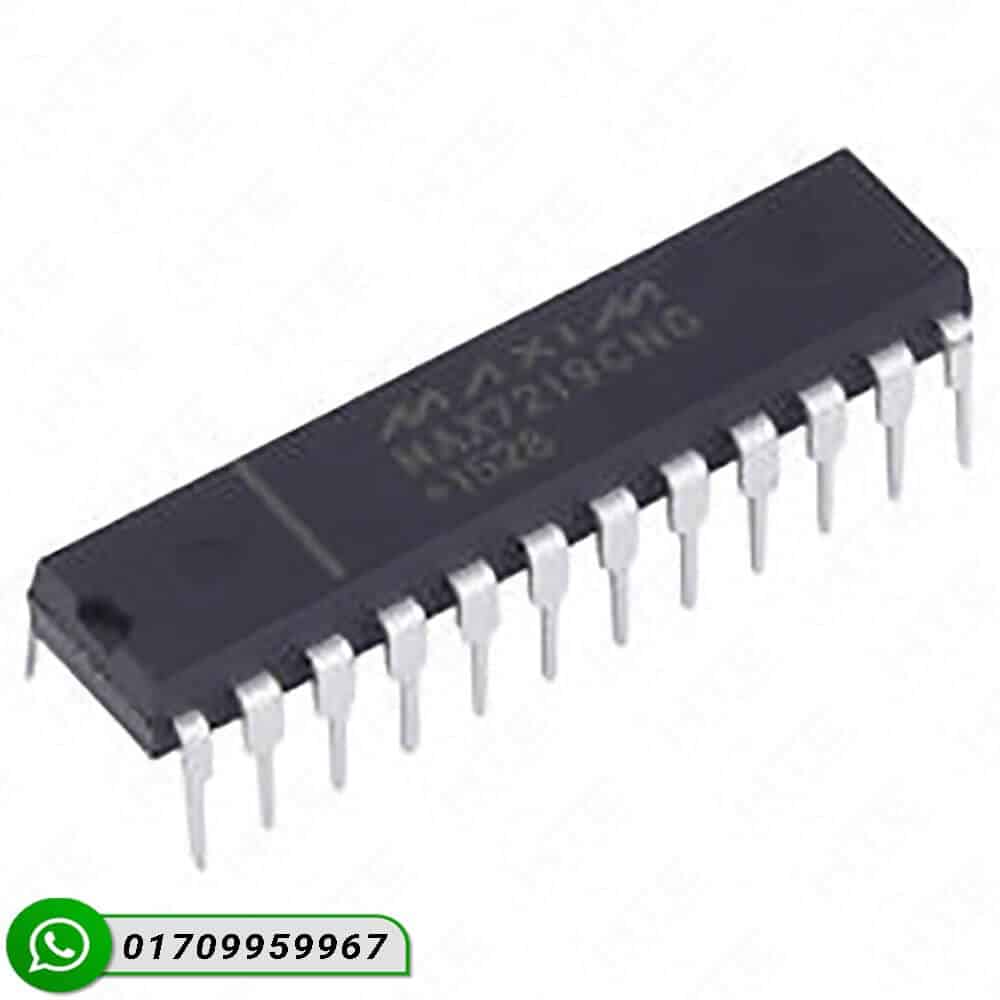

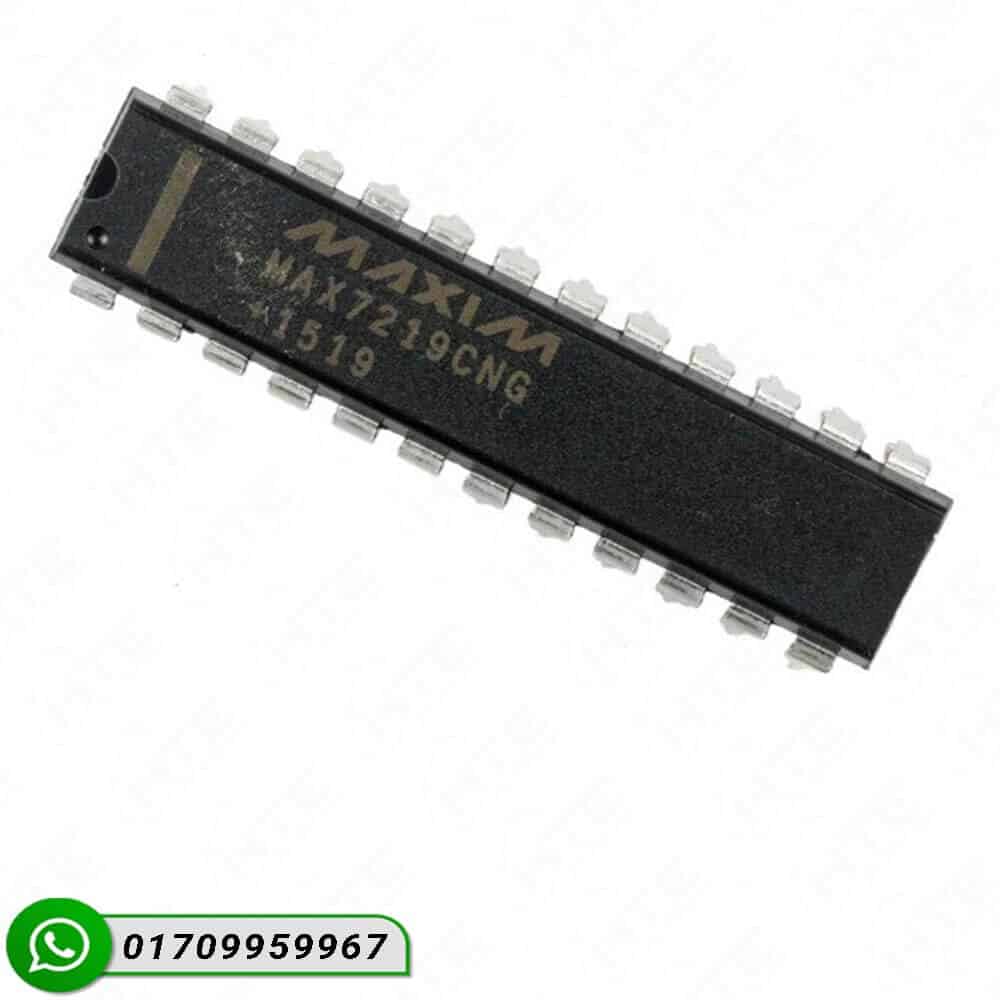

The MAX7219 LED Display Driver IC is the industry-standard solution for controlling multi-digit LED displays and 64-individual LED matrices. At HTE Bangladesh, we provide the genuine MAX7219CNG variant in a breadboard-friendly DIP-24 package, making it the top choice for students and industrial engineers alike.
This IC features a 4-wire serial interface (SPI compatible) that connects easily to any microcontroller. It includes an on-chip BCD code-B decoder, multiplex scan circuitry, segment and digit drivers, and an 8×8 static RAM that stores each digit. Only one external resistor is required to set the segment current for all LEDs, ensuring uniform brightness across your entire display panel.
Key Features and Technical Benefits:
-
Efficient Pin Usage: Controls up to 64 individual LEDs or 8 digits using only 3 data lines.
-
Integrated Functions: Includes a 150µA low-power shutdown mode, analog and digital brightness control, and a scan-limit register.
-
Versatile Compatibility: Works seamlessly with 5V logic systems, making it ideal for Arduino Uno, Mega, and various PIC microcontrollers.
-
Flexible Display Options: Supports 7-segment numeric displays, bar-graph displays, or 8×8 LED matrices.
Common Applications:
-
Digital Clocks and Counters
-
Industrial Instrument Panels
-
Matrix LED Scrolling Displays
-
Gaming Consoles and Hobbyist Projects
Engineers choose the MAX7219 LED Display Driver IC because it offloads the timing-intensive task of multiplexing LEDs from the main CPU, allowing your code to run faster and more efficiently. When you buy from HTE Bangladesh, you are guaranteed a reliable component that meets rigorous quality standards for your most critical electronic designs.
