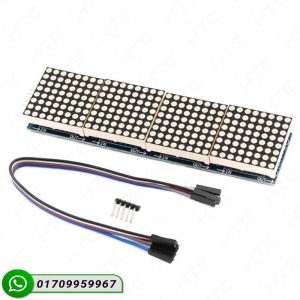

MAX7219 Dot Matrix Display Module 32×8

Description

The MAX7219 Dot Matrix Display Module 32×8 is an essential component for any electronics enthusiast or engineer looking to create visual interfaces. This module integrates four 8×8 dot matrix units into a single, sleek 32×8 display board. Each section is driven by its own MAX7219 serial input/output common-cathode display driver, allowing you to control 256 LEDs with minimal microcontroller pins.

Advanced Control and Versatility
One of the standout features of this 32×8 module is its cascading capability. While it comes as a 4-in-1 unit, the SPI (Serial Peripheral Interface) communication protocol allows you to daisy-chain additional modules to create even longer scrolling displays. The red LEDs provide high-contrast visibility, making it ideal for digital clocks, ticker tapes, and sensor data visualization.

Key Technical Features:

• Operating Voltage: 4.7V to 5.3V (Typical 5V).
• Display Dimensions: 128mm x 32mm x 14mm.
• Communication: SPI Interface (VCC, GND, DIN, CS, CLK).
• Mounting: Includes four 3mm fixed screw holes for easy installation in enclosures.
• Current Efficiency: Low-power consumption despite high brightness.
• Common Applications:
• Educational Projects: A staple for students learning SPI communication and array logic.
• Smart Home Displays: Create scrolling weather updates or notification tickers.
• Industrial Indicators: Use as a status display for machinery or server racks.
• Hobbyist Gadgets: Perfect for building DIY retro games or custom LED art.

At HTE Bangladesh, we ensure that every module is tested for quality and performance. When you purchase our MAX7219 Dot Matrix Display Module 32×8, you are investing in a reliable, durable component backed by our commitment to the local maker community.
