Description

L9110S Stepper Motor Driver Module | High Performance & Compact Design

1. Introduction to the L9110S Stepper Motor Driver Module
2. Key Features of the L9110S Stepper Motor Driver Module
3. Applications of the L9110S Stepper Motor Driver Module
4. Technical Specifications
5. How to Use the L9110S Stepper Motor Driver Module
6. Compatibility with Arduino and Other Platforms
7. Why Choose the L9110S Stepper Motor Driver Module?
8. FAQs
9. Conclusion

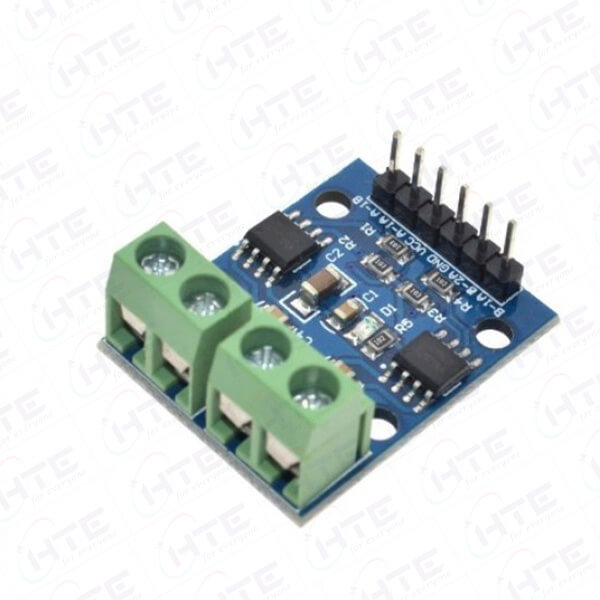

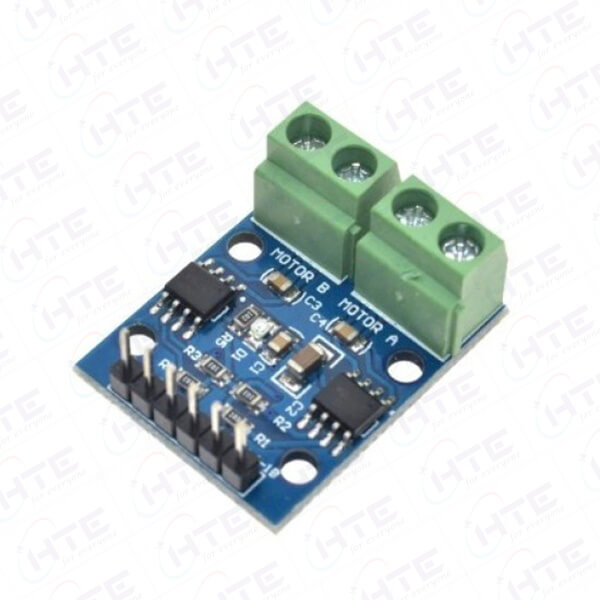

Introduction to the L9110S Stepper Motor Driver Module

The L9110S Stepper Motor Driver Module is a versatile, compact, and efficient motor driver board that enables the control of DC motors and stepper motors with precision and ease. Ideal for DIY enthusiasts, robotics projects, and applications requiring stepper motor control, this module offers dual-channel H-Bridge motor control, making it an essential component for motor-driven devices.

Whether you’re working with Arduino, Raspberry Pi, or other microcontroller platforms, the L9110S Stepper Motor Driver Module is a reliable choice for integrating stepper motor functionality into your project.

Key Features of the L9110S Stepper Motor Driver Module

• Dual-Channel H-Bridge: The L9110S Stepper Motor Driver Module offers a two-channel motor driver, which can control two DC motors or one stepper motor.
• High Efficiency: Designed to operate with high efficiency, the module ensures minimal heat dissipation even during extended use.
• Compact Design: Measuring just 29mm x 23mm, it can fit into even the most space-constrained projects.
• Low Power Consumption: With a voltage range of 2.5V to 12V, the module consumes very little power, making it ideal for battery-powered projects.
• Overcurrent Protection: Built-in safety features such as overcurrent protection ensure that your motors and circuits remain safe from potential damage.
• Easy Integration with Microcontrollers: This module easily integrates with popular platforms like Arduino, Raspberry Pi, and ESP8266, ensuring a smooth setup process.

Applications of the L9110S Stepper Motor Driver Module

The L9110S Stepper Motor Driver Module can be used in a variety of projects, including:

1. Robotics: Power the movement of your robotic creations with precise motor control.
2. 3D Printers: Perfect for controlling stepper motors in DIY 3D printer projects.
3. Conveyor Belts: Use it to manage DC motors that drive small-scale conveyor systems.
4. Home Automation: Integrate motor control into automated window blinds or other household devices.
5. IoT Projects: Combine with microcontrollers like Arduino and ESP8266 for smart motor control in IoT applications.

Technical Specifications

• Operating Voltage: 2.5V – 12V
• Output Current: Up to 800mA per channel
• Dimensions: 29mm x 23mm x 7mm
• Control Signal: TTL logic compatible
• Weight: 4 grams
• Operating Temperature: -25°C to +85°C

How to Use the L9110S Stepper Motor Driver Module

Using the L9110S Stepper Motor Driver Module with an Arduino or Raspberry Pi is simple. Follow these steps for basic operation:

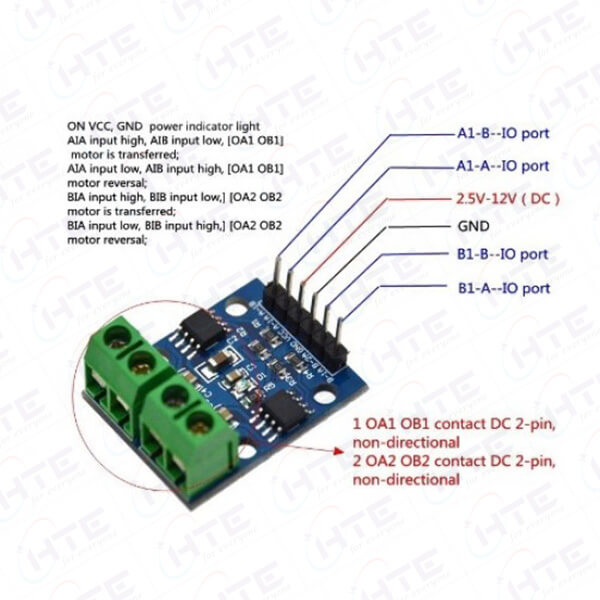

1. Wiring Setup: Connect the motor to the output terminals of the module, and the input terminals to your microcontroller. Make sure to connect the power supply to the module’s VCC and GND pins.
2. Code Integration: Write a simple code to control the stepper motor using PWM signals. Arduino libraries, such as the “Stepper” library, provide an easy way to control motor speed and direction.
3. Testing: Once connected, upload the code to the microcontroller and observe the motor in action. Adjust motor speed and direction in the code as necessary.

Compatibility with Arduino and Other Platforms

The L9110S Stepper Motor Driver Module is fully compatible with Arduino, Raspberry Pi, ESP32, and other microcontrollers. It can be paired with a variety of sensor modules and displays for sophisticated automation systems.

• Arduino: Control DC and stepper motors with libraries and easily accessible GPIO pins.
• Raspberry Pi: Ideal for more complex robotic projects where precise control of stepper motors is required.

Why Choose the L9110S Stepper Motor Driver Module?

The L9110S Stepper Motor Driver Module stands out for its blend of affordability, functionality, and compact size. Whether you’re a hobbyist or an engineer working on a professional-grade project, this module offers a high degree of reliability and ease of use.

With features like dual-channel motor control, overcurrent protection, and wide compatibility with microcontrollers, it’s the go-to choice for anyone looking to add motor control to their projects.

FAQs

Q1: Can the L9110S module control two motors simultaneously?
Yes, the module can control two DC motors or one stepper motor using its dual-channel H-Bridge design.

Q2: What power source is recommended for the L9110S module?
It operates on a voltage range of 2.5V to 12V. For small motors, 5V power is usually sufficient.

Q3: Is the L9110S Stepper Motor Driver Module compatible with ESP8266?
Yes, it is fully compatible with ESP8266, allowing integration with WiFi-based projects.

Conclusion

The L9110S Stepper Motor Driver Module is an essential component for anyone working on motorized projects. Its compact design, wide compatibility, and efficient performance make it an excellent choice for applications ranging from robotics to home automation. Add the L9110S Stepper Motor Driver Module to your project today and experience seamless motor control.
