Description

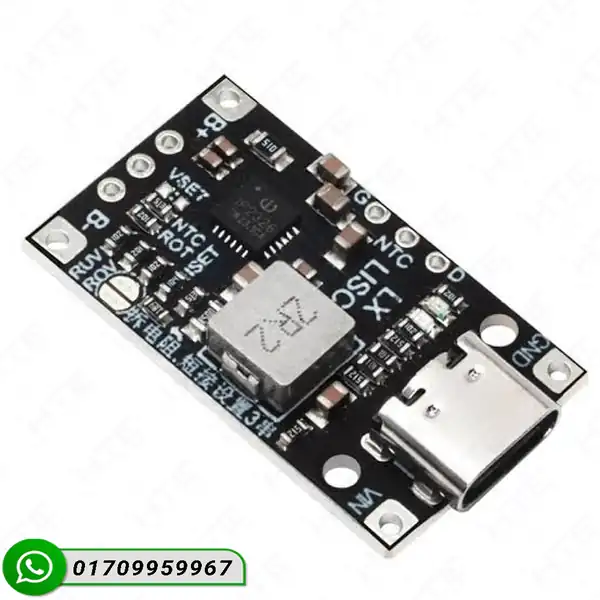

Looking for an efficient way to charge dual or triple-cell lithium batteries? The IP2326 Type-C 2S/3S Li-ion Battery BMS Charger Boost Module 15W Fast Charge is an advanced power management solution designed for DIY enthusiasts and electronics hobbyists in Bangladesh. Operating as a high-performance IP2326 charging module, it delivers up to 15W of fast charging capability via a standard Type-C port, making it an essential component for custom portable power projects. Compared to traditional linear chargers like the TP4056, this advanced step-up charging module supports multiple cell configurations and higher power delivery, significantly reducing charge times for 7.4V (2S) and 11.1V (3S) battery packs.
Features & Benefits

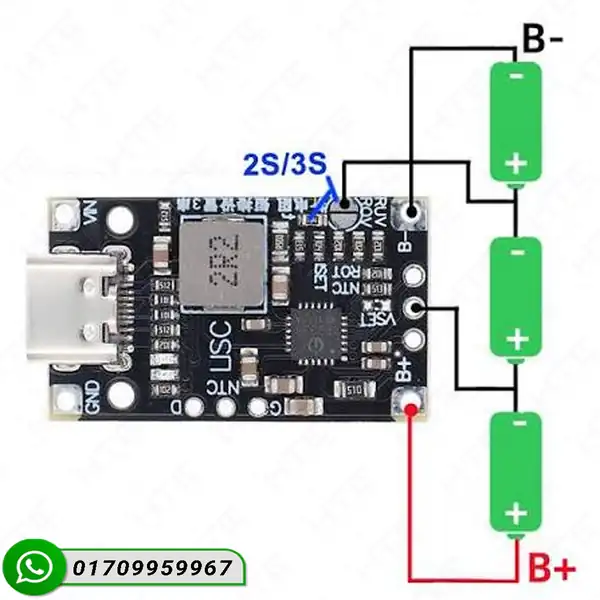

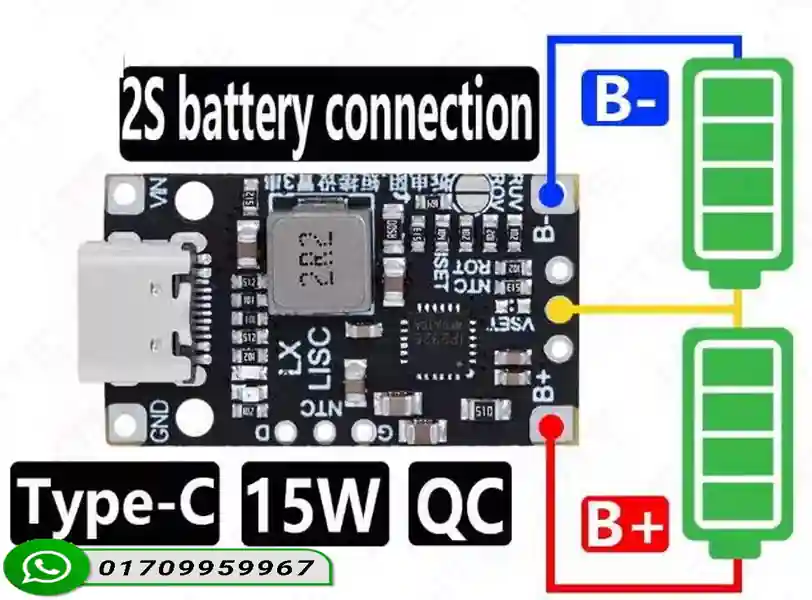

- Dual & Triple Cell Support: Configurable for both 2S (8.4V) and 3S (12.6V) lithium-ion or lithium-polymer battery packs.
- 15W Fast Charge Capability: Utilizes modern input protocols to deliver fast and efficient power directly to your battery management system.
- Type-C Interface: Features a modern USB Type-C input port for universal compatibility with standard phone chargers and power adapters.
- Integrated BMS & Protection: Includes built-in switching charging management, boost control, and safety features for reliable everyday use.
- LED Status Indicators: Real-time visual feedback for charging status and operational modes.
Technical Specifications
| Specification | Details |
|---|---|
| Input Voltage | 5V / 9V / 12V (Type-C QC Support) |
| Supported Battery Types | 2S (8.4V) or 3S (12.6V) Li-ion / Li-Po batteries |
| Max Charging Power | 15W Fast Charge |
| Charging Current | Adjustable up to 1.5A – 2A depending on configuration |
| Efficiency | Up to 94% boost conversion efficiency |
| Dimensions | Compact form factor suitable for embedded projects |
Additional Information
Each package contains one fully tested IP2326 Type-C 2S/3S Li-ion Battery BMS Charger Boost Module. Perfect for upgrading existing setups or building custom battery banks from scratch. Check out our collection at HTE Bangladesh for compatible components.
Application Section
This versatile module is widely used across various DIY and professional electronics applications:
- Custom portable power banks (2S/3S configurations)
- Bluetooth speakers and audio amplifiers
- Handheld electronic instruments and test gear
- DIY 12V mini UPS systems
- Rechargeable LED lighting setups
✅ Call to Action (CTA)
আপনার পরবর্তী DIY প্রজেক্টের জন্য সেরা পারফরম্যান্স পেতে আজই অর্ডার করুন! Fast and reliable delivery সহ অরিজিনাল IP2326 charging module পেতে ভিজিট করুন HTE Bangladesh (www.htebd.com) —Cash on Delivery সুবিধা উপলব্ধ।
❓ Frequently Asked Questions (FAQ)
Q: Can the IP2326 charging module support both 2S and 3S batteries?
A: Yes, the IP2326 module can be configured to support either 2S (8.4V) or 3S (12.6V) lithium-ion and lithium-polymer battery packs using simple external resistor configurations.
Q: What input power supply is required for 15W fast charging?
A: To achieve the full 15W fast charge capability, the module requires a compatible USB power adapter that supports Quick Charge (QC) protocols at 9V or 12V.
Q: Does this module include overcharge protection?
A: Yes, the integrated circuit provides essential charging management and protection features to ensure safe operation of multi-cell lithium battery packs
