Description

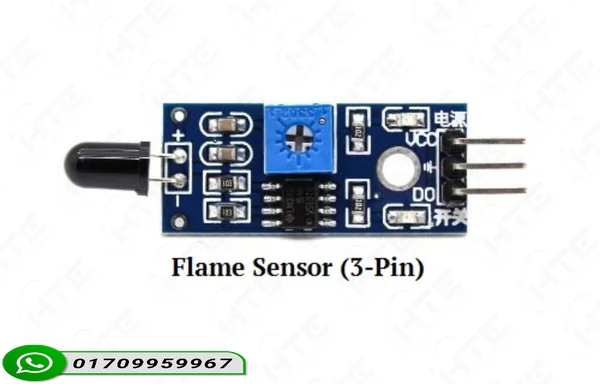

The Flame Sensor price in BD is now very affordable at HTE Bangladesh, making it the perfect choice for your next fire safety project. This high-sensitivity Infrared Flame Detection Sensor is designed to detect fire sources or light sources with wavelengths ranging from 760nm to 1100nm. Whether you are building an automated fire extinguisher or a simple alarm system, এই সেন্সরটি আপনার প্রজেক্টের জন্য সেরা সমাধান।
Features & Benefits
- High Sensitivity: Optimized to detect flames at a 60-degree angle.
- Dual Output: Features both Digital (D0) and Analog (A0) outputs for versatile interfacing.
- Adjustable Threshold: Includes an onboard potentiometer to adjust the sensitivity level easily.
- Stable Performance: Uses the LM393 comparator chip for clean and stable signal output.
- Indicator LEDs: Built-in power and status indicators for easy debugging.
🔥 Technical Specifications
| Operating Voltage | 3.3V to 5V DC |
| Detection Range | 760nm ~ 1100nm |
| Detection Angle | About 60 degrees |
| Comparator Chip | LM393 |
| PCB Size | 3.2cm x 1.4cm |
📦 Additional Info Section
- Weight: 5g (Approx)
- Package Includes: 1 x Infrared Flame Sensor Module
- Mounting: Fixed bolt hole for easy installation.
- SKU: HTE-11815
🎯 Application Section
This sensor is widely used in various automation and robotics fields. Use it for fire-fighting robots, industrial flame monitoring systems, and household fire alarms. সাশ্রয়ী মূল্যে প্রজেক্টের জন্য এটি একটি আদর্শ সেন্সর।
✅ Order Online from HTE Bangladesh
Get the best Flame Sensor price in BD only at HTE Bangladesh. We ensure 100% genuine products with fast delivery across the country.
❓ FAQ Section
Q1: What is the detection distance of this sensor?
A1: The detection distance depends on the flame size but usually works effectively within 20cm to 100cm.
Q2: Can it detect fire in direct sunlight?
A2: Sunlight contains infrared light, so it might interfere. You should adjust the potentiometer to calibrate it for your environment.
Q3: Is it compatible with ESP32?
A3: Yes, it works perfectly with Arduino, ESP32, Raspberry Pi, and other 3.3V-5V microcontrollers.
