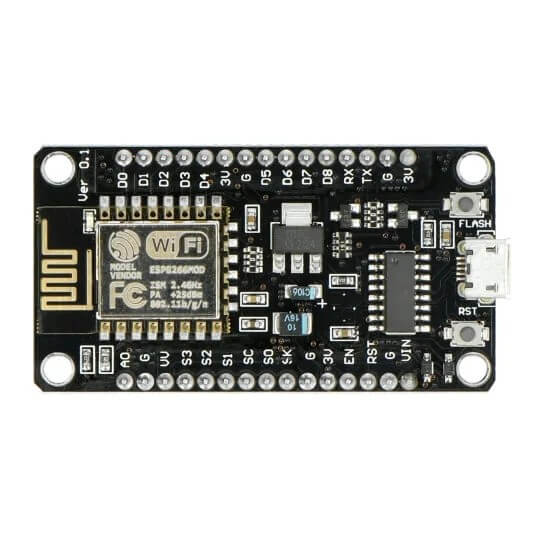

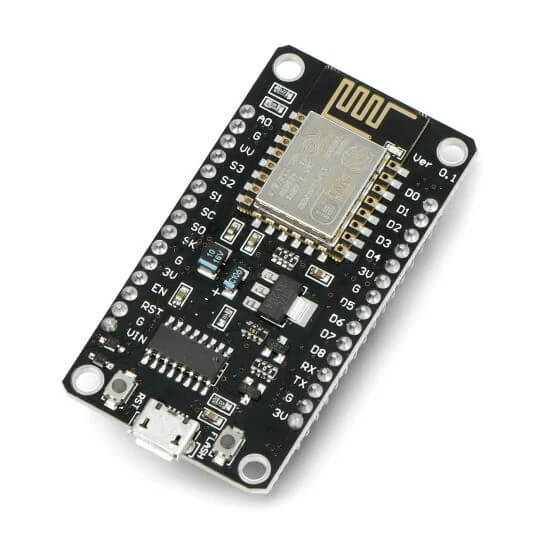

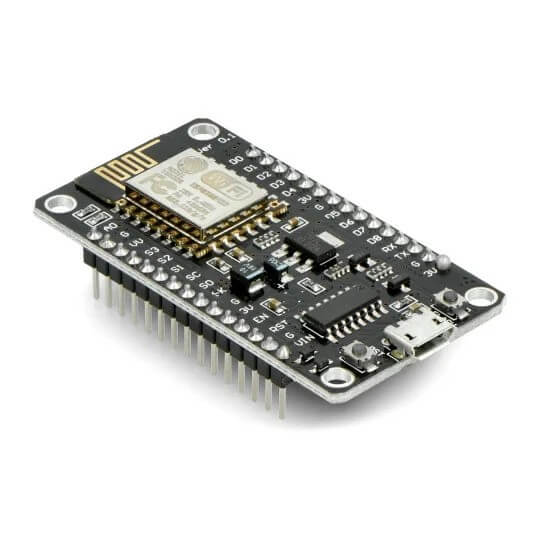

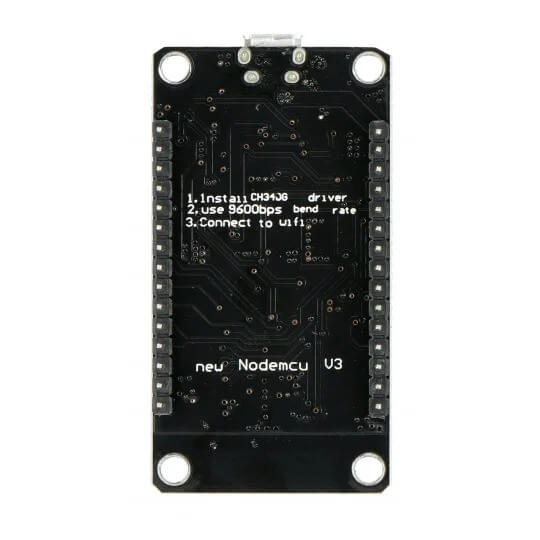

Introduction to the ESP8266 NodeMCU V3 Wi-Fi Development Board with CH340 Chip
The ESP8266 NodeMCU V3 Wi-Fi Development Board with CH340 Chip is an essential component for anyone looking to build IoT (Internet of Things) projects. Whether you are a hobbyist, engineer, or student, this affordable and highly capable development board offers an excellent way to create Wi-Fi-enabled devices. Its seamless integration with various platforms and its versatile features make it an invaluable tool for your next project.
This board comes with the CH340 chip, which ensures reliable USB-to-TTL serial communication. Moreover, it is equipped with a built-in PCB antenna that supports Wi-Fi at the 2.4GHz frequency, making it perfect for all your wireless communication needs.
In this article, we will explore everything you need to know about the ESP8266 NodeMCU V3 Wi-Fi Development Board with CH340 Chip, from its key features to its applications in real-world IoT projects.
Why Choose the ESP8266 NodeMCU V3?
1. Reliable Communication with the CH340 Chip
One of the standout features of the ESP8266 NodeMCU V3 is its integration with the CH340 chip. Unlike other boards that use the CP2102 USB-to-TTL chip, the CH340 chip offers improved stability across a wide range of platforms. This guarantees a reliable and smooth serial communication experience for your projects, which is vital for debugging and device control.
The CH340 chip is known for its robustness and superior performance, allowing for error-free data transmission and higher compatibility. This is particularly important in environments where consistent communication is crucial.
2. Built-in Wi-Fi Support
The ESP8266 NodeMCU V3 development board comes equipped with built-in Wi-Fi support, allowing for wireless connectivity at the 2.4GHz frequency. This feature opens the door to creating IoT applications that require internet access without the need for a separate Wi-Fi module.
Whether you are building a smart home system, a weather station, or a wireless sensor network, the Wi-Fi functionality makes this board an excellent choice for creating connected devices.
3. Versatility with Multiple Operating Modes
The ESP8266 NodeMCU V3 supports three operating modes: STA, AP, and STA+AP. These modes provide flexibility in how the board connects to your network. You can configure the board to connect to an existing Wi-Fi network in STA mode, or you can set it up as an access point in AP mode. If needed, both modes can be combined in STA+AP mode.
This versatility makes the ESP8266 NodeMCU V3 suitable for a wide variety of applications, ranging from simple Wi-Fi-controlled devices to more complex networks that require both device communication and Wi-Fi access.
4. Efficient Power Consumption
The ESP8266 NodeMCU V3 is designed with energy efficiency in mind. It operates on a wide voltage range of 4.5V to 9V, making it suitable for various power supply configurations. Additionally, the board has low standby current consumption of less than 200uA, which is ideal for battery-powered projects where long-term operation is crucial.
Key Features of the ESP8266 NodeMCU V3 Wi-Fi Development Board with CH340 Chip
-
Reliable USB-to-TTL Communication
-
Powerful Wi-Fi Capabilities
-
Versatile Operating Modes
-
Low Power Consumption
-
Wide Range of Interfaces
Reliable USB-to-TTL Communication
As mentioned earlier, the CH340 chip enhances the board’s communication capabilities by providing robust USB-to-TTL serial conversion. This feature is critical for projects where you need to interface with external devices through the UART, GPIO, or I2C protocols. With CH340, your project will benefit from a stable connection, reducing the chances of communication failures.
Powerful Wi-Fi Capabilities
The ESP8266 NodeMCU V3 supports Wi-Fi 802.11 b/g/n standards, allowing for high-speed data transfer at the 2.4GHz frequency range. The board is compatible with WPA and WPA2 security modes, ensuring safe and encrypted wireless communication. The built-in PCB antenna ensures a stable connection and allows your IoT devices to remain connected over long distances.
Versatile Operating Modes
The board supports STA (Station), AP (Access Point), and STA+AP (Station + Access Point) modes, giving you the flexibility to choose the appropriate mode for your application. Whether you want your device to connect to an existing network or set it up as a Wi-Fi access point, the ESP8266 NodeMCU V3 has you covered.
Low Power Consumption
For battery-powered projects, power consumption is always a concern. Fortunately, the ESP8266 NodeMCU V3 has been designed to be power-efficient, consuming less than 200uA in standby mode. This makes it an ideal choice for remote sensing, wearable devices, and other applications where power conservation is a priority.
Applications of the ESP8266 NodeMCU V3
1. Smart Home Projects
One of the most popular applications of the ESP8266 NodeMCU V3 is in smart home systems. The ability to control lights, fans, locks, and other appliances remotely via Wi-Fi makes this development board an excellent choice for building home automation solutions. By leveraging its Wi-Fi capabilities, you can easily control your smart devices from anywhere in the world.
2. Wireless Sensor Networks
Wireless sensor networks are crucial for monitoring environmental conditions, such as temperature, humidity, and air quality. The ESP8266 NodeMCU V3 is perfect for such projects due to its ability to transmit data wirelessly to a cloud-based platform or a local server. Its low power consumption ensures that your sensors can operate for extended periods without frequent battery changes.
3. IoT Projects for Education
For educators and students interested in learning about IoT, the ESP8266 NodeMCU V3 is an excellent tool. With built-in Wi-Fi capabilities and easy-to-use software libraries, students can learn how to create various IoT applications without requiring complex setups. It’s an ideal choice for practical, hands-on learning in electronics and programming.
Conclusion
In conclusion, the ESP8266 NodeMCU V3 Wi-Fi Development Board with CH340 Chip is a reliable, versatile, and cost-effective solution for anyone interested in building IoT projects. With its robust Wi-Fi functionality, low power consumption, and support for multiple operating modes, this board is perfect for a wide range of applications. Whether you’re a hobbyist or a professional, the ESP8266 NodeMCU V3 offers an ideal platform for developing wireless, connected devices.
