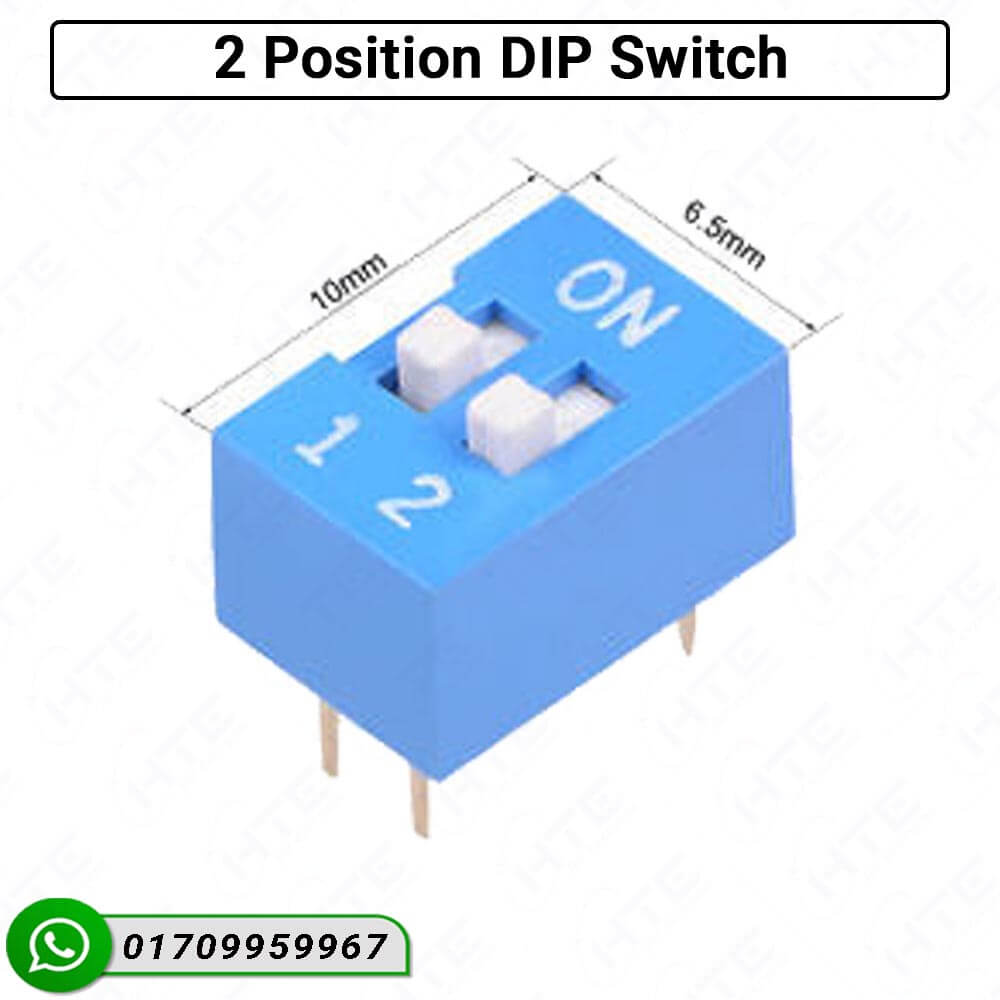

1. Introduction to 2 Position DIP Switch 2.54mm Pitch
The 2 Position DIP Switch 2.54mm Pitch is one of the most popular and widely used components in electronics. This small but powerful switch helps you control devices, set binary codes, and manage ON/OFF functions directly on a circuit board. With a 2.54mm standard pin pitch, it fits perfectly into breadboards and PCBs, making it an essential choice for students, engineers, and hobbyists.
At HTEBD (Visit Website), we provide high-quality DIP switches that are reliable, durable, and RoHS compliant.
2. Features of 2 Position DIP Switch 2.54mm Pitch
-
Compact piano-type DIP slide switch.
-
2 individual positions for control.
-
Standard 2.54mm pin pitch for universal compatibility.
-
Works perfectly in breadboards and PCBs.
-
Widely used in telecommunications, household appliances, machine tools, and more.
-
Long-lasting, reliable, and high-quality build.
3. Technical Specifications
-
Type: Horizontal DIP Slide Switch
-
Switching Rating: 100mA DC 50V / 25mA DC 24V
-
Contact Resistance: Initial 50mΩ, Typical 100mΩ
-
Number of Positions: 2
-
Pin Pitch: 2.54mm
-
Material: Plastic & Metal
-

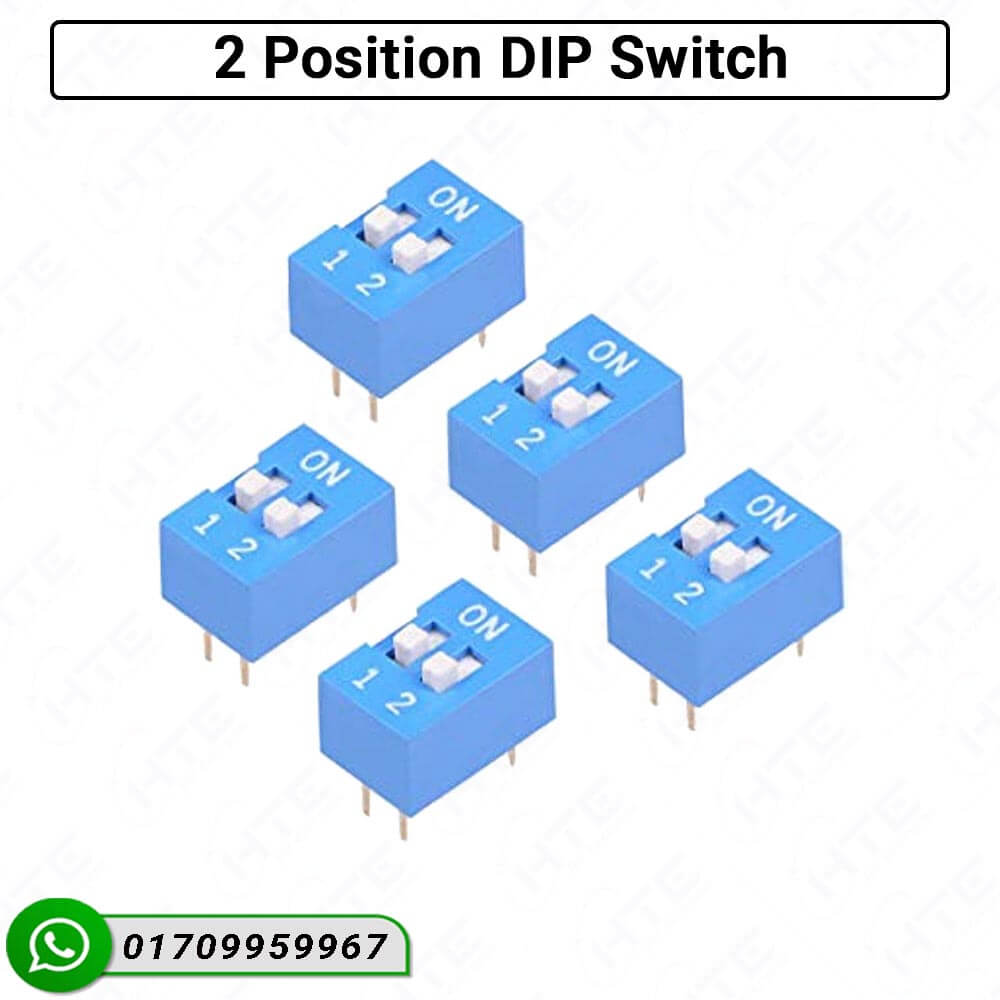

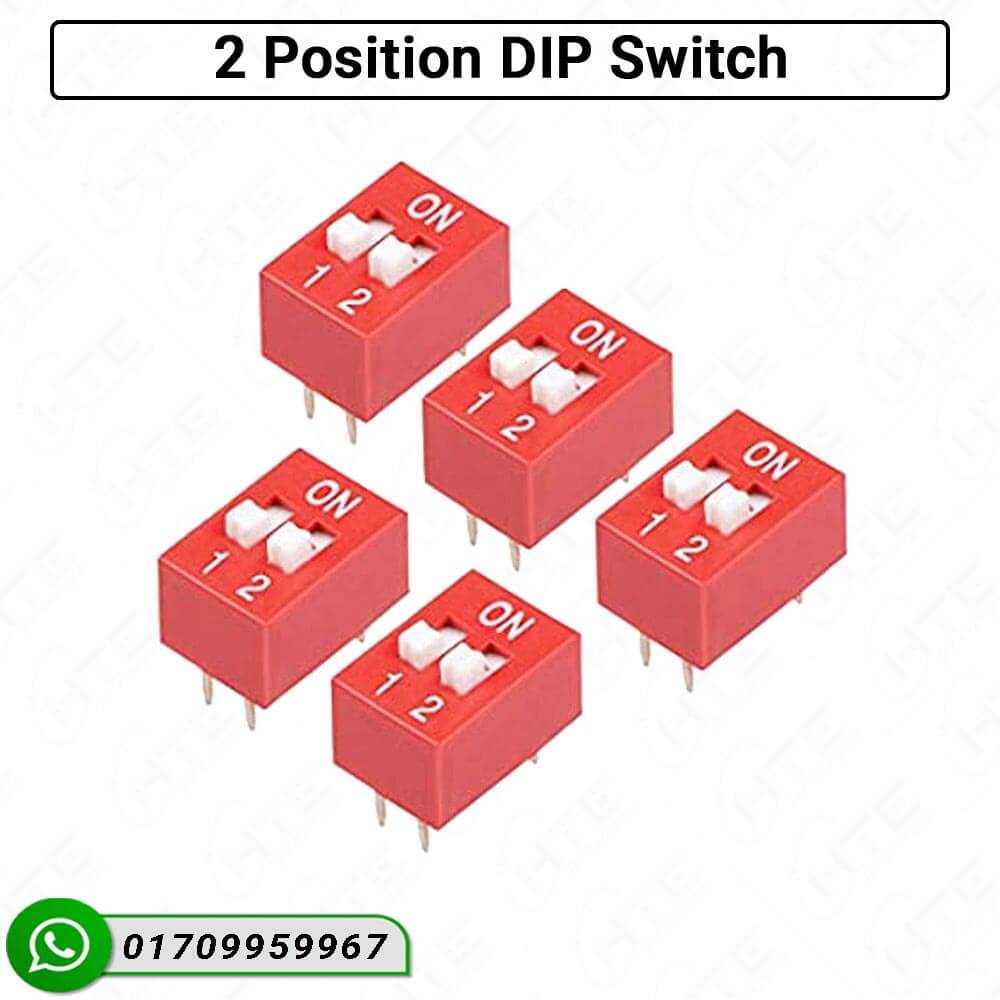

Color Options: Red / Blue
-
Compliance: RoHS Certified
4. Applications in Electronics & PCB Projects
The 2 Position DIP Switch 2.54mm Pitch has multiple uses:
-
Setting device addresses in binary format.
-
Used in IoT devices for configuration.
-
Household appliances & consumer electronics.
-
Telecommunications and industrial controls.
-
Perfect for DIY electronics projects and circuit prototyping.
5. Benefits of Using DIP Switches
-
Easy Customization: Quickly change ON/OFF states.
-
Cost-Effective: Affordable solution for PCB control.
-
Durability: Long-lasting with high switching life.
-
Compact Design: Fits easily in small circuits.
-
Versatility: Works in industrial, educational, and DIY projects.
6. Why Buy from HTEBD?
At HTEBD, we provide only high-quality electronic components.
-
100% authentic products.
-
Affordable prices in Bangladesh.
-
Fast delivery across the country.
-
Trusted by thousands of engineers and students.
-
Easy ordering via our Facebook Page.
7. How to Use 2 Position DIP Switch 2.54mm Pitch
Using a DIP switch is simple:
-
Insert it into your PCB or breadboard.
-
Toggle the switch positions (ON/OFF) as per your project requirements.
-
Each position represents binary values (0 or 1), which can configure devices easily.
8. Related Products and Internal Links
If you like the 2 Position DIP Switch 2.54mm Pitch, you may also need:
9. Conclusion
The 2 Position DIP Switch 2.54mm Pitch is an essential part of any electronics project. Whether you are a student learning basic circuits, a hobbyist experimenting with Arduino, or an engineer designing professional projects, this DIP switch will make your work easier and more efficient.
👉 Order now from HTEBD Official Website or our Facebook Page and get fast delivery across Bangladesh.
