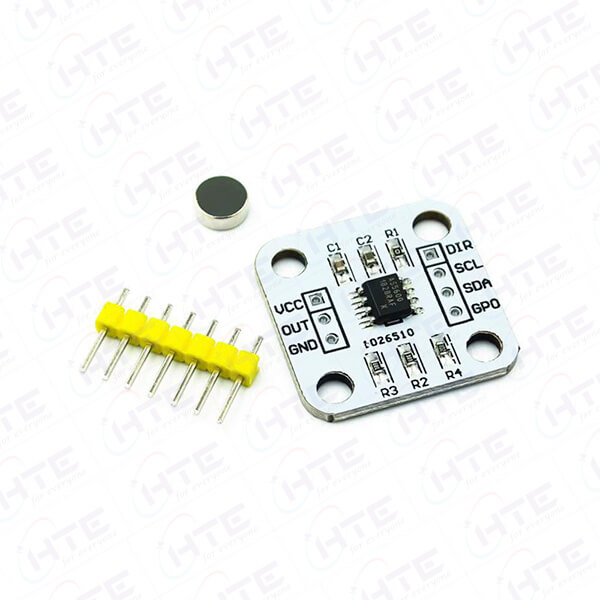

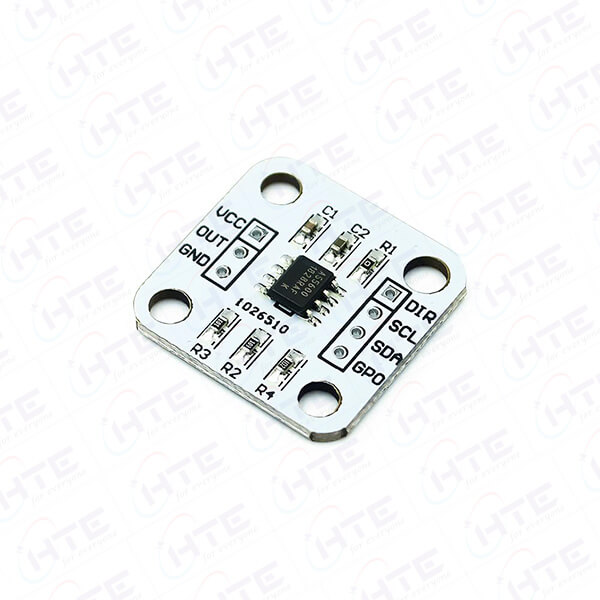

Introduction to the AS5600 Magnetic Encoder Angle Measurement Sensor
The AS5600 Magnetic Encoder Angle Measurement Sensor is a cutting-edge device designed to provide precise angle detection in various applications. With the increasing demand for accuracy and reliability in robotics, automation, and motion control, the AS5600 stands out as a top choice for engineers and hobbyists alike. This sensor’s versatility allows it to be integrated into numerous projects, enhancing their performance and functionality.
Key Features of the AS5600 Magnetic Encoder
The AS5600 Magnetic Encoder Angle Measurement Sensor boasts several key features that make it an excellent choice for precise angle measurement:
Operating Temperature Range
One of the standout features of the AS5600 is its wide operating temperature range, which spans from -40°C to 125°C. This capability ensures that the sensor can perform reliably in extreme conditions, making it suitable for both indoor and outdoor applications. Whether used in a controlled environment or subjected to varying temperatures, the AS5600 provides consistent performance.
Power Supply
The AS5600 requires a 3.3V DC power supply, making it compatible with a wide range of microcontrollers and development boards. This low power requirement allows for seamless integration into battery-powered devices, extending their operational life without sacrificing performance. This feature is particularly beneficial for projects that prioritize energy efficiency.
Dimensions
With dimensions of 23mm in length, 22.5mm in width, and 3mm in height, the AS5600 is compact and easy to integrate into existing projects. Its small form factor makes it an ideal choice for applications with limited space, such as drones, robotics, and compact machinery. The sensor’s design ensures that it can fit into a variety of setups without requiring significant modifications.
Applications of the AS5600 Magnetic Encoder
The versatility of the AS5600 Magnetic Encoder Angle Measurement Sensor allows it to be utilized in various applications, including:
- Robotics: The AS5600 is perfect for determining the position and orientation of robotic arms, vehicles, and other moving parts. Its high accuracy ensures that robots can navigate complex environments and perform tasks with precision.
- Automation: In industrial automation systems, the AS5600 plays a critical role in ensuring accurate angle detection for machinery. Its reliability makes it suitable for controlling actuators, conveyors, and other automated processes.
- Motion Control: The sensor is essential for applications requiring accurate angle measurements, such as camera stabilization and motor control. By providing real-time feedback, the AS5600 enables smooth and responsive motion control in various systems.
How to Integrate the AS5600 Sensor into Your Projects
Integrating the AS5600 Magnetic Encoder Angle Measurement Sensor into your projects is straightforward, thanks to its user-friendly interface and low power requirements. Here’s a step-by-step guide to help you get started:
- Connect the Power Supply: Ensure that the sensor is connected to a stable 3.3V DC power supply.
- Data Communication: Utilize the I2C communication protocol to interface the AS5600 with your microcontroller or development board. This communication method allows for easy data exchange and integration.
- Calibration: Calibrate the sensor according to your project’s requirements. Proper calibration is essential for achieving accurate angle measurements and optimizing the sensor’s performance.
- Testing: Conduct thorough tests to verify the sensor’s performance. This step is crucial for ensuring that the AS5600 operates as expected in your specific application.
Conclusion
The AS5600 Magnetic Encoder Angle Measurement Sensor is an exceptional choice for anyone seeking accurate and reliable angle measurement capabilities. With its robust features, compact design, and wide operating temperature range, it is suitable for various applications in robotics, automation, and motion control. By integrating the AS5600 into your projects, you can enhance their functionality and ensure precise performance.
For more information on integrating sensors into your projects, feel free to check our sensor integration guide and discover how to optimize your designs with the AS5600.
