Description

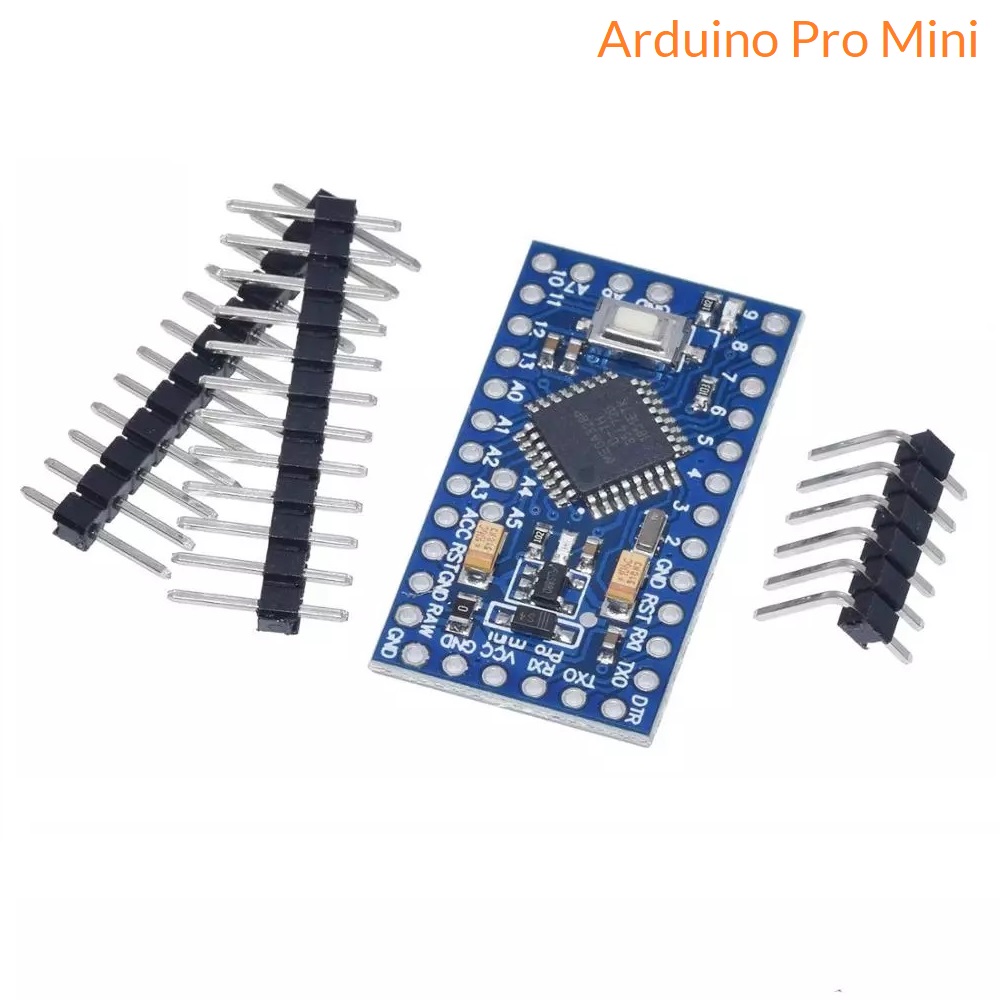

The Arduino Pro Mini is a microcontroller board based on the ATmega328.
It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. A six pin header can be connected to an FTDI cable or Sparkfun breakout board to provide USB power and communication to the board.
The Arduino Pro Mini is intended for semi-permanent installation in objects or exhibitions. The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Arduino Mini.
There are two versions of the Pro Mini. One runs at 3.3V and 8 MHz, the other at 5V and 16 MHz.

Arduino Pro Mini Following Features:

• ATmega328 running at 16MHz with external resonator (0.5% tolerance)
• 0.8mm Thin PCB
• USB connection off board
• Supports auto-reset
• 5V regulator
• Max 150mA output
• Over current protected
• Weighs less than 2 grams!
• DC input 5V up to 12V
• On board Power and Status LEDs
• Analog Pins: 8
• Digital I/Os: 14

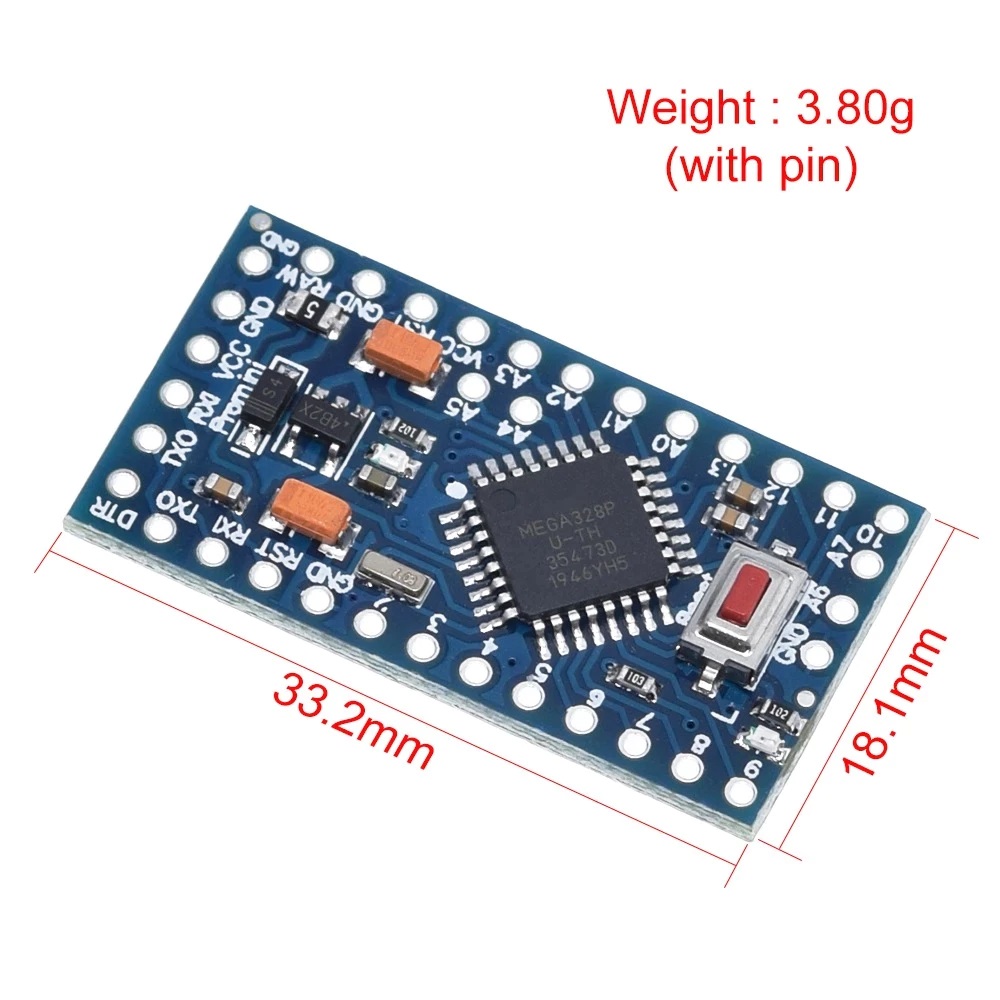

• 0.7×1.3″ (18x33mm)

Arduino Pro mini Additional Information Link:

• Schematic
• Eagle Files
• Getting Started Tutorial
• Graphical Datasheet
• GitHub
• Arduino Software (IDE)

Package Includes :

• 1 x Arduino Pro mini
• Adequate Male Header
