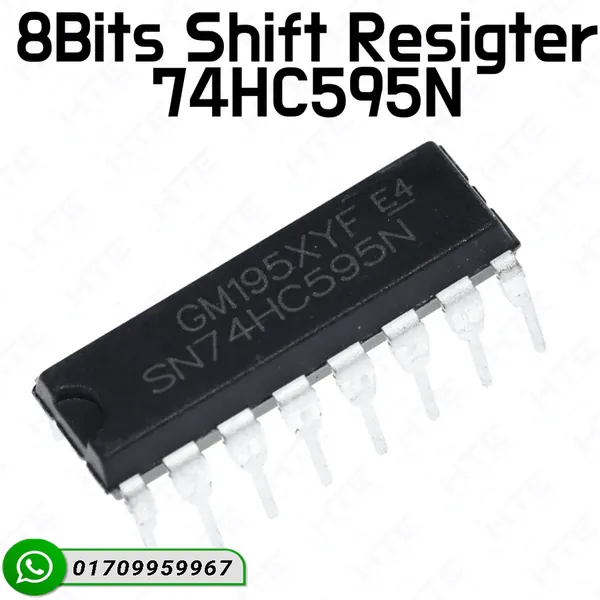

Looking for the best 74hc595 price in bd? HTE Bangladesh brings you the original 74HC595 Shift Register IC (Serial to Parallel), an essential component for expanding digital output pins in your microcontroller projects like Arduino, ESP32, and Raspberry Pi. The 74HC595 8-bit serial-to-parallel shift register operates at 2V to 6V and delivers an 8-bit output storage register with 3-state outputs, making it ideal for driving multiple LEDs, 7-segment displays, and relay modules using only 3 digital pins from your MCU.
Features & Benefits
- 8-Bit Serial-In, Serial-Out or Parallel-Out: Easily convert serial data stream into 8 parallel outputs, saving valuable GPIO pins on Arduino and microcontrollers.
- Wide Operating Voltage: The 74HC595 IC functions reliably across a wide voltage range from 2.0V to 6.0V DC.
- Low Power Consumption: Built with advanced silicon-gate CMOS technology, ensuring minimal current draw (80 µA max quiescent current).
- Daisy-Chain Capability: Multiple shift registers can be cascaded together infinitely to control dozens of outputs using the same 3 control pins.
? Specification Table
| Parameter | Specification |
|---|---|
| IC Type | 8-Bit Serial-In/Serial or Parallel-Out Shift Register |
| Operating Voltage | 2.0V to 6.0V DC |
| High-Level Output Current | ±6 mA (at 4.5V) |
| Max Clock Frequency | 100 MHz (typical at 5V) |
| Package Type | DIP-16 (Through-hole) / SOIC-16 |
| Logic Family | HC (High-Speed CMOS) |
| Operating Temperature | -40°C to +125°C |
? Additional Info Section
The 74HC595 Shift Register IC is supplied in standard DIP-16 packaging, making it breadboard-friendly and perfect for prototyping. Package includes 1 x 74HC595 8-bit shift register IC. Total shipping weight is approximately 5 grams with protective anti-static packaging.
? Application Section
The 74HC595 Shift Register IC is widely used in LED matrix displays, digital clock projects, microcontroller I/O expansion boards, relay driver circuits, and multiplexed 7-segment display interfaces.
✅ CTA Section
Get your genuine 74HC595 Shift Register IC at the best 74hc595 price in bd today from HTE Bangladesh! Order online now for fast delivery across Dhaka and all over Bangladesh.
❓ FAQ Section
Q: What is the primary function of the 74HC595 IC?
A: The 74HC595 IC is an 8-bit serial-in to parallel-out shift register used to convert serial data input from a microcontroller into 8 independent parallel outputs, effectively saving precious GPIO pins.
Q: Can I daisy chain multiple 74HC595 shift registers together?
A: Yes, multiple 74HC595 ICs can be cascaded in series by connecting the serial output (QH’) of the first IC to the serial input (DS) of the next IC, allowing you to control massive numbers of outputs using only 3 MCU pins.
Q: What is the operating voltage range of the 74HC595 shift register?
A: The 74HC595 shift register operates within a DC voltage range of 2.0 volts to 6.0 volts, making it fully compatible with both 3.3V systems (like ESP32/ESP8266) and 5V systems (like Arduino Uno).
