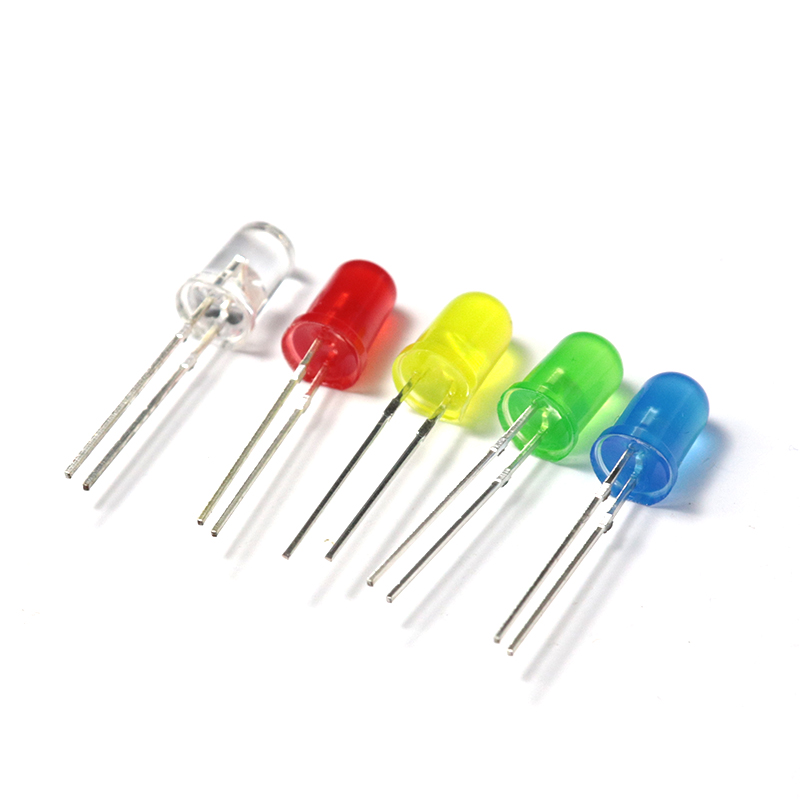

5mm Red Blue Green Yellow White Frosted LEDs5mm Red Blue Green Yellow White Frosted LEDs

5mm Defused LED Light

৳ 2.00৳ 3.00

Clear

Description

Red, Blue, Green, Yellow or White

Diffused lens LEDs bright 5mm LEDs are incredibly bright with a wide beam angle. They’re suitable for use in your projects, illuminations, car lighting, models or anywhere where you need low power, high-intensity reliable lighting or indication. They fit easily into a breadboard and will add that extra zing to your project.

Specifications:

5mm Defused Blue LED Light:
  • Color Frequency: 470nm
  • Luminous Intensity: 5,000mcd
  • Viewing Angle: Diffused Lens
  • Forward Voltage: 2.9v – 3.2v
  • Typical Voltage: 3.0v
  • Typical Forward Current: 20mA
  • Style: Round 5mm – T1 3/4
  • Lens: Frosted
5mm Defused Red LED Light
  • Color Frequency: 628nm
  • Luminous Intensity: 5,000mcd
  • Viewing Angle: Diffused Lens
  • Forward Voltage: 1.9v – 2.1v
  • Typical Voltage: 2.0v
  • Typical Forward Current: 20mA
  • Style: Round 5mm – T1 3/4
  • Lens: Froste
5mm Defused Yellow LED Light
  • Color Frequency: 590nm
  • Luminous Intensity: 3,200mcd
  • Viewing Angle: Diffused Lens
  • Forward Voltage: 1.9v – 2.1v
  • Typical Voltage: 2.0v
  • Typical Forward Current: 20mA
  • Style: Round 5mm – T1 3/4
  • Lens: Frosted
5mm Defused Green LED Light
  • Color Frequency: 525nm
  • Luminous Intensity: 23,200mcd
  • Viewing Angle: Diffused Lens
  • Forward Voltage: 2.7v – 3.0v
  • Typical Voltage: 2.8v
  • Typical Forward Current: 20mA
  • Style: Round 5mm – T1 3/4
  • Lens: Frosted
5mm Defused Warm White LED Light
  • Color Frequency: 3000K (cool White)
  • Luminous Intensity: 3,700mcd
  • Viewing Angle: Diffused Lens
  • Forward Voltage: 2.8v – 3.1v
  • Typical Voltage: 2.9v
  • Typical Forward Current: 20mA
  • Style: Round 5mm – T1 3/4
  • Lens: Frosted
5mm Defused White LED Light
  • Color Frequency: 3500K (Cool White)
  • Luminous Intensity: 3,200mcd
  • Viewing Angle: Diffused Lens
  • Forward Voltage: 2.8v – 3.1v
  • Typical Voltage: 3.0v
  • Typical Forward Current: 20mA
  • Style: Round 5mm – T1 3/4
  • Lens: Frosted

LED Series Dropping Resistor

Each light emitting diode (LED) has an optimal and maximum current which they can safely handle. Going beyond that maximum current, even briefly, may damage the LED internally without any visible signs. The damage can include reduced intensity, inconsistent power requirements, heating, or shortened useful life. Thus, limiting the current through the LED with the use of a series resistor is a necessary and straightforward practice.

The chart below lists LED models along with the supply voltages. From there, determine the value of the Series Dropping Resistor. The last column (3.3v @ 8mA) lists the dropping resistor value necessary for low-current operation (less than 8mA) for 3.3V applications (like NodeMCU logic pins).

LED DROPPING RESISTOR REFERENCE
LED
3.3V
5V
6V
9V
12V
13.8V
3.3V
~8MA
Blue
10 ohm
1/4 watt
100 ohm
1/4 watt
150 ohm
1/4 watt
300 ohm
1/4 watt
470 ohm
1/2 watt
560 ohm
1/2 watt
56 ohm
1/4 watt
Red
68 ohm
1/4 watt
160 ohm
1/4 watt
220 ohm
1/4 watt
360 ohm
1/4 watt
510 ohm
1/2 watt
620 ohm
1/2 watt
180 ohm
1/4 watt
Yellow
68 ohm
1/4 watt
160 ohm
1/4 watt
220 ohm
1/4 watt
360 ohm
1/4 watt
510 ohm
1/2 watt
620 ohm
1/2 watt
180 ohm
1/4 watt
Green
15 ohm
1/4 watt
110 ohm
1/4 watt
160 ohm
1/4 watt
330 ohm
1/4 watt
470 ohm
1/2 watt
620 ohm
1/2 watt
75 ohm
1/4 watt
White
10 ohm
1/4 watt
100 ohm
1/4 watt
150 ohm
1/4 watt
330 ohm
1/4 watt
470 ohm
1/2 watt
560 ohm
1/2 watt
56 ohm
1/4 watt

Additional information

Color

Red, Green, Blue, Yellow, White
