Description
Looking for a reliable 3s 20a bms for your DIY electronics and power projects in Bangladesh? The 3S 20A BMS 12.6V Lithium Battery Protection Board is an essential component designed to safeguard your 18650 Li-ion battery packs from overcharging, over-discharging, over-current, and short circuits. At HTE Bangladesh, we provide authentic components to ensure your custom power setups run safely and efficiently. Whether you are building a portable mini-ups, a 12V DC power bank, or upgrading a cordless drill motor, এই 12.6v lithium battery charger module টি আপনার ব্যাটারির দীর্ঘস্থায়ী সুরক্ষা নিশ্চিত করবে। Compared to basic protection circuits without recovery, this automatic-recovery 3s lipo battery bms is better suited for high-drain applications because it automatically resets the output once the fault condition is cleared.
Key Features & Benefits
- Continuous Discharge Current: Delivers up to 20A continuous working current, ideal for high-drain devices like 3s 18650 bms for drill motors.
- Overcharge & Over-discharge Protection: Prevents cell damage by cutting off power when voltage exceeds upper limits or drops below safe thresholds.
- Short Circuit Protection: Built-in recovery mechanism automatically restores output after a short circuit is removed.
- Balanced Charging Support: Ensures equal charge distribution across all 3 cells, maximizing overall battery pack lifespan.
Technical Specifications
| Specification | Details |
|---|---|

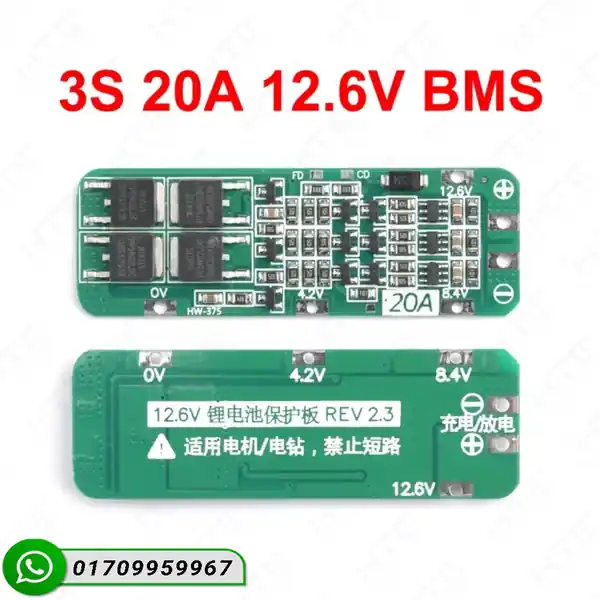

| Product Name | 3S 20A BMS 12.6V Lithium Battery Protection Board |
| Charging Voltage | 12.6V – 13.0V DC |
| Continuous Discharge Current | 20A max (if cooling environment is poor, please reduce the load current) |
| Continuous Charge Current | 10A max |
| Overcharge Detection Voltage | 4.25V ± 0.05V per cell |
| Over-discharge Detection Voltage | 2.54V ± 0.1V per cell |
| Board Dimensions | 59mm x 20mm x 3.4mm |
| Compatible Battery Types | 18650 Li-ion, Lithium Polymer (LiPo), 3.7V nominal cells |
Additional Information
- Package Includes: 1 x 3S 20A BMS 12.6V Lithium Battery Protection Board
- Weight: 10 grams
- Dimensions: 6cm x 2cm x 0.5cm
Target Applications
This 3 cell li-ion protection pcb circuit is widely used in:
- Cordless drill motors and electric screwdrivers
- 12V CCTV backup power supplies and mini UPS units
- DIY 18650 lithium battery packs and power banks
- Solar street light battery management systems
Order Online from HTE Bangladesh
Get the best 3s battery protection board 20a at an affordable price in Bangladesh. Order now from HTE Bangladesh (www.htebd.com) এবং আপনার প্রজেক্টকে করুন আরও নিরাপদ ও শক্তিশালী। We ensure fast delivery across Dhaka and all over BD!
Frequently Asked Questions
- Q1: What is the exact operating voltage of the 3S 20A BMS?
- The 3S 20A BMS operates at a nominal voltage of 11.1V (3 cells in series) and a maximum charging voltage of 12.6V.
- Q2: Can I use this 3S 20A BMS for a cordless drill motor?
- Yes, this BMS is specifically designed to handle high continuous discharge currents up to 20A, making it ideal for 3s 18650 bms applications in drill motors and electric screwdrivers.
- Q3: Where can I buy this 3S 20A BMS in Bangladesh?
- You can purchase the original 3S 20A BMS 12.6V Lithium Battery Protection Board directly from HTE Bangladesh (www.htebd.com) with guaranteed delivery across the country.
