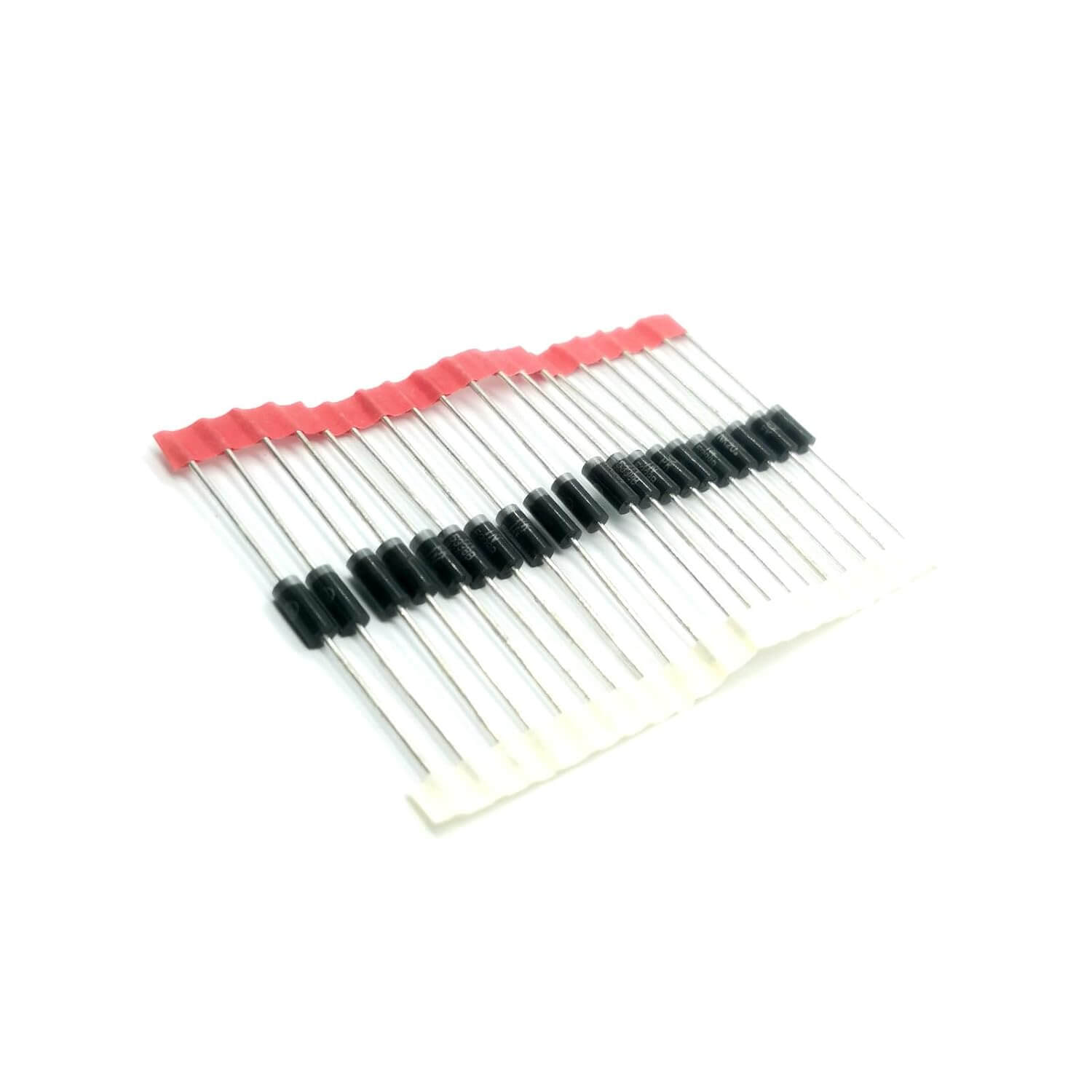

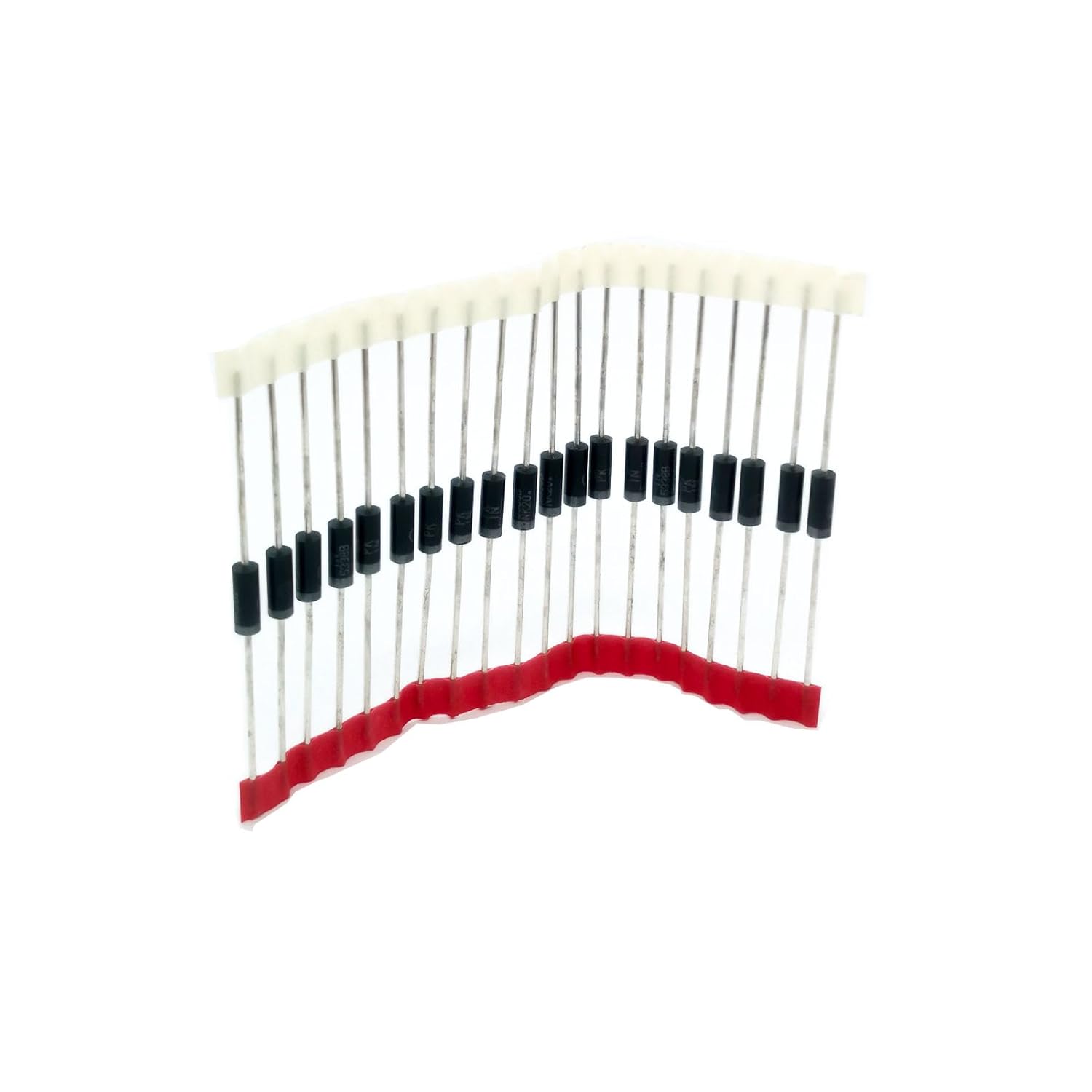

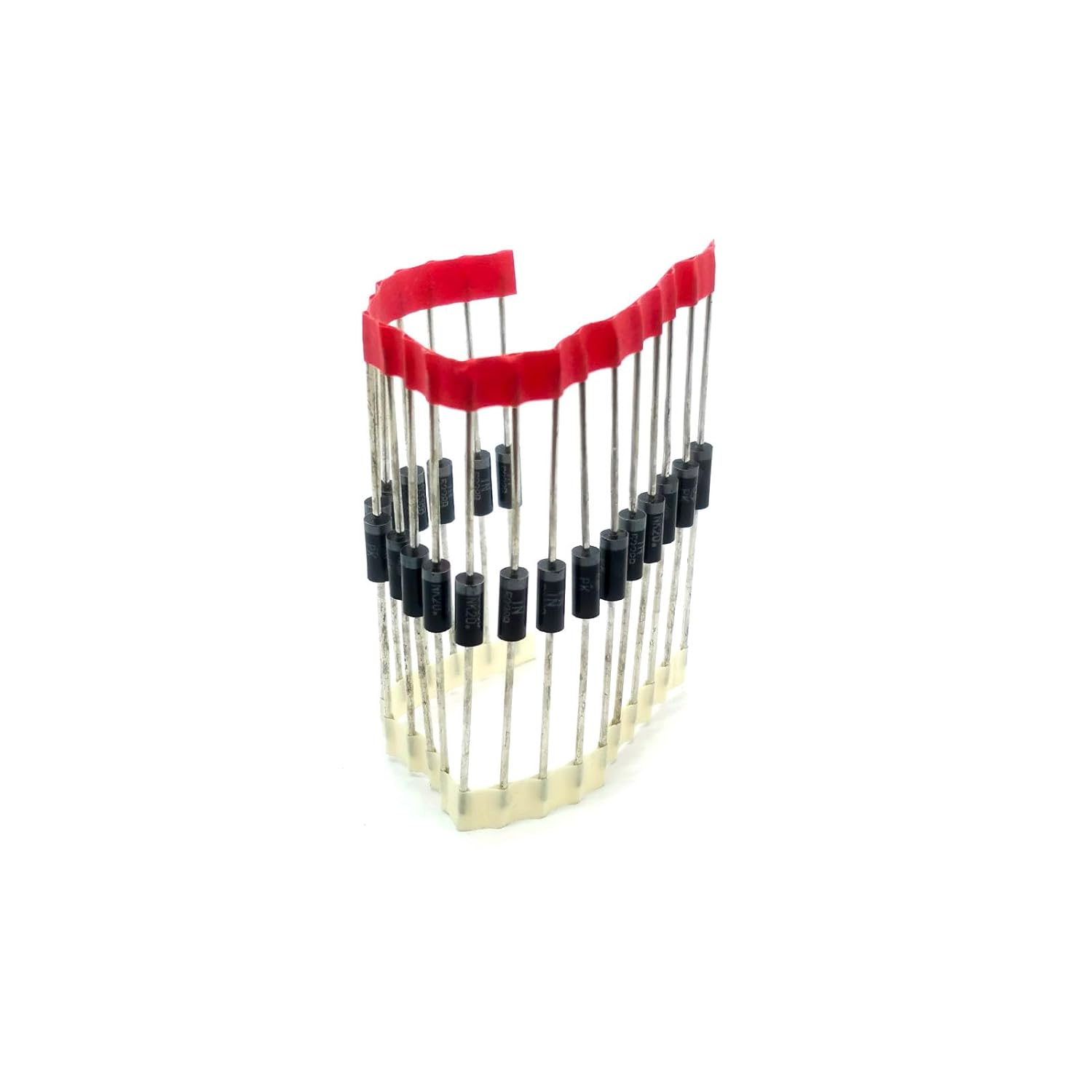

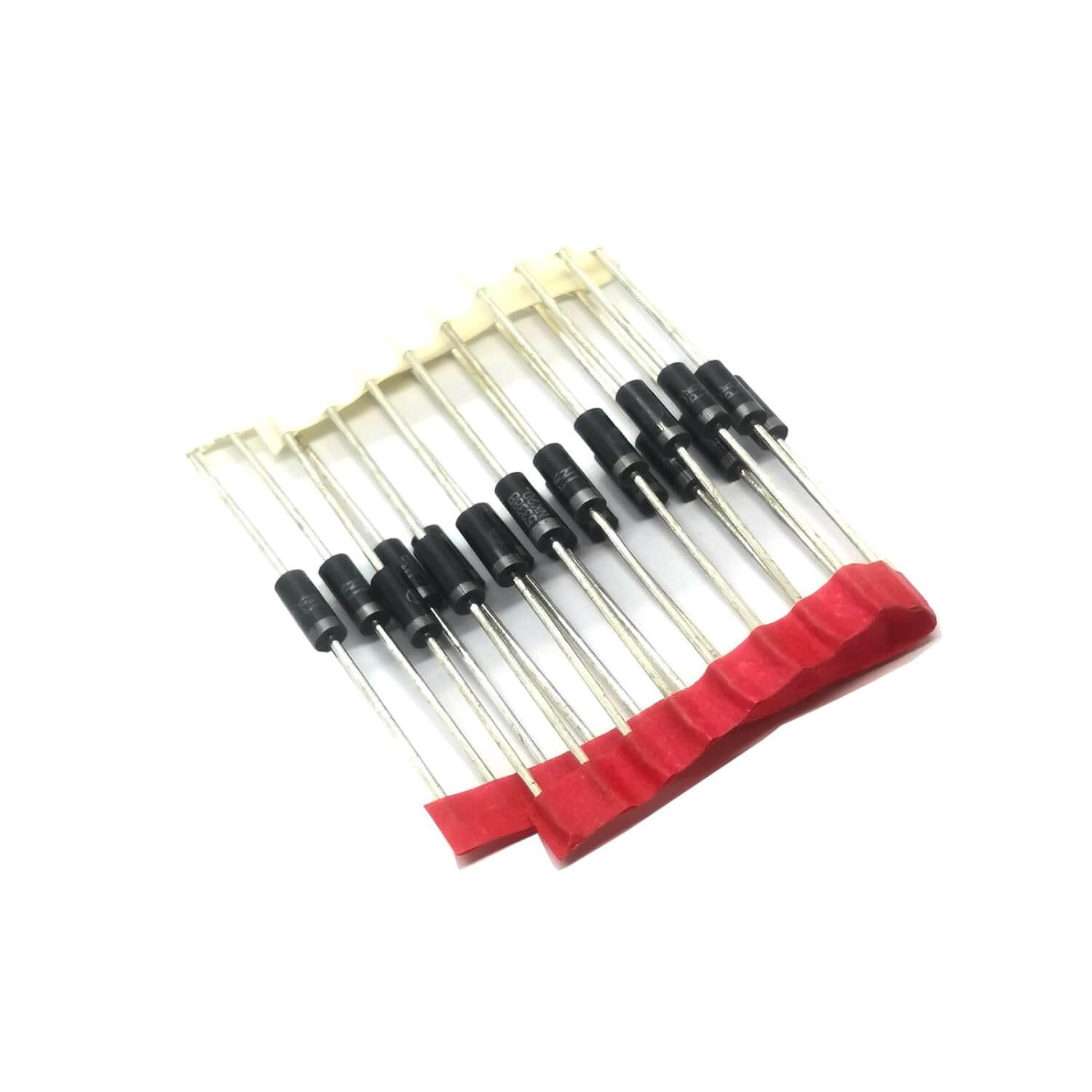

1N5338B 5.1V 5W Zener Diode – Reliable High-Power Voltage Regulator
- Introduction to 1N5338B 5.1V 5W Zener Diode
- Features and Specifications
- Applications of the 1N5338B Zener Diode
- Benefits of Using the 1N5338B Zener Diode
- How to Use the 1N5338B Zener Diode
- Why Choose 1N5338B 5.1V 5W Zener Diode?
- FAQs About the 1N5338B Zener Diode
- Conclusion
Introduction to 1N5338B 5.1V 5W Zener Diode
The 1N5338B 5.1V 5W Zener Diode is a robust and reliable electronic component designed to regulate voltage efficiently. This high-power diode offers a nominal Zener voltage of 5.1V and a power dissipation rating of 5W, making it an ideal choice for voltage regulation in a variety of electronic circuits.
Features and Specifications
The 1N5338B 5.1V 5W Zener Diode boasts impressive specifications that make it suitable for demanding applications:
- Nominal Zener Voltage (Vz): 5.1V
- Power Dissipation (Ptot): 5W
- Maximum Regulator Current (Izm): 0.930A
- Reverse Leakage Current (Ir): 1µA (max)
- Compact Design: Easy to integrate into various circuits.
This diode is a perfect choice for engineers and hobbyists looking for consistent performance.
Applications of the 1N5338B Zener Diode
The 1N5338B 5.1V 5W Zener Diode is used in a wide range of applications, including:
- Voltage Regulation: Maintains stable voltage levels in electronic circuits.
- Power Supplies: Ensures efficient power regulation in AC-DC and DC-DC converters.
- Overvoltage Protection: Safeguards sensitive electronic components from voltage surges.
- Signal Conditioning: Used in amplifiers and signal processing circuits.
- Industrial Applications: Essential for high-power industrial control systems.
Benefits of Using the 1N5338B Zener Diode
Here are some reasons why the 1N5338B 5.1V 5W Zener Diode stands out:
- High Power Rating: With 5W dissipation, it handles higher power loads effectively.
- Reliable Voltage Regulation: Ensures circuit stability and prevents voltage fluctuations.
- Durable Build: Designed for long-term use, even in challenging conditions.
- Compact Size: Fits easily into most circuit designs.
- Low Leakage Current: Minimizes power loss, ensuring energy efficiency.
How to Use the 1N5338B Zener Diode
Using the 1N5338B 5.1V 5W Zener Diode is straightforward:
- Connect Properly: Attach the cathode to the positive side of the circuit and the anode to the negative side.
- Use in Series with Resistors: To limit current, place a resistor in series with the diode.
- Voltage Regulation: Place the diode in reverse bias to stabilize the output voltage.
For detailed technical guidance, refer to resources like ON Semiconductor’s Zener Diode Application Guide (DoFollow link).
Why Choose 1N5338B 5.1V 5W Zener Diode?
The 1N5338B Zener Diode is trusted for its performance and reliability. Whether you’re working on a personal project or industrial design, this diode ensures optimal voltage regulation. Its low reverse leakage and high power dissipation make it superior to many alternatives in the market.
FAQs About the 1N5338B Zener Diode
1. What is the maximum power dissipation of the 1N5338B Zener Diode?
The maximum power dissipation is 5W, making it suitable for high-power applications.
2. Can this diode protect against voltage surges?
Yes, the 1N5338B is designed to provide overvoltage protection, safeguarding sensitive components.
3. Where can I purchase the 1N5338B Zener Diode?
You can purchase it directly from our online store or other reputable electronic component suppliers.
Conclusion
The 1N5338B 5.1V 5W Zener Diode is an essential component for efficient voltage regulation, power supply stabilization, and circuit protection. Its robust design, combined with impressive specifications, makes it a go-to choice for professionals and hobbyists alike.
Don’t miss out on adding this high-power Zener diode to your electronic toolkit. Order now and experience superior voltage regulation for your projects!
