Description
Looking for the authentic 10A10 Rectifier Diode Price in Bangladesh? HTE Bangladesh-এ আপনি পাচ্ছেন genuine industrial-grade 10A10 Silicon Rectifier Diode যা power rectification সার্কিটে চমৎকার সার্ভিস নিশ্চিত করে। Whether you are a student, hobbyist, or design engineer, this heavy-duty diode offers stable performance for robust power delivery systems.
Why Choose 10A10 Silicon Rectifier Diode?

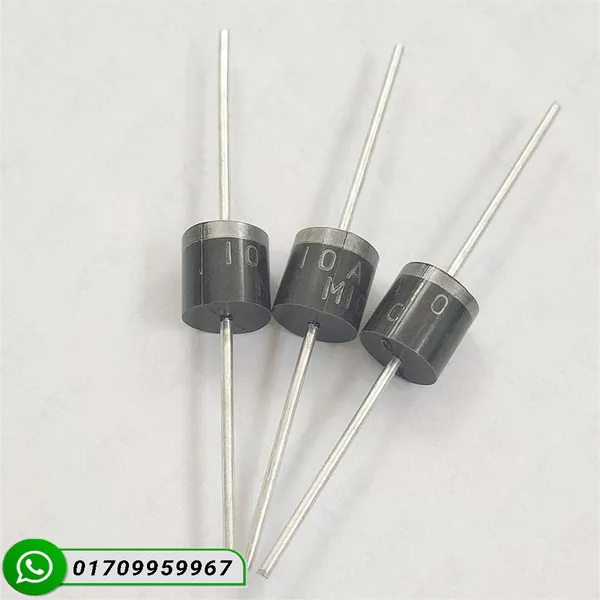

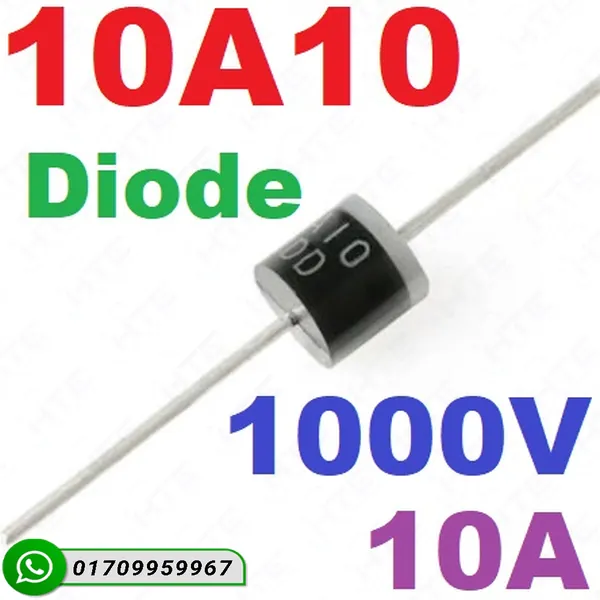

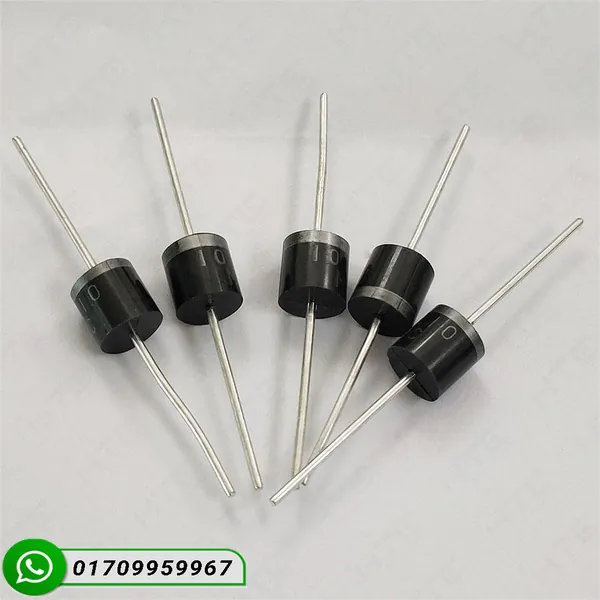

The 10A10 standard silicon rectifier diode is engineered for applications requiring high-current performance combined with high-voltage ruggedness. এটি সর্বোচ্চ 1000V Repetitive Peak Reverse Voltage এবং 10A continuous current নিরাপদে হ্যান্ডেল করতে সক্ষম। Featuring a durable R-6 molded plastic package and a highly conductive axial through-hole lead design, it resists extreme thermal and electrical stress easily, rendering standard small-signal diodes obsolete in high-load scenarios.
Key Features & Benefits
- High Peak Surge Current: Protects your sensitive microcontrollers and circuits from sudden high-amperage spikes.
- Low Reverse Leakage: Minimizes standby power loss and enhances the overall efficiency of your circuit.
- Durable Construction: Features high-temperature soldering guarantees and robust flame-retardant molded casing.
- Easy Polarity Detection: Clearly marked silver band on the cathode terminal avoids installation errors during prototyping.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Part Number | 10A10 |
| Diode Type | Standard Silicon Rectifier |
| Maximum Average Forward Current | 10A |
| Max Repetitive Peak Reverse Voltage | 1000V |
| Maximum RMS Voltage | 700V |
| Max DC Blocking Voltage | 1000V |
| Forward Voltage Drop | 1.0V to 1.1V @ 10A |
| Mounting Style | Through-hole (Axial Lead) |
| Package / Case | R-6 |
Common Applications
- AC-to-DC mains rectification & full-bridge rectifier circuits
- High-current battery chargers and solar solar panel arrays protection
- High-power step-down/step-up power supplies, IPS, and UPS systems
- Industrial equipment controls, inverters, and DIY hobbyist electronics projects
Additional Specifications
- Approximate Weight: 2.1g
- Package Includes: 1 x 10A10 Silicon Rectifier Diode
Order 10A10 Diode Online in Bangladesh!
আপনার সার্কিটের দীর্ঘস্থায়ী সুরক্ষায় HTE Bangladesh থেকে অরিজিনাল 10A10 diode কিনুন সবচেয়ে সাশ্রয়ী দামে। Fast home delivery and reliable customer service are guaranteed all over BD!
Frequently Asked Questions
Q1: What is the current and voltage rating of the 10A10 Diode?
A1: The 10A10 diode is rated for a maximum continuous forward current of 10 Amperes (10A) and a peak repetitive reverse voltage of 1000 Volts (1000V).
Q2: Can I use this diode for bridge rectification?
A2: Yes! By combining 4 pieces of the 10A10 diode, you can easily build a heavy-duty single-phase bridge rectifier capable of handling high-power DC conversions.
Q3: Is the 10A10 diode safe for battery chargers and solar systems?
A3: Absolute! এটি সোলার প্যানেলে রিভার্স কারেন্ট ব্লক করতে এবং হাই-কারেন্ট ব্যাটারি চার্জার তৈরিতে অত্যন্ত জনপ্রিয় ও নিরাপদ।
