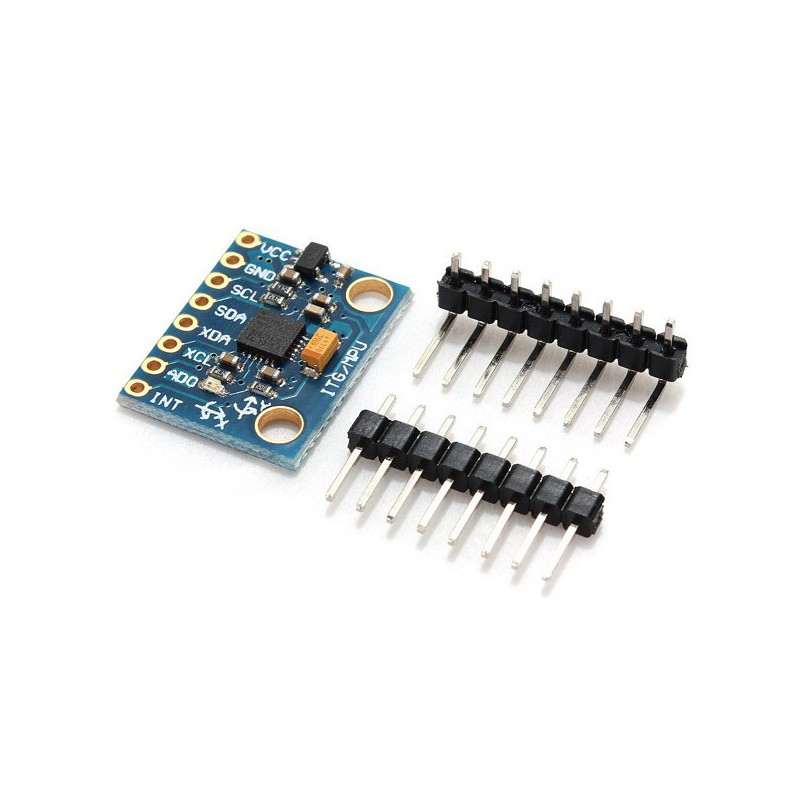

6DOF MPU 6050 3 Axis Gyro

Description

Features :
Chip built-in 16bit AD converter, 16-bit data output.
I2C Digital-output of 6 or 9-axis MotionFusion data in rotation matrix, quaternion, Euler Angle, or raw data format.
Selectable Solder Jumpers on CLK, FSYNC, and AD0.
Digital Motion Processing™ (DMP™) engine offloads complex MotionFusion, sensor timing synchronization, and gesture detection.
Embedded algorithms for run-time bias and compass calibration. No user intervention is required.
Digital-output temperature sensor.

General Specification
Driver IC
MPU-6050
Operating Voltage (VDC)
3 ~ 5
Communication
I2C Protocol
Gyro range(°/s)
± 250, 500, 1000, 2000
Acceleration range(g)
± 2 ± 4 ± 8 ± 16
Length (mm)
20
Width (mm)
16
Shipment Weight
0.01 kg
Shipment Dimensions
3 × 2 × 1 cm

Package Includes:
1 x 6DOF MPU 6050 3 Axis Gyro
